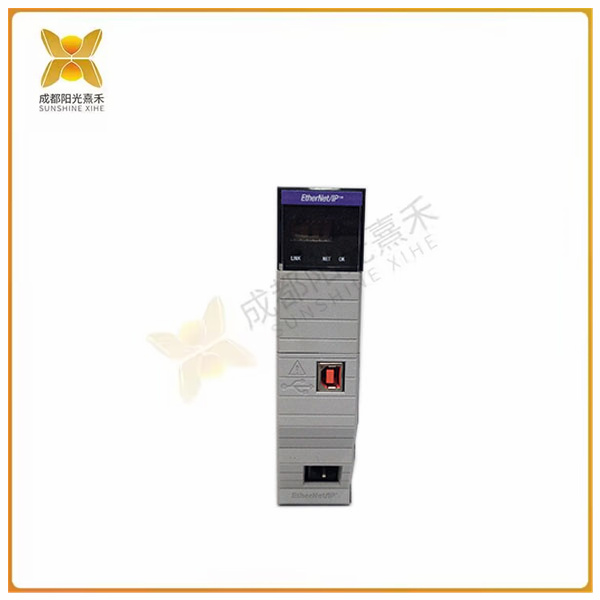

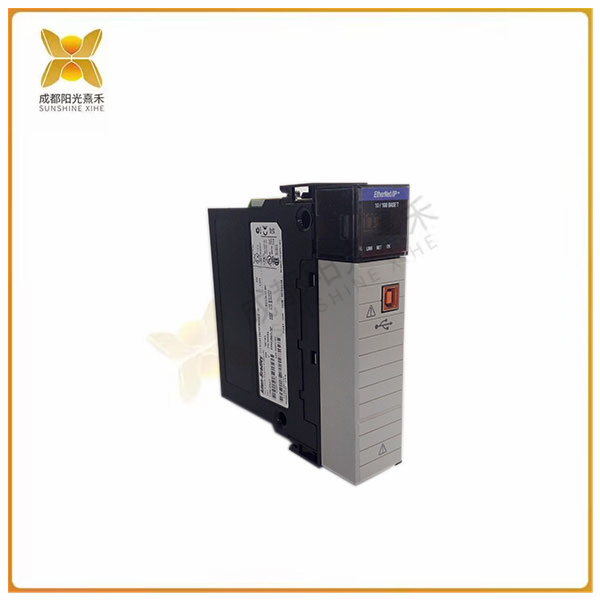

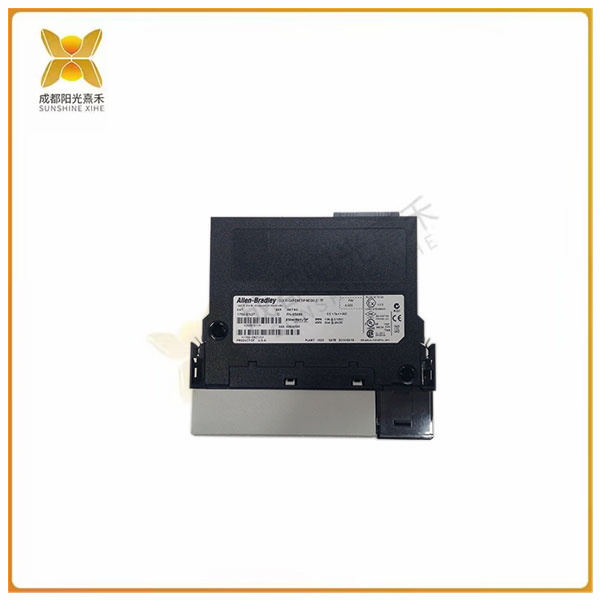

>>>>>型號:1756-EN2T 通信模塊系列 接口通信模塊

【功能描述】

Allen-Bradley 1756-EN2T 是 ControlLogix 通信模塊系列的一部分。它是一種EtherNet/IP（以太網工業協議）接口通信模塊。它支持常規消息傳遞、實時 I/O 消息傳遞以及實時控制、時間同步和運動等應用程序的信息交換。1756-EN2T 還具有 CIP 安全標準，允許同時傳輸安全和控制數據以及診斷信息。它使用先進的通信芯片和物理介質。

1756-EN2T 支持 10 至 100 Mbps 的 EtherNet/IP 通信速率，并使用雙絞線銅介質。它支持 256 個 Logix 和 128 個 TCP/IP 通信連接。它最多可以支持 8 個軸，用于以太網/IP 網絡上的集成運動，并在 5.1 伏直流電下消耗 1 A 電流。它的最大功耗為 5.1 瓦，散熱為 17.4 BTU/小時。它可以安裝在 ControlLogix 機箱的任何插槽中。在接線方面，它使用非屏蔽 RJ45 5 類雙絞線電纜連接器與控制器連接。要運行 EtherNet/IP 網絡，必須定義 IP 地址、子網掩碼、網關等參數。1756-EN2T 橋接器具有多種功能，例如為消息傳遞、分布式 I/O 和標記提供支持。它將消息封裝在標準 TCP/IP 協議中。ControlNet 和 DeviceNet 網絡協議允許它共享一個通用的應用層。它不需要任何調度或路由表來存儲信息。其他功能包括保護模式、電子鍵控、設備級環形網絡和并行冗余協議網絡支持。

帶光接口 不

TCP/IP 的支持協議 是的

DeviceNet的支持協議 不

支持其他總線系統的協議 不

冗余 不

 >>>>>型號:1756-EN2T 通信模塊系列 接口通信模塊

【英文介紹】

The Allen-Bradley 1756-EN2T is part of the ControlLogix family of communication modules. It is an EtherNet/IP (Ethernet Industrial Protocol) interface communication module. It supports regular messaging, real-time I/O messaging, and information exchange for applications such as real-time control, time synchronization, and motion. The 1756-EN2T also features the CIP security standard, which allows for the simultaneous transmission of security and control data as well as diagnostic information. It uses advanced communication chips and physical media.

The 1756-EN2T supports EtherNet/IP communication rates from 10 to 100 Mbps and uses twisted-pair copper media. It supports 256 Logix and 128 TCP/IP communication connections. It can support up to eight axes for integrated motion over Ethernet /IP networks and consumes 1 A current at 5.1 volts DC. It has a maximum power consumption of 5.1 watts and a heat dissipation of 17.4 BTU/ hour. It can be installed in any slot in the ControlLogix chassis. In terms of wiring, it uses an unshielded RJ45 Class 5 twisted pair cable connector to connect to the controller. To run an EtherNet/IP network, you must define parameters such as IP address, subnet mask, gateway, and so on. The 1756-EN2T bridge has a variety of functions, such as support for messaging, distributed I/O, and markup. It encapsulates the message in the standard TCP/IP protocol. The ControlNet and DeviceNet network protocols allow it to share a common application layer. It does not require any scheduling or routing tables to store information. Additional features include protected mode, electronic keying, device-level ring networking, and parallel redundancy protocol networking support.

With optical interface No

TCP/IP support protocol Yes

DeviceNet's support protocol is not

Protocols that support other bus systems do not

Redundant not

The primary station of the IO link does not

DeviceNet Safety's support protocol is not

EtherNet/IP support protocol Yes

Power consumption 5.1 watts

Heat dissipation 17.4 BTU/ hour

Cabinet Type Rating None (open)

Ethernet port 1 Ethernet RJ45 Category 5

CIP Unconnected Message 128 + 128 (Backplane + Ethernet)

Current consumption is 1 A@ 5.1V DC, 3 mA@ 24V DC

The Ethernet cable complies with the 802.3 shielded or unshielded twisted pair standard

Cable Type 2 - Ethernet port, 3 - USB port

Communication rate 10/100 Mbps

Number of connections supported, Max TCP: 128, CIP: 256 (CIP connections can be used for all explicit or all implicit applications. For example, the 1756-ENBT module has a total of 128 CIP connections and can be used for any combination of connections.

Isolation voltage 30V (continuous), basic insulation type, Ethernet to backplane, USB to backplane and USB to Ethernet (only for the following modules/series: 1756-EN2T/D, 1756-EN2TR/C, 1756-EN3TR/B), type tested for 60 seconds at 980V AC
