>>>>>型號:1762-OW16 繼電器輸出模塊  兼容用于電氣負載

【功能描述】

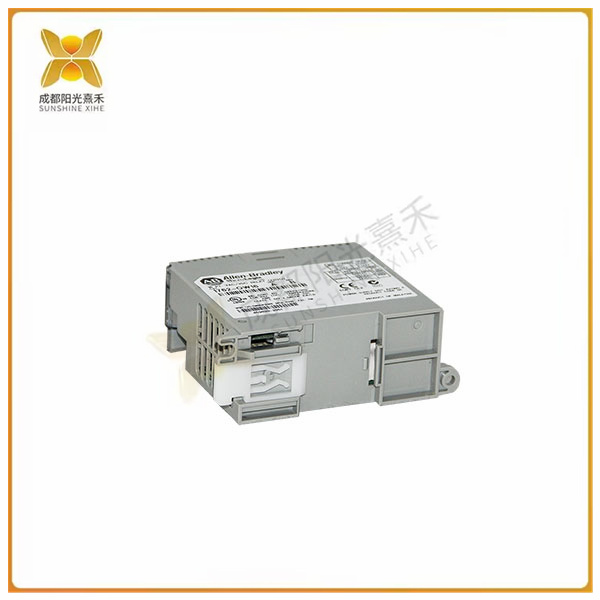

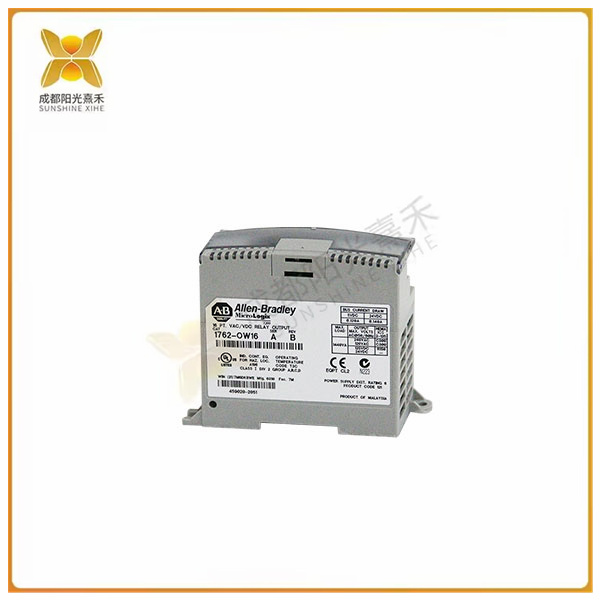

1762-OW16是一款MicroLogix繼電器輸出擴展模塊。該模塊用于增強MicroLogix 1100、1200和1400可編程邏輯控制器（PLC）的輸出能力。它兼容用于電氣負載的通電和斷電。

該模塊具有十六（16）個繼電器觸點輸出，可在24-125VDC和120-240 VAC電壓范圍內運行。對于ON到OFF和OFF到ON的轉換，每個輸出通道的信號延遲時間為10 ms。模塊每個點的額定連續電流為2.5 A，每個公共端的連續電流為8A，每個模塊的連續電流為16A。1762-OW16有兩（2）個輸出組，每個組由八（8）個通道組成。第0組由輸出0-7組成，而第1組由輸出8-15組成。

建議將浪涌抑制器安裝在感性負載上。這種浪涌抑制器可以為感性負載的高浪涌電流提供保護，從而有助于延長模塊的使用壽命。

當與MixroLogix 1100控制器一起使用時，最多可以安裝此模塊的四（4）個實例。如果與MicroLogix 1200一起使用，則最多支持六（6）個模塊，而與MicroLogix 1500一起使用時允許七（7）個模塊。

該模塊的物理尺寸為90 x 40.4 x 87毫米（3.54 x 1.59 x 3.43英寸）包括安裝片在內的高度為110毫米（4.33英寸）。安裝取決于基本控制器。作為MicroLogix 1100/1200和1400控制器的標準配置，該模塊支持直接面板安裝的DIN導軌。

 >>>>>型號:1762-OW16 繼電器輸出模塊  兼容用于電氣負載

【英文介紹】

The 1762-OW16 is a MicroLogix relay output expansion module. This module is used to enhance the output capabilities of MicroLogix 1100, 1200 and 1400 programmable logic controllers (PLCS). It is compatible for powering on and off electrical loads.

The module has sixteen (16) relay contact outputs and operates in the 24-125VDC and 120-240 VAC voltage ranges. For ON-to-OFF and off-to-on conversions, the signal delay time for each output channel is 10 ms. The continuous current rating of each point of the module is 2.5 A, the continuous current of each common end is 8A, and the continuous current of each module is 16A. The 1762-OW16 has two (2) output groups, each consisting of eight (8) channels. Group 0 consists of outputs 0-7, while group 1 consists of outputs 8-15.

It is recommended to install the surge suppressor on the inductive load. This surge suppressor provides protection against the high surge current of inductive loads, thereby helping to extend the service life of the module.

When used with the MixroLogix 1100 controller, up to four (4) instances of this module can be installed. Up to six (6) modules are supported if used with the MicroLogix 1200, while seven (7) modules are allowed when used with the MicroLogix 1500.

The module has a physical dimension of 90 x 40.4 x 87 mm (3.54 x 1.59 x 3.43 inches) and a height of 110 mm (4.33 inches) including mounting pieces. Installation depends on the base controller. As standard with the MicroLogix 1100/1200 and 1400 controllers, the module supports DIN rails for direct panel mounting.
