>>>>>型號:2711-K6C5 操作終端 提供實時監控和過程接口
【功能描述】
目錄號為2711-K6C5的PanelView Standard操作終端是Allen-Bradley的PanelView 600可視化組件。該操作終端更廣為人知的是人機界面（HMI），其主要目的是通過嵌入在HMI中的功能組合為過程操作員提供實時監控和過程接口。

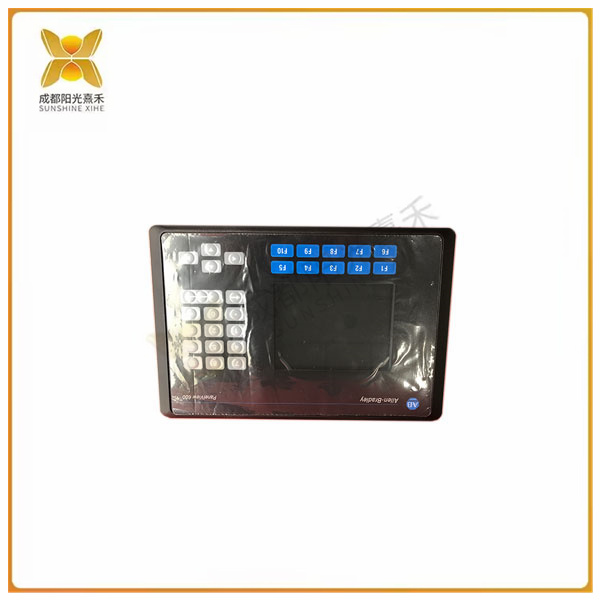

過程可視化是通過5英寸彩色圖形顯示器實現的，其中可以實現帶有顏色編碼信息的動畫。這款彩色屏幕的功能顯示區域?yàn)?15 x 86毫米（4.54 x 3.4英寸）。屏幕分辨率為320 x 234像素。屏幕與內部背光配對，可現場更換，預計運行時間可達50,000小時。操作員控制和界面由嵌入式鍵盤提供，該鍵盤由十（10）個功能鍵、導航鍵和數字鍵組成。
每個鍵都執行單獨的功能，功能鍵能夠接受本地和全局分配。這些鍵預計最多可執行100萬次操作，并可與功能鍵圖例插入一起安裝。
2711-K6C5具有DH485通信端口，與Allen-Bradley的不同可編程邏輯控制器（PLC）產品兼容，例如SLC 500、MicroLogix、CompactLogix和ControlLogix處理器。它還與第三方控制器和設備兼容，以實現過程可視化和集中監控。
2711-K6C5是小型機器和工藝的理想選擇。它具有內置的0 240KB非易失性存儲器和190KB運行時應用程序存儲器。它的額定電源輸入范圍為85-264V AC，頻率為47-63 Hz。這款PV 600具有鮮艷的5英寸。
彩色顯示。用戶能夠使用鍵盤控制HMI輸入信息和數據。
>>>>>型號:2711-K6C5 操作終端 提供實時監控和過程接口
【英文介紹】
The PanelView Standard Operating terminal, catalog number 2711-K6C5, is Allen-Bradley's PanelView 600 visual component. Better known as the Human Machine Interface (HMI), the main purpose of this operating terminal is to provide process operators with real-time monitoring and process interfaces through a combination of functions embedded in the HMI.
Process visualization is achieved through a 5-inch color graphic display where animations with color-coded information can be implemented. The color screen has a functional display area of 115 x 86 mm (4.54 x 3.4 inches). The screen resolution is 320 x 234 pixels. The screen is paired with an internal backlight and can be replaced on site, with an estimated operating time of up to 50,000 hours. Operator control and interface are provided by an embedded keyboard consisting of ten (10) function keys, navigation keys, and number keys.
Each key performs a separate function, and function keys are capable of accepting both local and global assignments. These keys are expected to perform up to 1 million operations and can be installed with function key legend inserts.
The 2711-K6C5 has a DH485 communication port and is compatible with different programmable logic controller (PLC) products from Allen-Bradley, such as the SLC 500, MicroLogix, CompactLogix, and ControlLogix processors. It is also compatible with third-party controllers and devices for process visualization and centralized monitoring.
The 2711-K6C5 is ideal for small machines and processes. It has built-in 0 240KB of non-volatile memory and 190KB of runtime application memory. It has a rated power input range of 85-264V AC and a frequency of 47-63 Hz. This PV 600 has a vivid 5-inch.
Display in color. Users can use the keyboard to control HMI input information and data.
