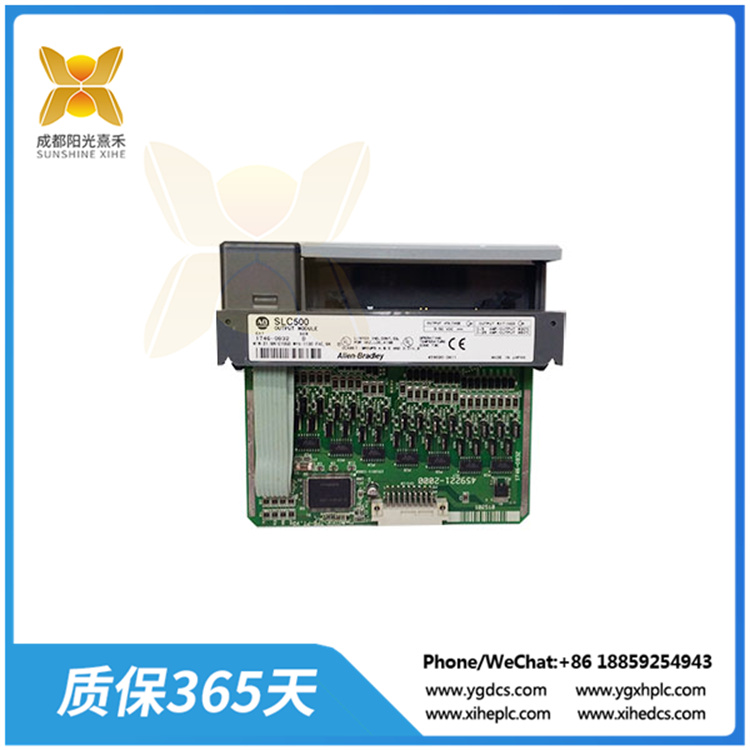

>>>型號:1746-OB32 32通道數字輸出模塊 高密度低電流直流輸出模塊

【功能描述】

1746-OB32是一款32通道數字輸出模塊，屬于SLC 500系列。它是一款高密度低電流直流輸出模塊，可以兼容安裝在1746機箱的任何可用插槽中，但插槽0除外。

1746-OB32模塊提供的電壓輸出為24V DC，具有32個輸出，每個公共端有16個點。其源極工作電壓范圍為5至50V DC，且在0V DC下消耗19.5A的背板電流。

1746-OB32在性能方面，1746-OB32模塊在ON模式下最大信號延遲時間為0.1ms，OFF模式下最大信號延遲時間為1ms。在OFF狀態下，最大電路電流泄漏為1mA。此外，當溫度在0-25攝氏度時，

每個輸出點的標稱電流為0.60A，每個輸出通道的最小電流負載為1mA。

1746-OB32支持多種輸出類型，如直流（DC）輸出或交流（AC）輸出，以滿足不同應用需求。此外，該模塊可以與Allen-Bradley的編程軟件（如RSLogix 500）結合使用，用戶可以根據需要編寫

邏輯程序來控制輸出信號的狀態和行為。

>>>>型號:1746-OB32 32通道數字輸出模塊 高密度低電流直流輸出模塊

【英文介紹】

The 1746-OB32 is a 32-channel digital output module belonging to the SLC 500 series. It is a high density low current DC output module that is compatible to be installed in any available slot in the 1746 chassis, except slot 0.

The 1746-OB32 module provides a voltage output of 24V DC with 32 outputs with 16 points at each common end. Its source operating voltage ranges from 5 to 50V DC and consumes 19.5A backplane current at 0V DC.

In terms of performance, the 1746-OB32 module has a maximum signal delay time of 0.1ms in ON mode and 1ms in OFF mode. In the OFF state, the maximum circuit current leakage is 1mA. In addition, when the temperature

 is 0-25 degrees Celsius, the nominal current of each output point is 0.60A, and the minimum current load of each output channel is 1mA.

The 1746-OB32 supports multiple output types, such as direct current (DC) output or alternating current (AC) output, to meet different application requirements. In addition, the module can be used in conjunction with Allen-

Bradley's programming software, such as RSLogix 500, so that users can write logic programs as needed to control the state and behavior of the output signal.
