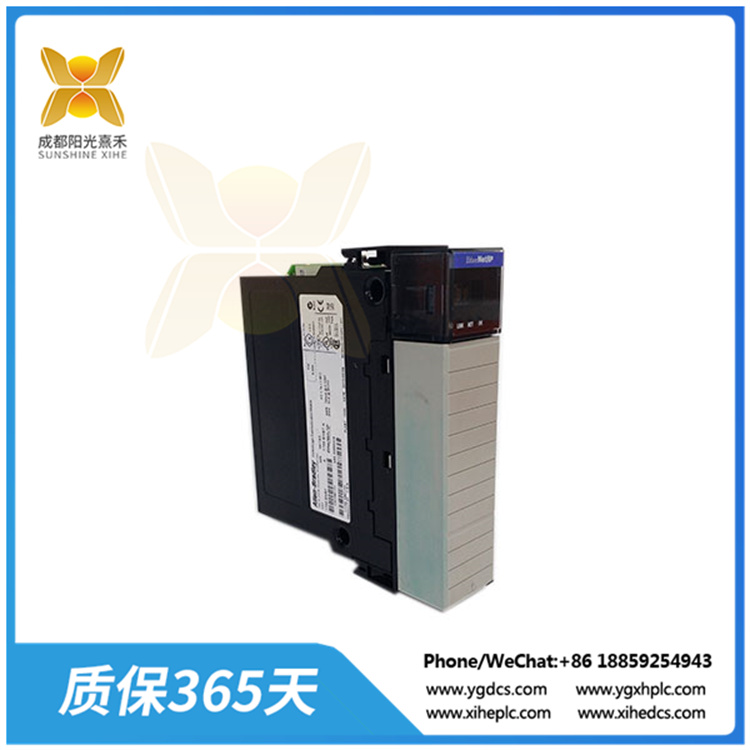

>>>型號:1756-0F4 四通道模擬輸出模塊 廣泛應用于工業控制 具有良好的散熱性能

【功能描述】

1756-0F4 是一個四通道模擬輸出模塊。該模塊專為工業自動化應用而設計，可以提供高性能的模擬信號輸出功能。

1756-0F4該模塊具有四個單端輸出，輸出電壓范圍在0至10伏之間，輸出電流范圍可以達到0至20毫安。其分辨率高達15位單極性/雙極性，確保輸出信號的精確性。在特定電壓（如5.1伏）下的汲取電流為120mA，顯示出其高效的能源使用特性。

1756-0F4模塊還具有良好的散熱性能，其散熱額定值為2.86瓦，可以確保模塊在高負荷運行時的穩定性。同時，它支持3.8毫秒中斷的轉換率，以及2.9毫秒的階躍響應額定值，保證了快速而準確的響應能力。

在負載能力方面，1756-0F4模塊表現出色。其電阻負載范圍從0至600歐姆電流或1千歐姆，甚至更高電壓的負載也能輕松應對。對于感性負載，它支持0.1mH的電流負載和1.0F的電壓負載，顯示出廣泛的適應性。

精度方面，該模塊在25攝氏度時的滿量程精度裕量為0.5%，輸出紋波在0至50千赫范圍內為+/-0.05%，保證了輸出的精確性和穩定性。

總的來說，1756-0F4模塊憑借其高性能、精確的輸出、快速響應以及廣泛的負載能力，成為工業自動化領域中的一款重要組件，廣泛應用于各種需要精確模擬信號輸出的控制系統中。

>>>>型號:1756-0F4 四通道模擬輸出模塊 廣泛應用于工業控制 具有良好的散熱性能

【英文介紹】

The 1756-0F4 is a four-channel analog output module. The module is designed for industrial automation applications and can provide high performance analog signal output.

1756-0F4 The module has four single-ended outputs with an output voltage range of 0 to 10 volts and an output current range of 0 to 20 mA. Its resolution is up to 15 bits unipolar/bipolar, ensuring the accuracy

of the output signal. The draw current at a specific voltage (e.g. 5.1 volts) is 120mA, demonstrating its efficient energy use.

The 1756-0F4 module also has good heat dissipation performance, with a heat dissipation rating of 2.86 watts, which ensures the stability of the module during high load operation. At the same time, it supports a

conversion rate of 3.8 ms interrupts and a step response rating of 2.9 ms, guaranteeing fast and accurate response capabilities.

In terms of load capacity, the 1756-0F4 module performs well. Its resistive loads range from 0 to 600 ohms of current or 1000 ohms, and even higher voltage loads can be easily handled. For inductive loads, it supports

 current loads of 0.1mH and voltage loads of 1.0F, showing a wide range of adaptability.

In terms of accuracy, the module has a full scale accuracy margin of 0.5% at 25 degrees Celsius, and the output ripple is +/-0.05% in the range of 0 to 50 KHZ, ensuring the accuracy and stability of the output.

Overall, the 1756-0F4 module, with its high performance, accurate output, fast response and wide load capacity, has become an important component in the field of industrial automation, which is widely used in a

 variety of control systems requiring accurate analog signal output.
