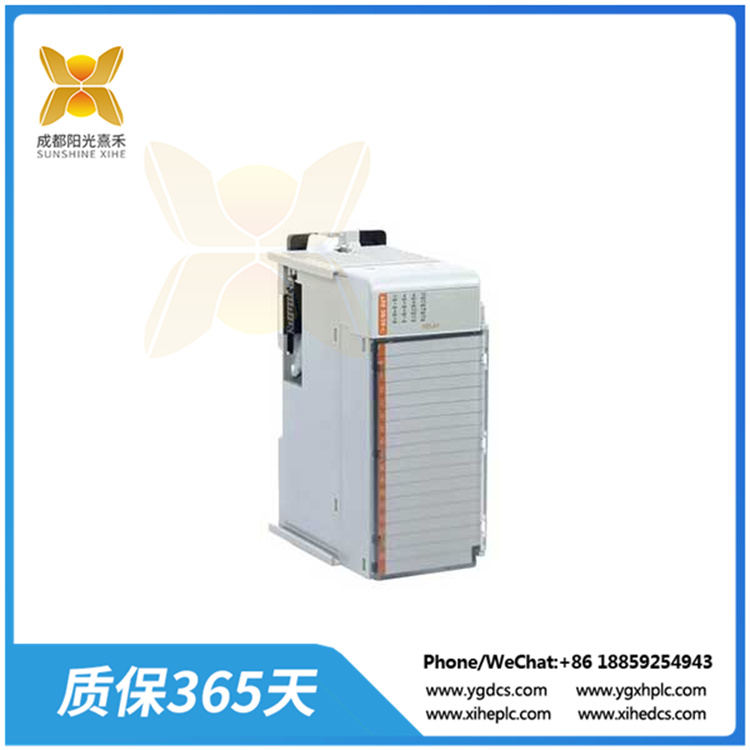

>>>型號:1769-OG16 數字量直流輸出模塊 具有診斷和可配置功能

【功能描述】

1769-OG16是一款直流5伏、TTL數字量直流輸出模塊，屬于CompactLogix系列。它主要用于工業自動化控制系統，負責處理數字信號和控制邏輯。

1769-OG16該模塊具有16點輸出，電壓范圍在直流4.5伏到5.5伏之間，能夠穩定、可靠地運行在各種工業環境中。由于其模塊化設計，用戶可以獨立選擇I/O、端子類型和網絡接口，安裝和維護都非常方便。

此外，該模塊還具有診斷和可配置功能，使得其在應用中易于集成和調試。

在操作流程方面，1769-OG16模塊滿足多種安裝要求，并且具有多功能性。它支持SET和RST指令，這些指令可以用于控制目標元件的復位和清零狀態。同時，微分指令（PLS/PLF）使得該模塊能夠在輸入信

號的上升沿或下降沿產生一個掃描周期的脈沖輸出，從而滿足復雜的控制需求。

總的來說，1769-OG16是一款功能強大、靈活易用的工業自動化控制模塊，適用于各種需要數字信號處理和控制的場景。

>>>>型號:1769-OG16 數字量直流輸出模塊 具有診斷和可配置功能

【英文介紹】

The 1769-OG16 is a 5-volt DC, TTL digital DC output module belonging to the CompactLogix series. It is mainly used in industrial automation control systems, responsible for processing digital signals and control logic.

1769-OG16 The module has a 16-point output with a voltage range between 4.5 and 5.5 volts DC, enabling stable and reliable operation in a wide range of industrial environments. Due to its modular design, users can

independently choose I/O, terminal type and network interface, which is very easy to install and maintain. In addition, the module has diagnostic and configurable functions, making it easy to integrate and debug in applications.

In terms of operation flow, the 1769-OG16 module meets a variety of installation requirements and is versatile. It supports SET and RST instructions, which can be used to control the reset and clear state of the target component.

At the same time, the differential instruction (PLS/PLF) enables the module to generate a pulse output of a scan cycle at the rising or falling edge of the input signal, thus meeting the complex control requirements.

Overall, the 1769-OG16 is a powerful, flexible and easy-to-use industrial automation control module for a variety of scenarios requiring digital signal processing and control.
