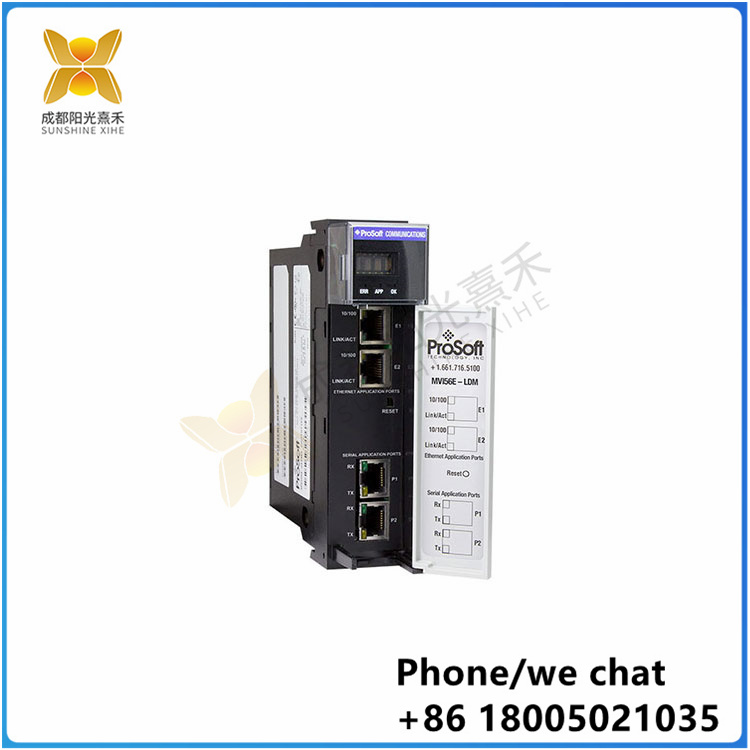

MVI56E-MNETCR   | IC200GBI001 | 通信接口設備|

一、產品概述

MVI56E-MNETCR通訊模塊是一種高性能的通信接口設備，它支持多種通信協議，特別是Modbus TCP/IP和Modbus RTU/ASCII，能夠與多種工業自動化設備進行數據交換和集成。該模塊設計緊湊、堅固耐用，適用于各種惡劣的工業環境。

二、主要功能與特點

Modbus通信支持：

Modbus TCP/IP：MVI56E-MNETCR模塊支持Modbus TCP/IP協議，使其能夠與Modbus TCP/IP兼容的設備進行通信。這種通信方式適用于網絡化的工業自動化系統，可以實現設備之間的遠程數據交換和集成。

Modbus RTU/ASCII：除了Modbus TCP/IP，該模塊還支持Modbus RTU/ASCII串行通信協議，可以與串行連接的Modbus設備進行通信，滿足不同設備的通信需求。

PLC集成：

MVI56E-MNETCR模塊設計用于與Rockwell Automation的ControlLogix?或CompactLogix?系列PLC集成。通過與PLC的集成，可以實現對Modbus設備的監控、控制和數據交換，實現自動化控制。

設備集成和數據采集：

該模塊可以用于集成不同制造商的設備，如電機驅動器、溫度控制器、變頻器等，以實現對這些設備的監控和控制。同時，它能夠?qū)崿F(xiàn)實時數據采集，幫助用戶監測生產過程并及時做出反應。

遠程監控與管理：

由于支持Modbus TCP/IP協議，MVI56E-MNETCR模塊可以通過網絡連接進行遠程訪問，實現對遠程設備的監控和管理。這使得用戶可以遠程監控工廠設備的狀態，及時處理異常情況，提高生產效率和運行可靠性。

卓越的性能和靈活性：

MVI56E-MNETCR模塊具有卓越的通信性能，支持高速、穩定的數據傳輸，能夠滿足大規模、復雜系統中的通信需求。同時，該模塊還具有高度的靈活性和可配置性，用戶可以根據實際需求通過配置軟件對模塊進行參數設置和功能調整。

背板功能和易集成性：

MVI56E-MNETCR模塊具有強大的背板功能和易集成性，可以與多種控制系統和設備無縫集成，為工業自動化和控制系統提供高效、可靠的通信解決方案。

三、應用場景

MVI56E-MNETCR通訊模塊廣泛應用于工業自動化、過程控制、建筑自動化等領域。它可以與各種工業自動化設備進行通信和集成，實現設備之間的數據交換和協作，提高系統的整體性能和可靠性。

注意事項

在安裝和使用MVI56E-MNETCR通訊模塊時，請務必遵循產品說明書和安全規范進行操作。

確保模塊與PLC或其他工業自動化設備的連接正確無誤，以避免通信故障或設備損壞。

定期進行設備維護和檢查，確保模塊的正常運行和長期穩定性。

綜上所述，MVI56E-MNETCR通訊模塊是一款功能強大、性能卓越的通信模塊，在工業自動化和控制系統中發揮著重要作用。

I. Product overview

MVI56E-MNETCR communication module is a high-performance communication interface device, it supports a variety of communication protocols, especially Modbus TCP/IP and Modbus RTU/ASCII, and can exchange and integrate data with a variety of industrial automation equipment. The module is designed to be compact, robust and suitable for a variety of harsh industrial environments.

2. Main functions and characteristics

Modbus communication support:

Modbus TCP/IP: The MVI56E-MNETCR module supports the Modbus TCP/IP protocol, enabling it to communicate with Modbus TCP/IP compatible devices. This communication method is suitable for networked industrial automation system, which can realize remote data exchange and integration between devices.

Modbus RTU/ASCII: In addition to Modbus TCP/IP, the module also supports the Modbus RTU/ASCII serial communication protocol, which can communicate with serial connected Modbus devices to meet the communication needs of different devices.

PLC integration:

The MVI56E-MNETCR module is designed for integration with Rockwell Automation's ControlLogix? or CompactLogix? series PLCS. Through the integration with PLC, it can realize the monitoring, control and data exchange of Modbus equipment, and realize automatic control.

Device integration and data acquisition:

The module can be used to integrate equipment from different manufacturers, such as motor drives, temperature controllers, inverters, etc., to achieve monitoring and control of these devices. At the same time, it enables real-time data acquisition, helping users to monitor the production process and respond in time.

Remote monitoring and management:

Due to the support of Modbus TCP/IP protocol, MVI56E-MNETCR module can be remotely accessed through a network connection to realize the monitoring and management of remote devices. This allows users to remotely monitor the status of factory equipment, deal with anomalies in a timely manner, and improve production efficiency and operational reliability.

Excellent performance and flexibility:

MVI56E-MNETCR module has excellent communication performance, supports high-speed and stable data transmission, and can meet the communication needs of large-scale and complex systems. At the same time, the module also has a high degree of flexibility and configurability, and users can set parameters and adjust functions of the module through configuration software according to actual needs.

Backplane features and easy integration:

The MVI56E-MNETCR module has a powerful backplane function and easy integration, and can be seamlessly integrated with a variety of control systems and equipment to provide efficient and reliable communication solutions for industrial automation and control systems.

3. Application scenarios

MVI56E-MNETCR communication module is widely used in industrial automation, process control, building automation and other fields. It can communicate and integrate with various industrial automation equipment, realize data exchange and collaboration between devices, and improve the overall performance and reliability of the system.

Matters needing attention

When installing and using the MVI56E-MNETCR communication module, be sure to follow the product instructions and safety specifications.

Ensure that the module is properly connected to the PLC or other industrial automation equipment to avoid communication failures or equipment damage.

Regular equipment maintenance and inspection to ensure the normal operation and long-term stability of the module.

To sum up, the MVI56E-MNETCR communication module is a powerful and excellent communication module, which plays an important role in industrial automation and control systems.
