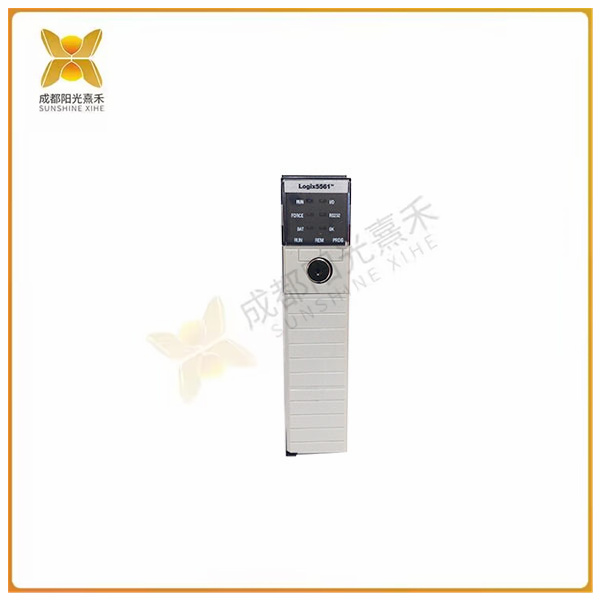

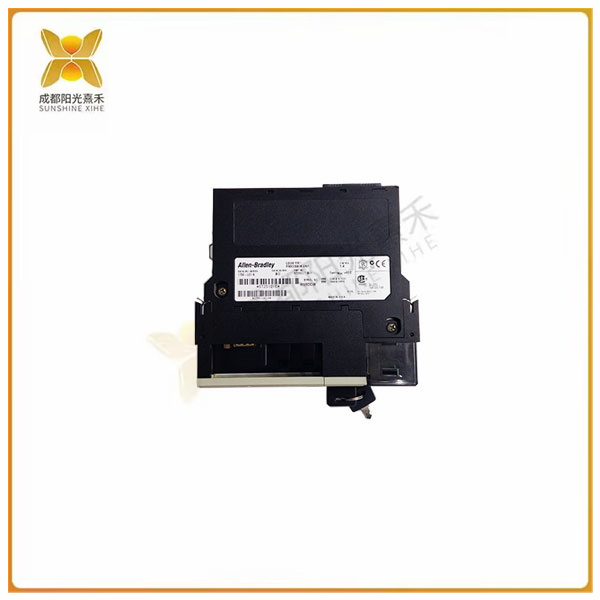

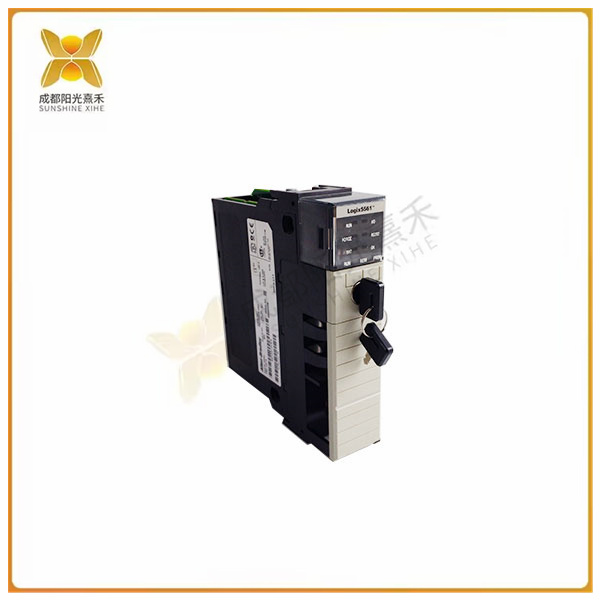

>>>>>型號:1756-L61 數字量 I/O 模塊 具備隔離和非隔離模塊類型
【功能描述】
安裝在 ControlLogix? 機架中
需要可拆卸端子塊 (RTB) 或 Bulletin 1492 接線接口模塊 (IFM) 來進行所有現場接線
包含固有的時間戳功能，適用于事件序列 (SOE) 應用項目
提供 EtherNet/IP? 通信，包括 CIP Security? 和冗余功能
可實現全面的 I/O 診斷，從而能夠檢測系統故障和現場故障
可帶電插拔 (RIUP)，便于維護
提供電子鍵控功能，有助于防止替換錯誤
在 Studio 5000 Logix Designer? 應用程序中包含 I/O 向?qū)?，可快速方便地進行模塊配置
1756 ControlLogix CIP 安全 I/0 模塊
支持 Compact GuardLogix? 5380 或 GuardLogix 5580 控制臺
提供高達（包括）SIL3 和 PLe 的功能安全等級
支持 CIP Safety 信息轉發和路由功能
用作 5580 GuardLogix 控制器的本地 I/O 或分布式 I/O
提供更快的響應時間
使用 Logix Designer 應用程序版本 32
提供數字輸入模塊：IB16S – 16 通道（各個等級均為 SIL 3）
提供數字輸出模塊：OBV8S – 8 通道（各個等級均為 SIL 3）
包括合規性標記：TüV，UL, IECEx, ATEX, CE, Marine, FM
ControlLogix 數字量 I/O 模塊
提供各種電壓
每個模塊提供 8 至 32 個點
具備隔離和非隔離模塊類型
包含通道級故障狀態輸出
可實現直接連接或機架優化通信
對選定模塊進行現場診斷
1756 ControlLogix 模擬量 I/O 模塊
包含輸入、輸出和組合模塊
提供熱電偶和熱電阻模塊
包含模塊級別數據報警
提供工程單位整定
提供實時通道采樣
提供電子模塊匹配，可通過軟件配置
包含機械可拆卸端子塊匹配，用戶自定義
逐通道配置電壓、電流或 2 線變送器電流源流型
逐通道配置熱電阻或熱電偶
>>>>>型號:1756-L61 數字量 I/O 模塊 具備隔離和非隔離模塊類型
【英文介紹】
Mounts in the ControlLogix? rack
A removable terminal block (RTB) or Bulletin 1492 Wiring Interface Module (IFM) is required for all field wiring
Includes built-in timestamp functionality for event sequence (SOE) applications
Provides EtherNet/IP? communications, including CIP Security? and redundancy capabilities
Comprehensive I/O diagnostics enable detection of system failures and field failures
Live pluggable (RIUP) for easy maintenance
Electronic keying is provided to help prevent replacement errors
I/O wizards are included in the Studio 5000 Logix Designer? application for quick and easy module configuration
1756 ControlLogix CIP Secure I/0 module
Compact GuardLogix? 5380 or GuardLogix 5580 console is supported
Functional safety levels up to (including) SIL3 and PLe are available
Supports CIP Safety information forwarding and routing
Local or distributed I/O for use as the 5580 GuardLogix controller
Provides faster response times
Use the Logix Designer application version 32
Digital input modules available: IB16S-16 channels (SIL 3 for all grades)
Digital output modules available: OBV8S-8 channels (SIL 3 for all grades)
Includes compliance marks: TUV, UL, IECEx, ATEX, CE, Marine, FM
ControlLogix Digital I/O module
Various voltages available
Each module provides 8 to 32 points
Both isolated and non-isolated module types are available
Contains channel-level fault status output
Direct connection or rack-optimized communication is possible
Field diagnostics for selected modules
1756 ControlLogix Analog I/O module
Contains input, output, and combination modules
Thermocouple and thermal resistance modules available
Contains module-level data alarms
Provide engineering unit setting
Provides real-time channel sampling
Provides electronic module matching and can be configured through software
Contains mechanical detachable terminal block matching, user-defined
Configure voltage, current, or 2-wire transmitter current source flow pattern on a channel-by-channel basis
Configure thermal resistors or thermocouples on a channel-by-channel basis
