>>>>>型號:1769-L32C 控制器 存儲參數和網絡配置數據

【功能描述】

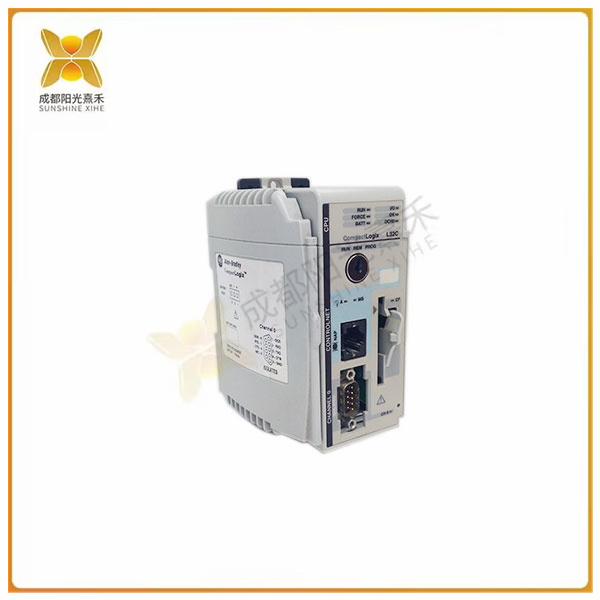

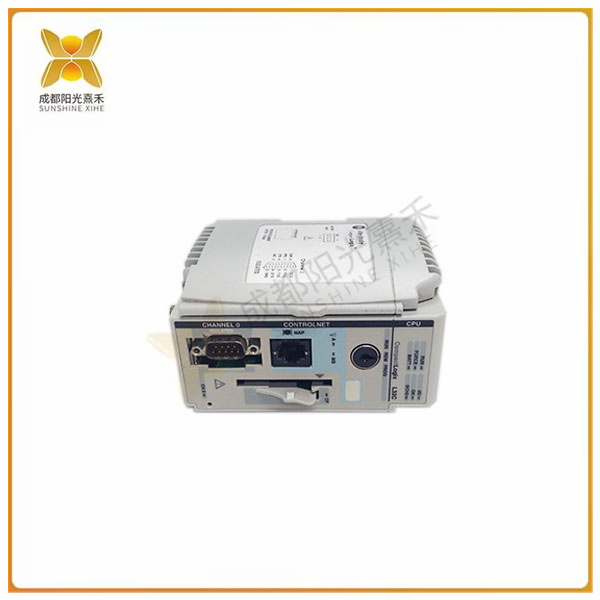

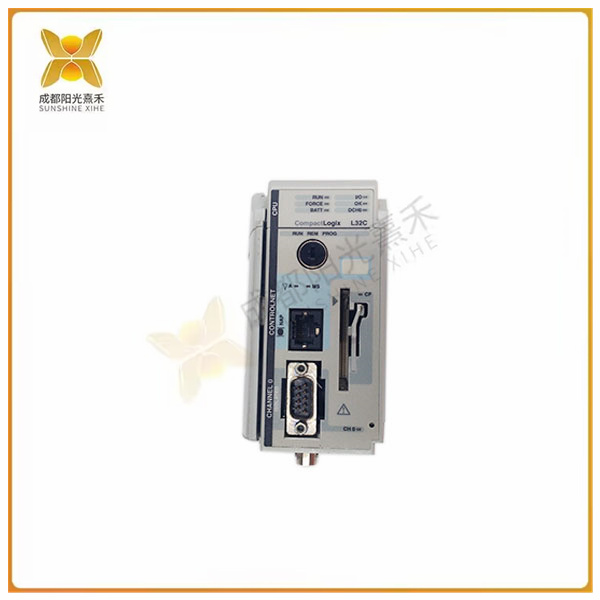

1769-L32C 是由 Allen-Bradley/Rockwell Automation 制造的 CompactLogix 控制器。該控制器非常重要，因?yàn)槊總€(gè) ControlNet 網絡都需要至少一個類似的模塊，該模塊能夠在啟動過程后存儲參數和網絡配置數據。1769-L32C 可以存儲數據，同時作為備份工作。所有這些操作都是自動的。Allen-Bradley 1769-L32C CompactLogix 控制器帶有不同的通信端口，即通道 4 上的 RS-232、NAP 和 ControlNet 端口。它還使用 750 KB 的內存，并具有 16 個 I/O 模塊。Allen-Bradley 1769-L32C CompactLogix 控制器具有 3 個 I/O bank，在 5 V DC 時具有 650 毫安的背板電流，在 24 V DC 時具有 40 毫安的背板電流。1769-L32C 邏輯模塊的功耗為 4.21 瓦。Allen-Bradley 1769-L32C CompactLogix 控制器的電池只能用 Allen-Bradley 1769-BA 電池更換。

Allen-Bradley 1769-L32C CompactLogix 控制器的工作溫度范圍為 0 至 60 攝氏度，相對濕度為 5 至 95%。為了延長模塊的使用壽命，保持合適的溫度非常重要。像這樣的模塊很容易被腐蝕和損壞。Allen-Bradley 1769-L32C CompactLogix 控制器提供狀態指示器，顯示模塊的當前狀態。這些指示燈在亮起時可以穩定、交替或閃爍。這 3 種類型的燈具有不同的含義，是理解和解決控制器可能遇到的不同問題的好方法。通過這些狀態指示燈可以顯示斷電、機架上的模塊放錯位置或主要和次要故障等情況。Allen-Bradley 1769-L32C CompactLogix 控制器的重量約為 0.32 千克。1769-L32C 邏輯模塊支持 100 個連接，可以在 CompactFlash 存儲器中保存和恢復用戶應用程序。

 >>>>>型號:1769-L32C 控制器 存儲參數和網絡配置數據

【英文介紹】

The 1769-L32C is a CompactLogix controller manufactured by Allen-Bradley/Rockwell Automation. This controller is important because every ControlNet network requires at least one similar module that is capable of storing parameters and network configuration data after the startup process. The 1769-L32C can store data and work as a backup. All of these operations are automatic. The Allen-Bradley 1769-L32C CompactLogix controller comes with different communication ports, namely RS-232, NAP, and ControlNet ports on Channel 4. It also uses 750 KB of memory and has 16 I/O modules. The Allen-Bradley 1769-L32C CompactLogix controller features 3 I/O banks with 650 mA backplane current at 5 V DC and 40 mA backplane current at 24 V DC. The 1769-L32C logic module has a power consumption of 4.21 watts. The battery of the Allen-Bradley 1769-L32C CompactLogix controller can only be replaced with an Allen-Bradley 1769-BA battery.

The Allen-Bradley 1769-L32C CompactLogix controller operates in a temperature range of 0 to 60 degrees Celsius and relative humidity of 5 to 95%. In order to extend the service life of the module, it is very important to maintain the right temperature. Modules like this are easily corroded and damaged. The Allen-Bradley 1769-L32C CompactLogix controller provides a status indicator that shows the current status of the module. These lights can be steady, alternating, or blinking when on. These 3 types of lamps have different meanings and are a good way to understand and solve the different problems that your controller may encounter. These status indicators can indicate power outages, misplaced modules on the rack, or major and minor faults. The Allen-Bradley 1769-L32C CompactLogix controller weighs approximately 0.32 kg. The 1769-L32C logic module supports 100 connections and can save and restore user applications in CompactFlash memory.

>>>>>型號:1769-L32C 控制器 存儲參數和網絡配置數據
