>>>>>型號:1785-L40C1 網絡功能 智能 I/O 模塊

【功能描述】

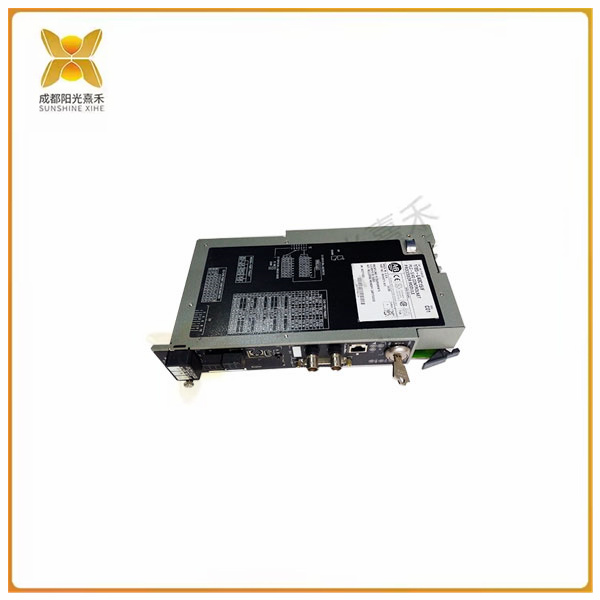

1785-L40C PLC-5/40C 是一款 Allen-Bradley 控制器，具有 ControlNet 網絡功能、48 KB 字 SRAM 處理器和 ControlNet 功能，安裝在 1771 I/O 機箱的 I/O 插槽上，用于控制現場設備的輸出和輸入。該處理器具有 48KB 的最大用戶內存字，最大 I/O 容量為 2048（2048 個輸入和 2048 個輸出互補），在位邏輯中測量的每個 K 字的最大程序掃描時間為 0.5 毫秒，掃描時間為每 K 字 2 毫秒（典型值）。該控制器在 5V DC 時消耗 3.3A 的背板電流，運行時最大散熱為 59 BTU/小時。該控制器支持 1785-CHBM ControlNet 熱備份磁帶，用于系統的熱備份，并支持 1771、1794、1746 和 1791 8 點、16 點和 32 點模塊以及智能 I/O 模塊。該控制器具有基本配置的 RJ45 連接器 ControlNet 網絡訪問端口，I/O 傳輸速率為每秒 5mb，用戶可選擇的網絡更新時間為 2-100ms，以及一個協處理器端口。

該控制器還配有一個用于編程的 8 針 mini-DIN 連接器和一個 3 針默認 DH+ 端口，它還具有一個 25 針 D-shell 串行端口，可選傳輸速率范圍為 57.6K bit/s 和 230.4K bit/s，以及可選掃描端口時間，每個機架 10ms（57.6K bit/s）和每個機架 3ms（230K bit/s）。1785-L40C 的最大散熱為 59 BTU/小時，可在 0-60 的溫度下運行而不會降額oC（32-140oF），在 5-95% 非冷凝相對濕度下，控制器可以存儲在 –40-85oC （–40-185oF）. 1785-L40C 可承受 30G 的操作沖擊，在 10-500Hz 時具有 1G 的振動，并且具有開放式外殼。它重約 1.42 千克（3 磅），通過了 UL、CE、CSA 和 C-TICK 認證。

 >>>>>型號:1785-L40C1 網絡功能 智能 I/O 模塊

【英文介紹】

The 1785-L40C PLC-5/40C is an Allen-Bradley controller with ControlNet networking capabilities, 48 KB word SRAM processor, and ControlNet functionality, installed in the I/O slot of the 1771 I/O chassis. Used to control the output and input of field equipment. The processor has a maximum user memory word of 48KB, a maximum I/O capacity of 2048 (2048 inputs and 2048 outputs complement each other), a maximum program scan time of 0.5 ms per K-word measured in in-place logic, and a scan time of 2 ms per k-word (typical values). The controller consumes 3.3A backplane current at 5V DC and has a maximum heat dissipation of 59 BTU/ hour during operation. The controller supports 1785-CHBM ControlNet hot backup tapes for system hot backup and supports 1771, 1794, 1746 and 1791 8, 16 and 32 point modules as well as intelligent I/O modules. The controller features a basic configuration RJ45 connector ControlNet network access port with an I/O transfer rate of 5 Megabits per second, user-selectable network update times of 2-100ms, and a coprocessor port.

The controller also comes with an 8-pin mini-DIN connector for programming and a 3-pin default DH+ port, and it also has a 25-pin D-shell serial port with optional transfer rates ranging from 57.6K bit/s to 230.4K bit/s. Optional scanning port times of 10ms per rack (57.6K bit/s) and 3ms per rack (230K bit/s) are also available. The 1785-L40C has a maximum heat dissipation of 59 BTU/ hour, can operate at 0-60 temperatures without derating oC (32-140oF), and can operate at 5-95% non-condensing relative humidity. The controller can be stored at -40-85oC (-40-185of). The 1785-L40C can withstand 30G operating shock, has 1G vibration at 10-500Hz, and has an open housing. It weighs about 1.42 kg (3 lb) and is UL, CE, CSA and C-TICK certified.
