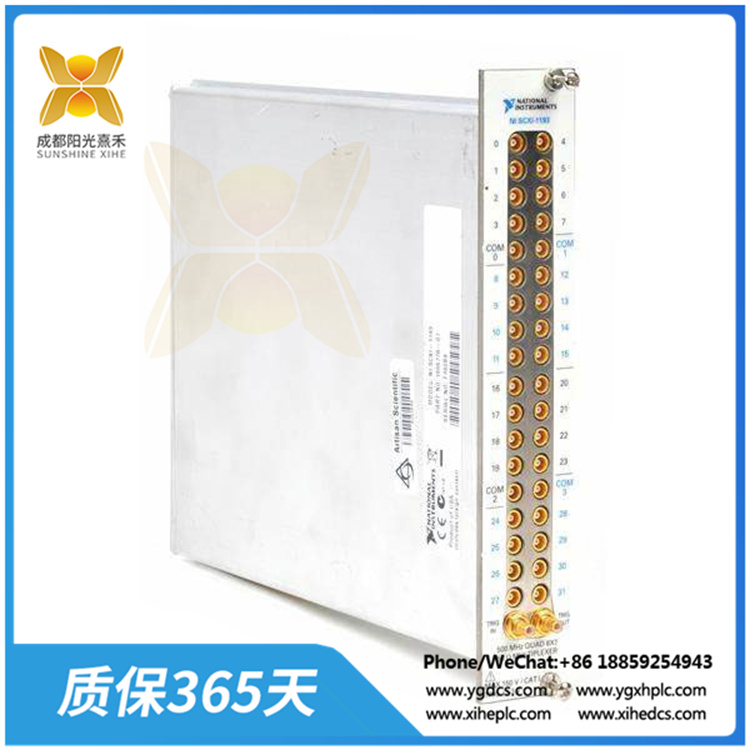

>>>>型號:SCXI-1193 多路復用開關模塊

【功能描述】

SCXI-1193是一款多路復用開關模塊。

SCXI-1193是一款32通道的高密度RF（射頻）多路復用器開關模塊，具備多種配置模式，可以配置為未端接多路復用器、外部端接多路復用器或尺寸多樣的稀疏矩陣。

每種配置都能承受從DC（直流）到500 MHz以上的信號頻率。

SCXI-1193模塊采用高密度推進式MCX連接器進行離散但易于管理的布線，并且主要用于集成高頻設備，如PXI-5404頻率發生器和PXI-5112高速數字化儀。

關于其技術規格，SCXI-1193的射頻載波功率范圍為10瓦至500 MHz（每個頻道），并且具有總RF功耗限值7 W，這個限值在整個環境工作溫度范圍內都有效。此外，

該模塊還涉及到一些與電阻和功耗相關的特性。在繼電器的使用壽命內，電阻通常保持較低，但在繼電器壽命結束時，觸點電阻會迅速上升至1.0ω以上。

>>>>>型號:SCXI-1193 多路復用開關模塊

【英文介紹】

SCXI-1193 is a multiplex switch module.

The SCXI-1193 is a 32-channel high density RF (radio frequency) multiplexer switch module that is available in a variety of configuration modes and can be configured as

an unterminated multiplexer, an externally terminated multiplexer, or a sparse matrix of various sizes. Each configuration can withstand signal frequencies from DC (direct current)

to more than 500 MHz.

The SCXI-1193 module uses high-density propelling MCX connectors for discrete but manageable wiring and is primarily used to integrate high frequency devices such as the

PXI-5404 frequency generator and the PXI-5112 high-speed digitizer.

Regarding its technical specifications, the SCXI-1193 has an RF carrier power range of 10 watts to 500 MHz (per channel) and a total RF power consumption limit of 7 W, which

is valid over the entire ambient operating temperature range. In addition, the module also covers a number of characteristics related to resistance and power consumption.

During the life of the relay, the resistance usually remains low, but at the end of the life of the relay, the contact resistance quickly rises above 1.0ω.
