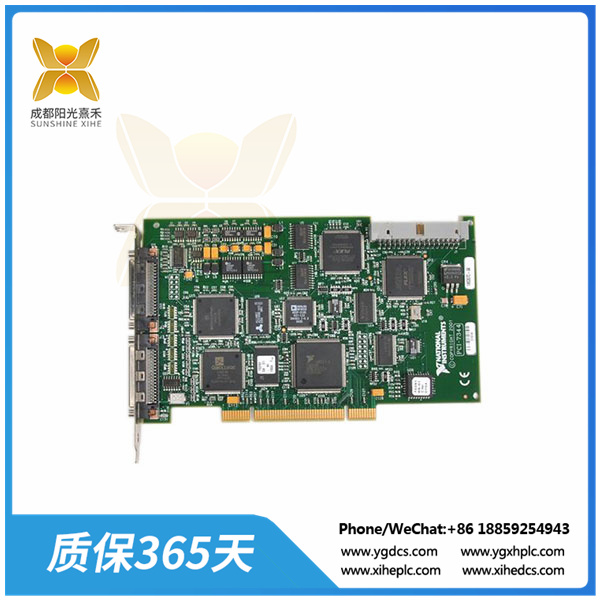

PCI-7344 伺服運動控制器 具有雙處理器和一個實時板載操作系統

　　PCI-7344是美國國家儀器(NI)公司推出的一款步進/伺服運動控制器。

　　PCI-7344運動控制器是NI的中檔運動產品之一，具有雙處理器和一個實時板載操作系統，并具有多軸插值功能，推薦用于簡單的步進或直流電機控制和復雜的多軸運動控制。

　　PCI-7344 運動控制器設備，4軸步進/伺服運動控制器設備—PCI?7344同時適用于簡單和復雜運動應用。 PCI?7344包括兩個處理器和一個實時板載系統，并具有多軸插值功能。 PCI?7344為嵌入式實時運動操作或以主機為中心的編程環境提供了混合運動軌跡控制和完全協調的圓形、線性、點對點、齒輪和矢量空間控制。

　　NI PCI-7344(部件號：778916-04)是一款用于步進/伺服控制應用的高品質運動控制器，具有 3D 輪廓、3D 線性和圓周插值以及高達 62 ms 的 PID 環路更新速率。該設備非常適合需要快速輕松地創建強大應用程序的機器制造商和最終用戶。該器件具有獨特的結構，其中 DSP 和 CPU 協同工作，為用戶提供優化的閉環控制、運動命令處理和自動化系統控制。NI PCI-7344 運動 控制 板 附帶 了 集成 的 系統 安全 機制。例如，看門狗定時器功能具有 63 ms 超時，并將電路板重置為啟動狀態。

　　NI PCI-7344 具有 62.5 至 500 μs/ 采樣 軌跡 更新范圍， 最大 更新 范圍 為 62.5 μs/ 軸。該運動控制器使用戶能夠在0至5 V的電壓范圍內以4 MHz的最大脈沖速率和120 ns的最大脈沖寬度采集步進輸出。

　　每個位都可以單獨編程。對于運動控制和數字 I/O，提供了兩個獨立的 68 針母頭高密度 VHDCI I/O 連接器。該運動控制器中包含的運動 I/O 連接器包含控制多達四個步進和伺服運動所需的所有必要信號，包括：禁止輸出、斷點輸出、電機命令輸出、反向限制輸入、原點限制輸入等。為了 實現 NI 運動 控制器 PCI-7344 和 其他 NI 設備 之間的 高速 連接， 用戶 可以 使用 隨 附 的 RTSI 連接器。

　　The PCI-7344 is a stepper/servo motion controller from National Instruments (NI).

　　The PCI-7344 motion controller is one of NI's mid-range motion products, featuring dual processors and a real-time onboard operating system with multi-axis interpolation, recommended for both simple stepper or DC motor control and complex multi-axis motion control.

　　PCI-7344 Motion controller devices, 4-axis stepper/servo motion controller devices - PCI-7344 is suitable for both simple and complex motion applications. PCI?7344 includes two processors and a real-time onboard system with multi-axis interpolation. PCI?7344 provides hybrid motion trajectory control and fully coordinated circular, linear, point-to-point, gear, and vector space control for embedded real-time motion operations or host-centric programming environments.

　　The NI PCI-7344 (Part number: 778916-04) is a high-quality motion controller for stepper/servo control applications with 3D contour, 3D linear and circular interpolation, and PID loop update rates up to 62 ms. The device is ideal for machine builders and end users who need to create powerful applications quickly and easily. The device has a unique architecture in which the DSP and CPU work together to provide users with optimized closed-loop control, motion command processing, and automated system control. The NI PCI-7344 Motion control board comes with an integrated system security mechanism. For example, the watchdog timer feature has a 63 ms timeout and resets the board to the startup state.

　　The NI PCI-7344 has an update range of 62.5 to 500 μs/ axis with a maximum update range of 62.5 μs/ axis. The motion controller enables the user to capture the stepping output at a maximum pulse rate of 4 MHz and a maximum pulse width of 120 ns over a voltage range of 0 to 5 V.

　　Each bit can be programmed individually. For motion control and digital I/O, two separate 68-pin female high-density VHDCI I/O connectors are available. The motion I/O connector included in this motion controller contains all the necessary signals needed to control up to four stepper and servo motions, including: disable output, breakpoint output, motor command output, reverse limit input, origin limit input, etc. For high-speed connectivity between the NI motion controller PCI-7344 and other NI devices, users can use the included RTSI connector.
