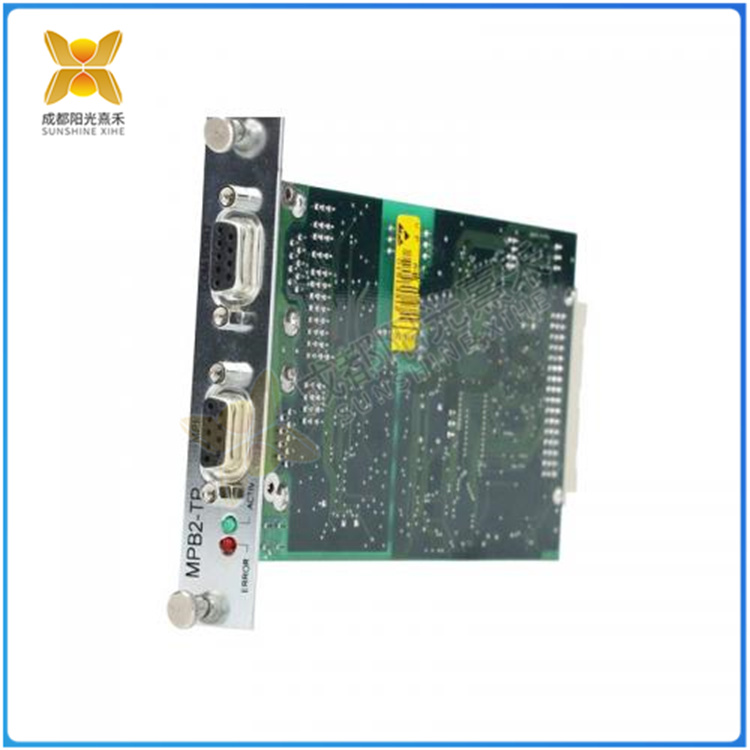

>>>>>型號:MPB2-TP 通信模塊

【功能描述】

MPB2-TP 通信模塊

本文件作為連接、調試和操作的參考MPB1-TP和MPB2-TP通信卡。這些卡只能用于提供適當插槽的微型面板設備(XV400)(目標硬件)。必須確保只

有在電源關閉時才能將卡安裝到設備上或從設備上取下關機了MPB1-TP支持各種PLC類型的所有驅動程序和物理接口，

包括將在本文檔的后面進行描述，除MPB1-TP驅動程序外，MPB2-TP還支持SIMATIC S7的MPI接口。除此之外，兩張卡完全相同。

1.從MICRO PANEL上拆下卡(電源關閉，即斷電)

2.為RS232配置MPBx-TP的COM PORT(章節2.2)

3.配置MPBx-TP跳線J6為PRG。

4.將卡裝回MICRO PANEL的插槽中。

5.將負載線連接到PC的串囗(COM1或COM2)和PC的COM PORT

MPBx-TP。

>>>>>型號:MPB2-TP 通信模塊

【英文介紹】

MPB2-TP communication module

This document serves as a reference for connecting, debugging, and operating MPB1-TP and MPB2-TP

communication cards. These cards can only be used for micro panel devices (XV400)(target hardware) with appropriate slots. Must ensure that only

Yes The card can only be installed to or removed from the device when the power is off. Powered off MPB1-TP

supports all drivers and physical interfaces for various PLC types, including those described later in this document.

In addition to the MPB1-TP driver, MPB2-TP also supports the MPI interface for SIMATIC S7. Other than that, the cards are identical.

1. Remove the card from the MICRO PANEL (power off, i.e. power off)

2. Configure the MPBx-TP COM PORT for RS232 (Section 2.2)

3. Set MPBx-TP jumper J6 to PRG.

4. Insert the card back into the slot on the MICRO PANEL.

5. Connect the load cable to the crosstalk (COM1 or COM2) of the PC and the COM PORT of the PC

MPBx-TP.
