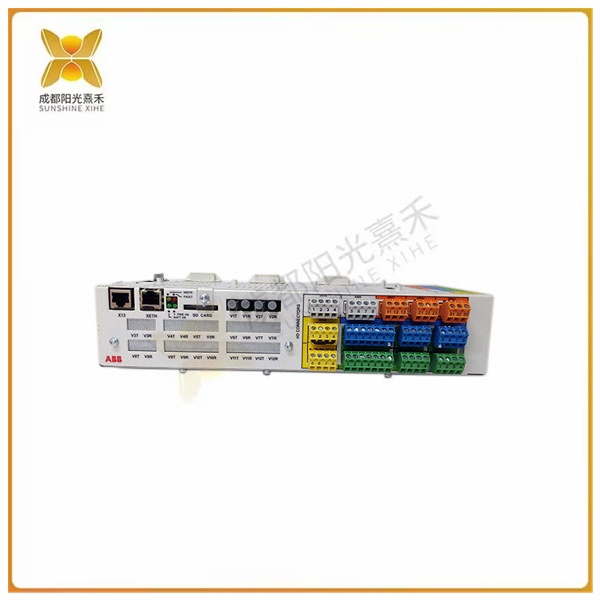

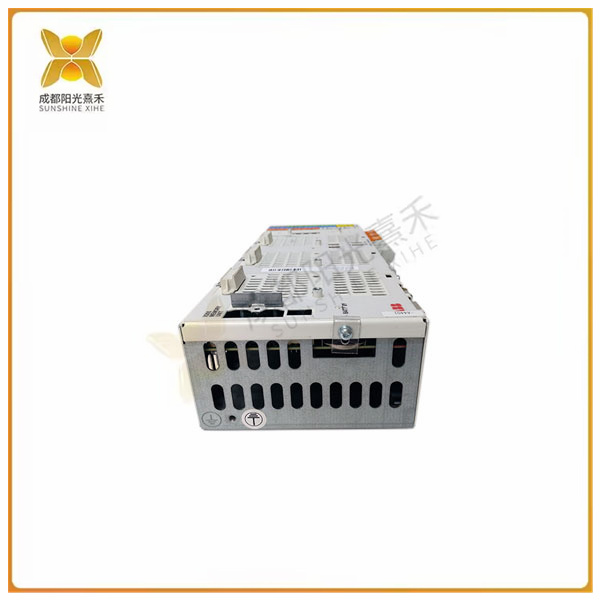

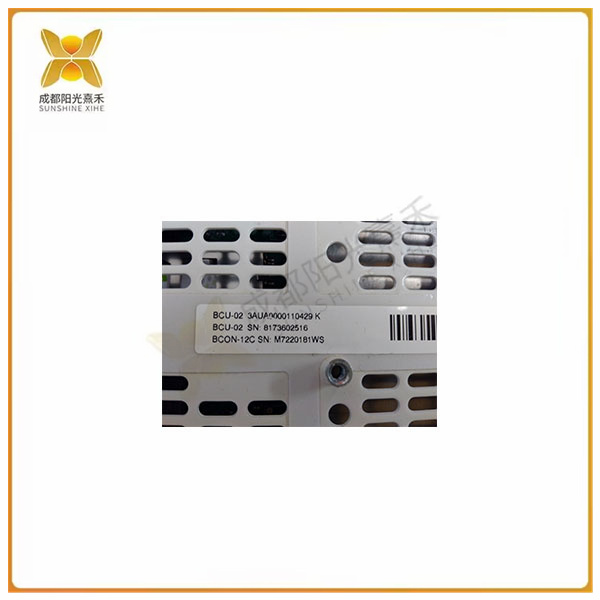

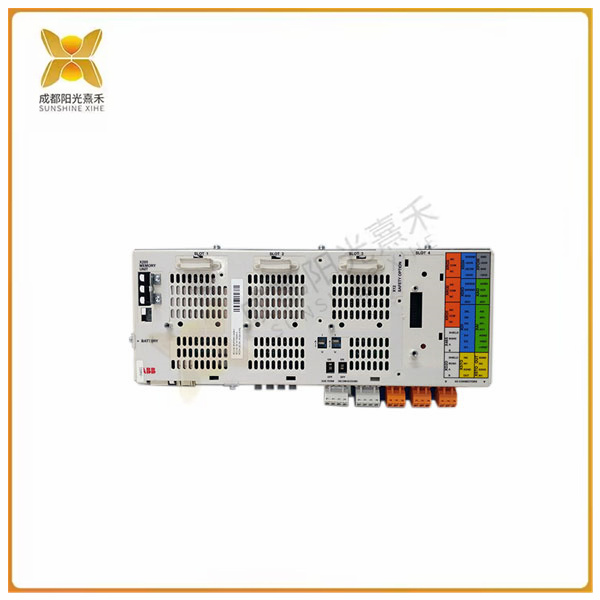

>>>>>型號:BCU-02 控制單元 垂直的DIN導軌安裝
【功能描述】
安裝控制單元
控制單元通過DIN導軌接地。
垂直的DIN導軌安裝
1.使用四顆螺釘將閂鎖固定到控制單元后部。
2.將控制單元卡入導軌，如下所示。
3.使用端部支架固定控制單元
BCU-02、BCU-12和BCU-22是用于通過光纖鏈路控制變頻器的控制單元。它包含光纖分
配器功能，用于從變頻器模塊收集和存儲實時數據，以幫助進行故障跟蹤和分析。數據存
儲在安全數據卡中。
控制單元型號具有不同數量的光纖連接：
您可以使用BCU-22替代任何型號的控制單元。
控制單元需要外部24 V DC電源。它有三個可選的插槽，用于I/O擴展、編碼器和總線適
配器，并具有集成式以太網接口，用于PC工具通訊以及可移除的存儲單元。例如，如果
需要更換控制單元，可通過將存儲單元從出現故障的控制單元轉移到新的控制單元來保留
參數設置。
控制單元配有數據記錄器，可用于采集來自變頻器上電階段的實時數據，以便協助進行故
障跟蹤和分析。該數據將存儲到插入SD卡插槽的SDHC內存卡上，且可由ABB維修人
員進行分析。
變頻器間鏈路(XD2D)是一種菊花鏈?zhǔn)絉S-485傳輸線路，它允許與一個主變頻器以及多
個從變頻器進行基本的主/從通訊?？刂茊卧€有一個選件插槽，用于連接RDCO DDCS
通訊選件板。有關詳細信息，請參見相應的硬件手冊
>>>>>型號:BCU-02 控制單元 垂直的DIN導軌安裝
【英文介紹】
Installation control unit
The control unit is grounded via DIN rail.
Vertical DIN rail mounting
1. Use four screws to secure the latch to the rear of the control unit.
2. Clamp the control unit into the guide rail, as shown below.
3. Secure the control unit with the end bracket
BCU-02, BCU-12, and BCU-22 are control units for controlling frequency converters via fiber optic links. It contains fiber optic points
The controller function is used to collect and store real-time data from the inverter module to aid in fault tracking and analysis. Data store
Stored in security data card.
Control unit models have different numbers of fiber connections:
You can replace any type of control unit with the BCU-22.
The control unit requires an external 24 V DC power supply. It has three optional slots for I/O expansion, encoder and bus adaptor
The adapter has an integrated Ethernet interface for PC tool communication and a removable storage unit. For example, if
The need to replace the control unit can be preserved by transferring the storage unit from the faulty control unit to the new control unit
Parameter Settings.
The control unit is equipped with a data logger that can be used to collect real-time data from the inverter power-on phase to assist in the process
Obstacle tracking and analysis. This data is stored on the SDHC memory card inserted into the SD card slot and can be serviced by ABB personnel
Member for analysis.
Frequency Converter Link (XD2D) is a Daisy chain RS-485 transmission line that allows for communication with one main frequency converter as well as more
Each slave inverter performs basic master/slave communication. The control unit also has an option slot for connecting RDCO DDCS
Communication option board. For more information, see the corresponding hardware manual
