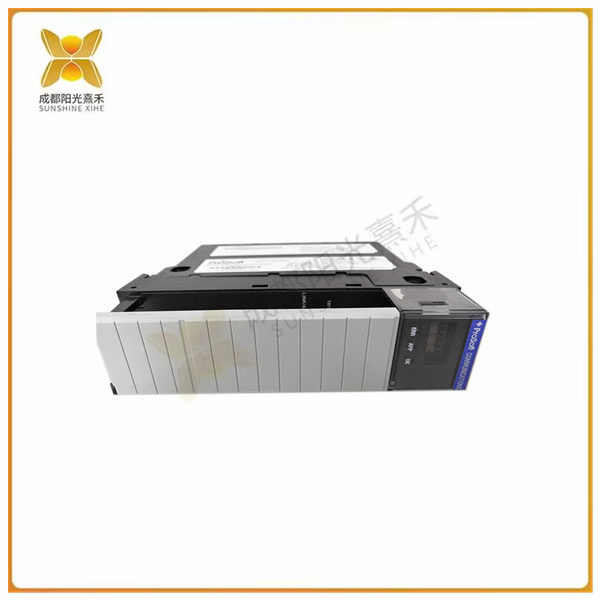

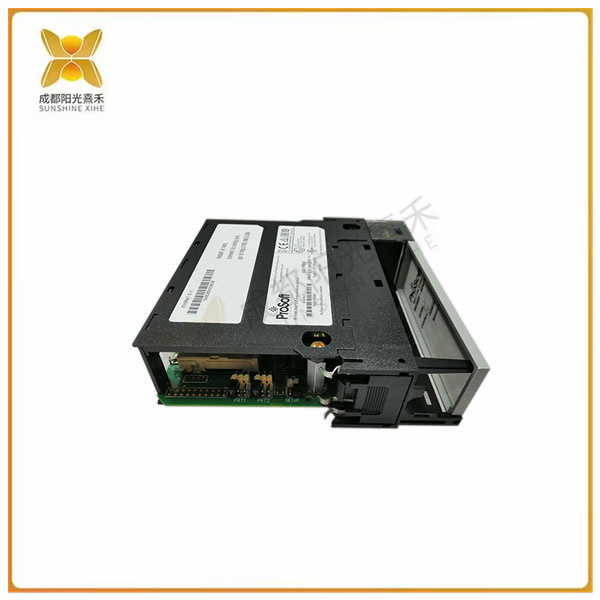

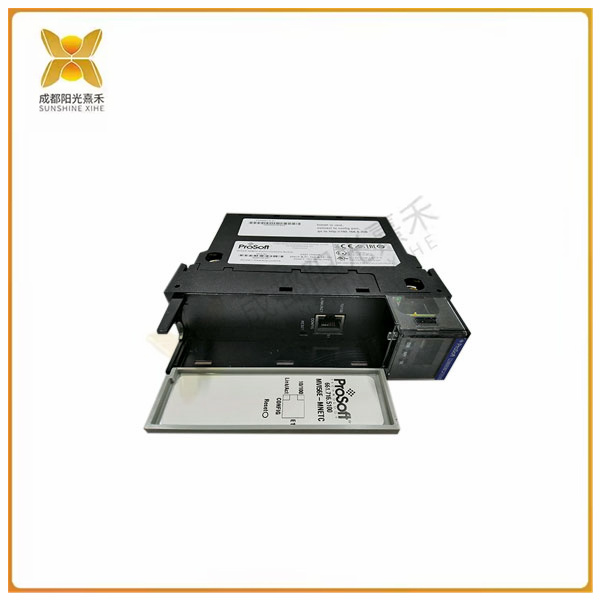

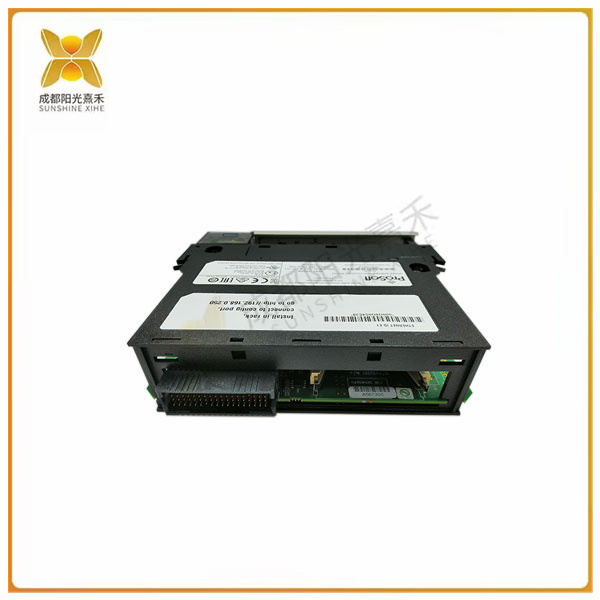

>>>>>型號:MVI56E-MNETC 以太網端口的配置和管理 網絡搭線建橋

【功能描述】

當你需要Modbus?TCP/IP通信，MVI56E-MNETC/MNETCXT模塊絕對是你的最佳選擇。Modbus TCP/IP增強通信模塊支持羅克韋爾自動化ControlLogix可編程自動化控制器（PAC）輕松連接Modicon可編程自動化控制器（PAC），以及多個Modbus TCP/IP服務器兼容的儀器和設備。多客戶端模塊在支持Modbus TCP/IP網絡上的多個服務器時，支持最多30個客戶端，從而提高了性能。它還支持多達20個服務器連接，提供與其他DCS和SCADA系統通信的能力?？蛻舳撕头?wù)器功能都可以同時運行，模塊還可以作為強大的數據集中器運行。

MVI56E-MNETC和MVI56E-MNETCXT功能相同。MVI56E-MNETCXT用于標準過程應用。MVI56E-MNETCXT是專為XT?Logix控制平臺設計的，支持它在極端環境下運行。該模塊可以在較高的工作溫度下運行，并具有保護涂層使它免受惡劣或苛性條件。

MVI56E增強功能包括通過模塊的以太網端口的配置和管理，CIPconnect?技術則為ControlNet和EtherNet/IP?網絡搭線建橋。

特性優勢

支持多達30個客戶端和20個服務器

對多服務器應用程序的響應速度更快

當一臺服務器設備離線時，最大限度地減少對其他服務器通信的影響

服務器功能提供HMIs訪問系統，SCADA和DCS系統

RSLogix?5000集成

模塊與RSLogix 5000使用提供的附加的集成指令（AOI）或梯形文件通信

不需要額外的PAC/PLC編程

從梯形邏輯輕松啟用/禁用命令

以編程方式啟用各種網絡設備及其功能以支持多個網絡設備應用程序或配方，而無需重新配置模塊

遠程配置和診斷問題

易于使用的基于Windows的配置軟件通過遠程機架連接以太網/IP，沒有RSLinx要求,控制通過1756的或1756-CNB接口的模塊，節省成本。

允許IT支持和自動化網絡分割

MVI56向后兼容

通過采用更新的技術，幫助擴展目前的MVI56的應用，支持現有的MVI56梯形邏輯和模塊配置

>>>>>型號:MVI56E-MNETC 以太網端口的配置和管理 網絡搭線建橋

【英文介紹】

When you need Modbus?TCP/IP communication, the MVI56E-MNETC/MNETCXT module is definitely your best choice. The Modbus TCP/IP Enhanced Communication module supports Rockwell Automation ControlLogix Programmable Automation Controllers (PACs) for easy connection to Modicon Programmable Automation Controllers (PACs), as well as multiple Modbus TCP/IP server-compatible instruments and devices. The multi-client module improves performance by supporting up to 30 clients when supporting multiple servers on a Modbus TCP/IP network. It also supports up to 20 server connections, providing the ability to communicate with other DCS and SCADA systems. Both client and server functions can be run simultaneously, and the module can also be run as a powerful data concentrator.

The MVI56E-MNETC and MVI56E-MNETCXT have the same functions. The MVI56E-MNETCXT is used for standard process applications. The MVI56E-MNETCXT is designed for the XT?Logix control platform, enabling it to operate in extreme environments. The module can operate at higher operating temperatures and has a protective coating to protect it from harsh or caustic conditions.

MVI56E enhancements include configuration and management of EtherNet ports through modules, and CIPconnect? technology Bridges ControlNet and EtherNet/IP? networks.

Characteristic advantage

Supports up to 30 clients and 20 servers

Faster response to multi-server applications

When one server is offline, the communication impact on other servers is minimized

The server features provide HMIs access systems, SCADA and DCS systems

RSLogix?5000 integration

The module communicates with the RSLogix 5000 using an additional Integration Instruction (AOI) or ladder file provided

No additional PAC/PLC programming is required

Easily enable/disable commands from Ladder logic

Programmatically enable various network devices and their capabilities to support multiple network device applications or recipes without reconfiguring modules

Configure and diagnose problems remotely

Easy to use Windows-based configuration software connects Ethernet /IP via remote rack, no RSLinx requirements, controls modules via 1756 or 1756-CNB interfaces, saves costs.

Allows IT to support and automate network segmentation

MVI56 is backward compatible

Help extend current MVI56 applications by adopting newer technologies to support existing MVI56 ladder logic and module configurations
