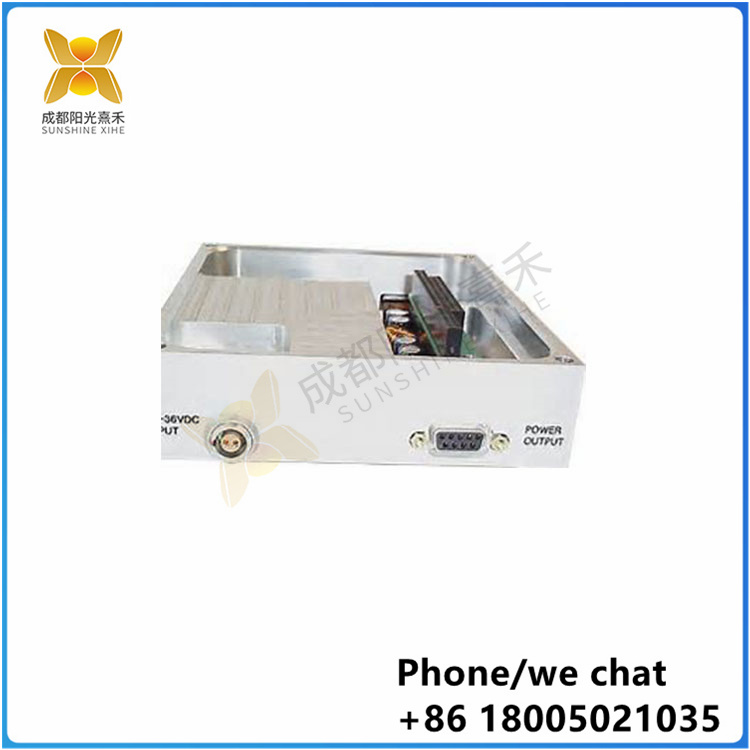

H1127-0101 |5SHY5045L0020|船舶控制器|

一、H1127-0101定義與性質

定義：船舶控制器是一種通過集成多種電子元器件和程序控制功能，實現對船舶進行全面監控、控制和管理的設備。

性質：船舶控制器具有高性能、高可靠性、低功耗、小尺寸等特點，能夠適應各種復雜的海洋環境，確保船舶的安全航行和高效運營。

二、H1127-0101組成結構

船舶控制器的組成結構通常包括以下幾個部分：

主控單元：負責處理數據和指令，是控制器的核心部件。

輸入輸出接口：用于連接外部設備和傳感器，實現數據的采集和指令的輸出。

電源模塊：為控制器提供穩定的電源供應。

顯示模塊：用于顯示船舶的運行狀態和參數信息。

操作面板：包含按鍵、旋鈕等操作元件，用于人工操作和控制船舶。

三、H1127-0101功能作用

船舶控制器的功能作用主要包括以下幾個方面：

數據采集與處理：通過傳感器等外部設備采集船舶的航行狀態、環境參數等信息，并進行處理和分析，為控制決策提供依據。

控制功能：根據預設的程序和算法，對船舶的航向、航速、位置等進行精確的控制，實現船舶的自動化航行和管理。

監控與報警：實時監控船舶的運行狀態和參數信息，一旦發現異常情況，立即發出報警信號，確保船舶的安全運行。

人機交互：提供友好的人機交互界面，方便操作人員對船舶進行監控和控制，提高操作效率和安全性。

四、應用實例

以KONGSBERG RMP201-8遠航船舶控制器為例，該控制器具備高度集成和模塊化的設計，可廣泛應用于各種遠航船舶的控制和監控系統。它具備動力定位系統控制、航行監控和自動化、數據記錄和監控等多種功能，能夠滿足遠航船舶在各種復雜海洋環境下的控制和監控需求，提高船舶的安全性和效率。

Definition and nature of H1127-0101

Definition: A ship controller is a device that integrates a variety of electronic components and program control functions to achieve comprehensive monitoring, control and management of the ship.

Properties: The ship controller has the characteristics of high performance, high reliability, low power consumption, small size, etc., and can adapt to various complex Marine environments to ensure safe navigation and efficient operation of the ship.

Ii. Structure of H1127-0101

The composition structure of the ship controller usually includes the following parts:

Main control unit: responsible for processing data and instructions, is the core component of the controller.

Input/output interface: used to connect external devices and sensors to achieve data acquisition and command output.

Power module: Provides stable power supply for the controller.

Display module: used to display the ship's operating status and parameter information.

Operation panel: contains buttons, knobs and other operating elements for manual operation and control of the ship.

Functions and Functions of H1127-0101

The function of ship controller mainly includes the following aspects:

Data acquisition and processing: collect the ship's sailing status, environmental parameters and other information through sensors and other external devices, and process and analyze it to provide a basis for control decisions.

Control function: According to the preset program and algorithm, the ship's heading, speed, position and other accurate control, to achieve automatic navigation and management of the ship.

Monitoring and alarm: real-time monitoring of the ship's operating status and parameter information, once found abnormal conditions, immediately send an alarm signal to ensure the safe operation of the ship.

Man-machine interaction: Provide friendly man-machine interaction interface, convenient for operators to monitor and control the ship, improve operational efficiency and safety.

4. Application examples

The KONGSBERG RMP201-8 long-sailing ship controller, for example, has a highly integrated and modular design, which can be used in a wide range of long-sailing ship control and monitoring systems. It has a variety of functions such as dynamic positioning system control, navigation monitoring and automation, data recording and monitoring, which can meet the control and monitoring needs of long-sailing ships in various complex Marine environments, and improve the safety and efficiency of ships.
