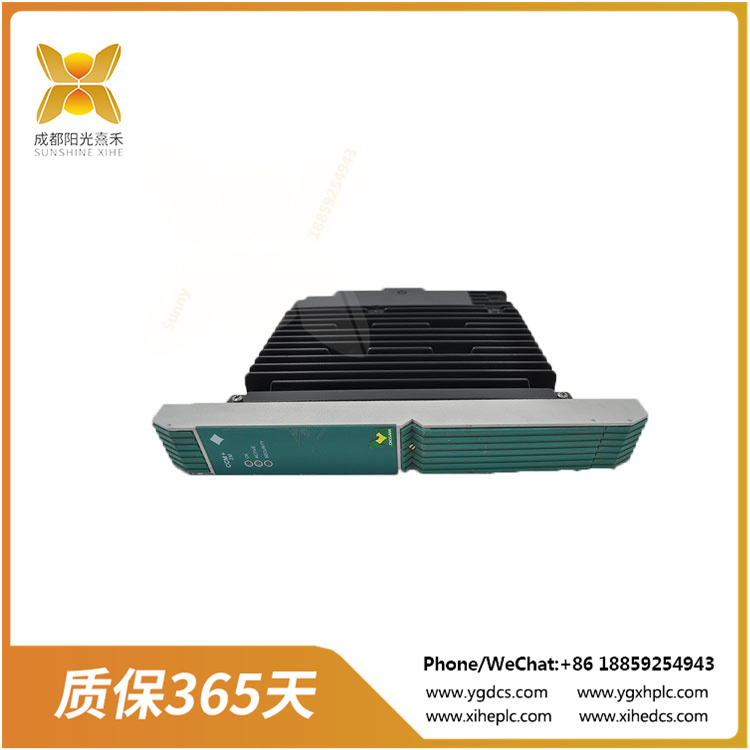

PSCCM22AAN 是橫河（Yokogawa）公司生產的一款關鍵控制模塊，用于 CENTUM VP 和 CENTUM CS 3000 DCS 系統。這款模塊是一個高性能的模擬量 I/O 模塊，能夠?yàn)楦鞣N模擬量信號提供精確的測量和控制，滿足關鍵應用的需求。它具有以下特點：
高精度：測量精度高達 ±0.05%，確保數據的可靠性。
快速響應：響應時間快至 1 ms，滿足高速控制需求。
高可靠性：采用冗余設計，確保系統的連續運行。
多種輸入/輸出類型：支持電流輸入/輸出、電壓輸入/輸出、熱電偶輸入/輸出和 RTD 輸入/輸出，可滿足不同應用需求。
強大的功能：支持各種控制算法，包括 PID、比例和積分等。
易于使用：提供清晰的接線圖和詳細的使用說明書，方便用戶安裝和使用。
產品參數包括：
電流輸入：-20 mA 至 +20 mA，精度 ±0.05%，分辨率 16 位。
電壓輸入：-10 V 至 +10 V，精度 ±0.05%，分辨率 16 位。
熱電偶輸入：支持 J、K、T、E、R、S、B、N 等多種類型。
RTD 輸入：支持 Pt100、Pt500 等多種類型。
電流輸出：-20 mA 至 +20 mA，精度 ±0.05%，分辨率 16 位。
電壓輸出：-10 V 至 +10 V，精度 ±0.05%，分辨率 16 位。
電源電壓：24 VDC，功耗 < 5 W。
工作溫度：-20°C 至 +60°C。
防護等級：IP67。
尺寸：90 mm x 72 mm x 25 mm。
重量：300 g。
這款模塊適用于需要高精度和高可靠性控制的工業環境，如石油化工、電力、冶金等行業的過程控制
The PSCCM22AAN is a key control module produced by Yokogawa for the CENTUM VP and CENTUM CS 3000 DCS systems. This module is a high-performance analog I/O module that provides accurate measurement and control of a wide range of analog signals to meet the needs of critical applications.
It has the following characteristics:
High precision: The measurement accuracy is up to ±0.05% to ensure the reliability of the data.
Fast response: The response time is as fast as 1 ms to meet the needs of high-speed control.
High reliability: redundancy design ensures continuous operation of the system.
Multiple input/output types: Support current input/output, voltage input/output, thermocouple input/output and RTD input/output to meet different application requirements.
Powerful features: Support a variety of control algorithms, including PID, proportional and integral.
Easy to use: provide clear wiring diagram and detailed instruction manual, easy to install and use.
Product parameters include:
Current input: -20 mA to +20 mA, accuracy ±0.05%, resolution 16 bits.
Voltage input: -10 V to +10 V, accuracy ±0.05%, resolution 16 bits.
Thermocouple input: Support J, K, T, E, R, S, B, N and other types.
RTD input: Pt100, Pt500 and other types are supported.
Current output: -20 mA to +20 mA, accuracy ±0.05%, resolution 16 bits.
Voltage output: -10 V to +10 V, accuracy ±0.05%, resolution 16 bits.
Power supply voltage: 24 VDC, power consumption < 5 W.
Operating temperature: -20°C to +60°C.
Protection level: IP67.
Dimensions: 90 mm x 72 mm x 25 mm.
Weight: 300 g.
This module is suitable for industrial environments that require high precision and high reliability control, such as process control in petrochemical, electric power, metallurgy and other industries.
