>>>>>型號:3BHB005243R0105 控制板

【功能描述】

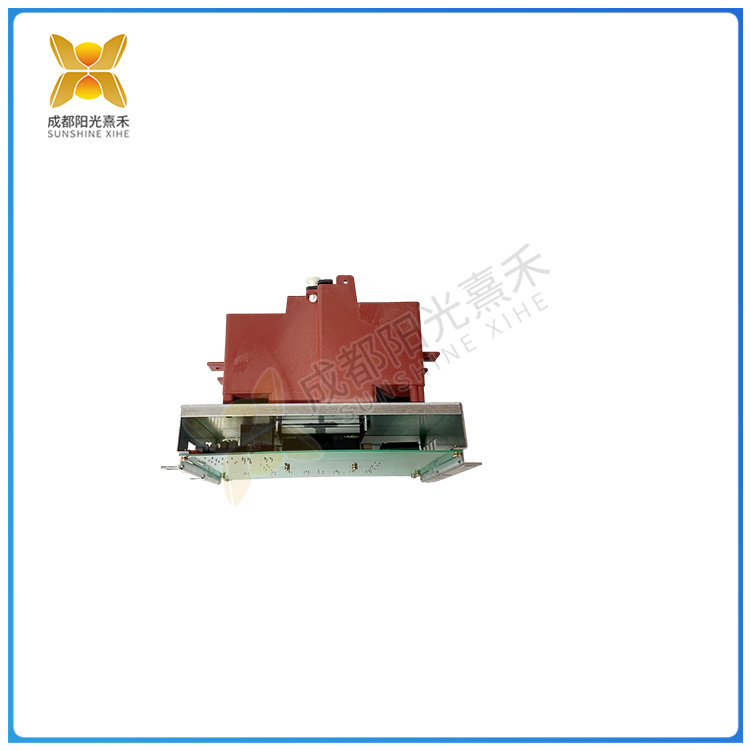

3BHB005243R0105控制板

傳動單元包括下列標(biāo)準印刷電路板:

●主電路接口板(AINT) ;

●電機控制和/O電路板(RMIO-02)(與AINT通過光纖連接) :

●輸入橋路控制板(AINP) ;

●包括壓敏電阻和用于可控硅整流器的緩沖器的輸入橋路保護板(AIBP);

電源供應(yīng)板(APOW) :

●門極控制板[AGDR-61 或AGDR-62 (帶du/dt 限制選項+E204)] ;

●診斷和控制盤接口板(ADPI) :

●帶選項+E202的EMC濾波器板(NRFC和ARFC);

●帶選項+D150的制動斬波器控制板(ABRC)。

>>>>>型號:3BHB005243R0105 控制板

【英文介紹】

3BHB005243R0105 Control board

The drive unit includes the following standard printed circuit boards:

● Main circuit interface board (AINT);

● Motor control and /O circuit board (RMIO-02)(fiber optic connection with AINT) :

● Input Bridge Control Panel (AINP);

● Input bridge protection plate (AIBP) including varistor and buffer for thyristor rectifier;

Power Supply Board (APOW) :

● Gate control panel [AGDR-61 or AGDR-62 (with du/dt limit option +E204)];

● Diagnostic and Control Panel Interface Board (ADPI) :

● EMC Filter boards (NRFC and ARFC) with option +E202;

● Brake Chopper Control Board (ABRC) with option +D150.
