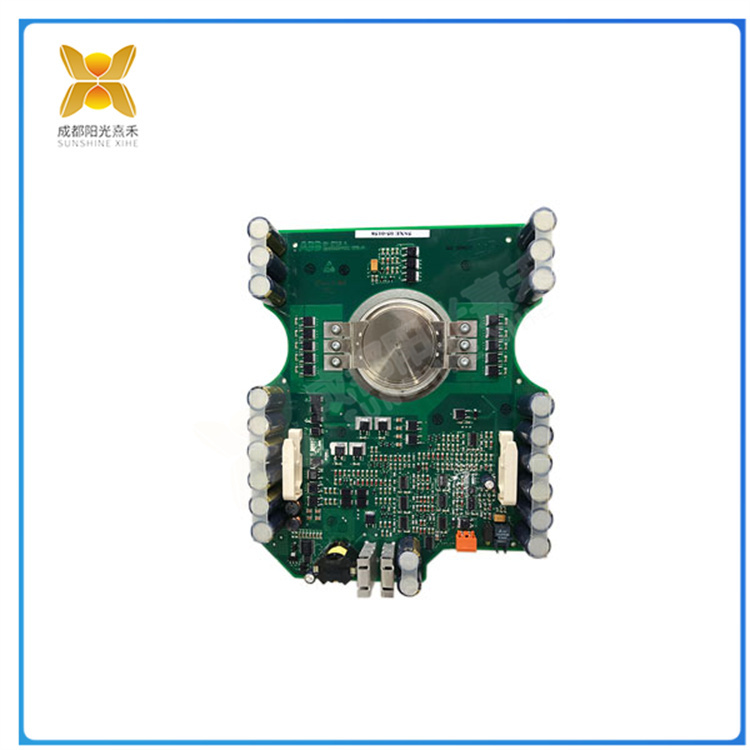

>>>>>型號:5SHX0660F0002 IGCT電路板元器件

【功能描述】

5SHX0660F0002是一種IGCT（集成門極換流晶閘管）電路板元器件，特別用于中壓變頻器開發的巨型電力電子成套裝置中。

這種元器件是一種新型電力半導體開關器件，結合了門極換流晶閘管與門極單元的優勢。

5SHX0660F0002將GTO芯片與反并聯二極管和門極驅動電路集成在一起，然后再與其門極驅動器在外圍以低電感方式連接。這種設計結合了晶體管的穩定關斷能力和晶閘管低通態損耗的優點，

使得在導通階段能夠發揮晶閘管的性能，而在關斷階段則呈現晶體管的特性。

作為一款高性能的電力半導體開關器件，5SHX0660F0002可能還具備多種優點，如高效率的能源轉換、多種控制方式、內置保護功能、通信接口、緊湊設計、高可靠性以及廣泛的適應性等。

這些特點使其適用于多種工業和商業應用領域，包括工廠自動化、機械設備、電力傳動等。

>>>>>型號:5SHX0660F0002 IGCT電路板元器件

【英文介紹】

5SHX0660F0002 is an IGCT (Integrated Gate commutated thyristor) circuit board component, especially used in large power electronics packages developed for medium-voltage frequency converters.

This device is a new type of power semiconductor switching device, which combines the advantages of gate converter thyristor and gate unit.

The 5SHX0660F0002 integrates the GTO chip with an anti-parallel diode and gate driver circuit, which is then connected with its gate driver in a low inductance mode at the periphery.

This design combines the stable switching ability of the transistor with the advantages of the low on-state loss of the thyristor, so that the performance of the thyristor can be displayed

 in the on-phase, and the characteristics of the transistor in the off phase.

As a high-performance power semiconductor switching device, 5SHX0660F0002 May also have a number of advantages, such as efficient energy conversion, multiple control methods,

 built-in protection, communication interface, compact design, high reliability, and a wide range of adaptability. These characteristics make it suitable for a variety of industrial and

commercial applications, including factory automation, mechanical equipment, electric transmission and more.
