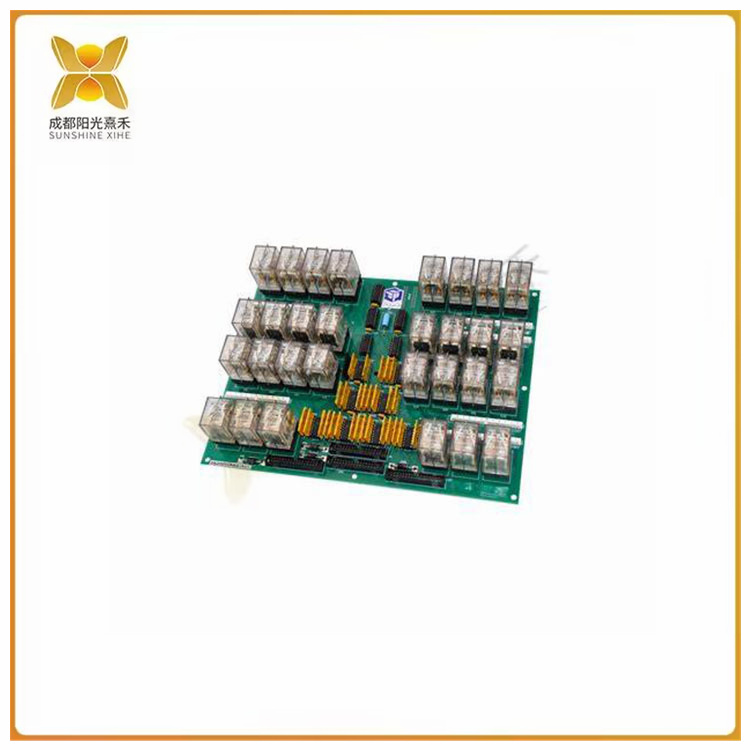

>>>>>型號:DS200TCRAG1ACC 繼電器輸出板 裝有30個插入式繼電器
【功能描述】
GE繼電器輸出板DS200TCRAG1ACC裝有30個插入式繼電器。它還具有 4 個 34 針連接器和 4 個 12 針連接器。分配給 34 針連接器的 ID 為 JOR、JOS、JOT 和 JO。分配給 12 針連接器的 ID 為 JS3、JS4、JS5 和 JS6。由于 GE 繼電器輸出板DS200TCRAG1ACC上有多個連接器，因此必須遵循準則以確保您可以快速將電纜連接到替換板上的正確連接器。在開始更換之前，請確保您知道提供給驅動器的電流的緊急關閉裝置的位置。而且，您必須了解如何操作關閉并驗證其是否處于良好的工作狀態。熟悉驅動器安裝的人員將獲得有關電源和緊急切斷的詳細信息。下一步是驗證驅動器周圍區域的地板是否清潔且沒有濕氣或積水。使用清潔劑清除地板上的油或油脂。您還應該拔下所有未接地的兩芯電源線，因?yàn)橛杏|電的危險。
>>>>>型號:DS200TCRAG1ACC 繼電器輸出板 裝有30個插入式繼電器
【英文介紹】
The GE relay output board DS200TCRAG1ACC contains 30 plug-in relays. It also features four 34-pin connectors and four 12-pin connectors. The ids assigned to the 34-pin connector are JOR, JOS, JOT, and JO. The ids assigned to 12-pin connectors are JS3, JS4, JS5, and JS6. Because there are multiple connectors on the GE relay output board DS200TCRAG1ACC, guidelines must be followed to ensure that you can quickly connect the cable to the correct connector on the replacement board. Before starting the replacement, make sure you know the location of the emergency shut-off device for the current supplied to the drive. Moreover, you must understand how to operate the shutdown and verify that it is in good working order. Those who are familiar with the installation of the drive will get detailed information on power supply and emergency cut-off. The next step is to verify that the floor in the area around the drive is clean and free of moisture or standing water. Use a cleaner to remove oil or grease from the floor. You should also unplug all ungrounded two-core power cords, as there is a risk of electric shock.
