>>>>>型號:DS200TCTGG1AFF 裝有 21 個插入式繼電器

【功能描述】

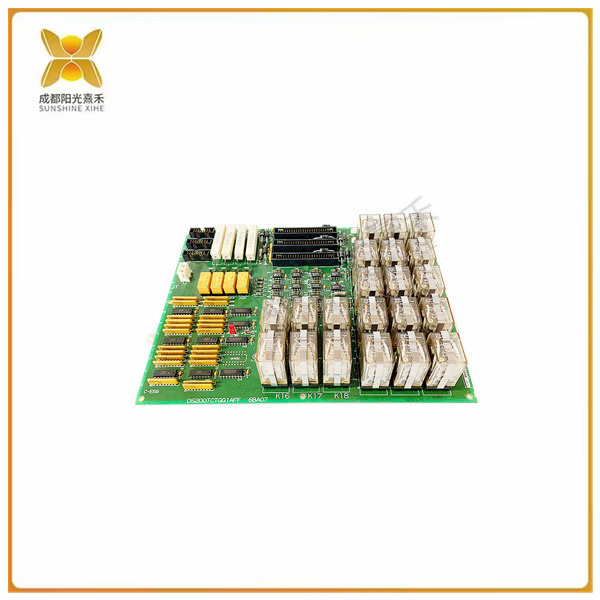

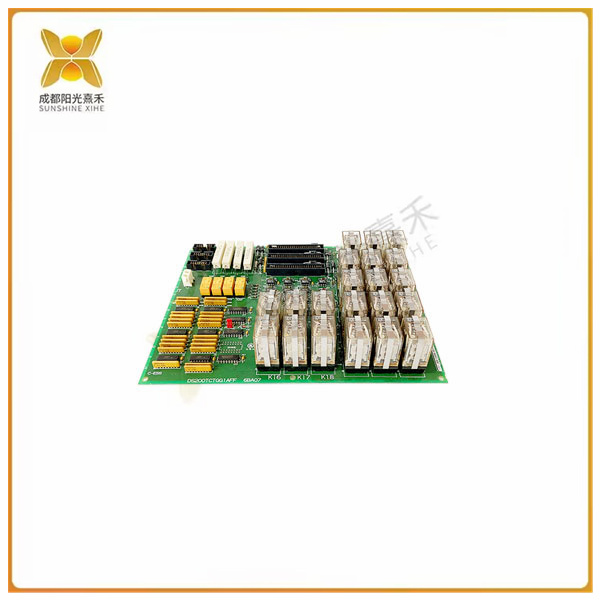

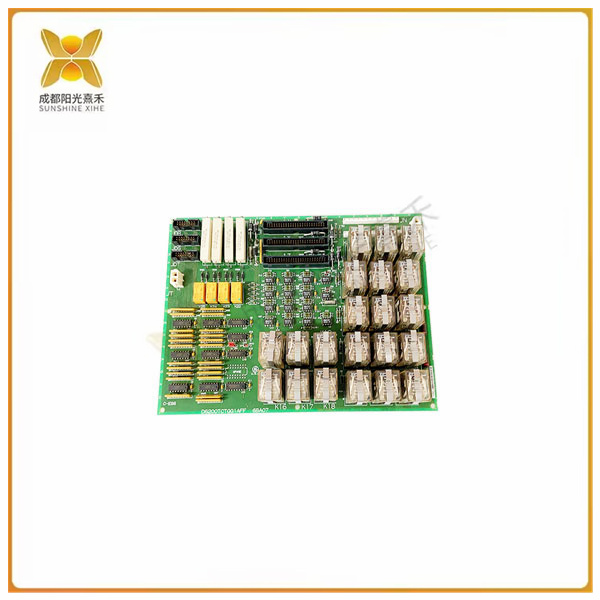

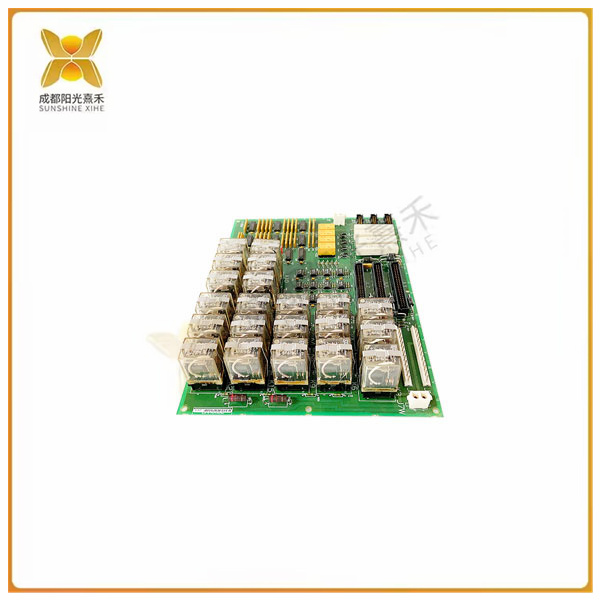

GE Simplex Trip Board DS200TCTGG1AFF裝有 21 個插入式繼電器。它還具有 3 個 50 針連接器和 2 個 12 針連接器。分配給 50 針連接器的 ID 為 JLY、JLX 和 JLZ。分配給 12 針連接器的 ID 是 JN 和 JM。

21 個插入式繼電器的 ID 以 K 為前綴，以數字結尾。數字按從 1 開始的順序排列。一些 ID 是 K1、K5、K10 和 K21。繼電器卡入電路板上，并用金屬帶幫助就位。要卸下繼電器，請拆下金屬帶并將繼電器從連接器中拉出。要安裝繼電器，請將其與連接器對齊并將其壓入連接器。然后，將金屬帶的一端夾到連接器上，將金屬帶排列在繼電器的頂部，然后將其夾在連接器的另一側。

DS200TCTGG1AFF。與熟悉驅動器安裝并具有連接到驅動器的電源經驗的工程師或安裝人員進行溝通。通過斷開保險絲或根據需要通過其他方式禁用電源。在繼續操作之前，請使用測試設備測試驅動器內部的電流。斷開電纜與主板的連接，并繪制電纜的位置圖，以便在重新安裝主板時將電纜連接到正確的連接器。

 >>>>>型號:DS200TCTGG1AFF 裝有 21 個插入式繼電器

【英文介紹】

The GE Simplex Trip Board DS200TCTGG1AFF is equipped with 21 plug-in relays. It also features three 50-pin connectors and two 12-pin connectors. The ids assigned to 50-pin connectors are JLY, JLX, and JLZ. The ids assigned to the 12-pin connector are JN and JM.

The ID of the 21 plug-in relays is prefixed with K and ends with a number. The numbers are listed in order starting from 1. Some ids are K1, K5, K10, and K21. The relay snaps into the circuit board and is helped in place by a metal strap. To remove the relay, remove the metal band and pull the relay out of the connector. To install the relay, align it with the connector and press it into the connector. Then, clip one end of the metal band to the connector, arrange the metal band on top of the relay, and clip it to the other side of the connector.

DS200TCTGG1AFF. Talk to an engineer or installer who is familiar with driver installation and has experience with the power supply connected to the drive. Disable the power supply by disconnecting the fuse or by other means as needed. Before proceeding, test the current inside the drive using a test device. Disconnect the cable from the motherboard and plot the cable's location so that you can connect the cable to the correct connector when reinstalling the motherboard.
