>>>>>型號:IC697CPM790-GD 可編程邏輯控制器 支持三重模塊化冗余

【功能描述】

IC697CPM790是90-70系列可編程邏輯控制器（PLC）CPU。該CPU是一個單插槽寬的模塊，專門用于關鍵應用，例如緊急停機系統、火災、燃?xì)夂推渌麘?yīng)用。該CPU通過整合獨立的C程序來支持三重媒體冗余（TMR），以啟用自動測試?yán)獭?/p>

該IC697CPM790具有1 MB的電池備份內存，最高512KB可供使用梯形圖編程語言配置的用戶程序使用。當配置為單工模式時，此CPU支持多達12K的任意組合的離散輸入和輸出點;2048個投票的離散輸入和2048個投票的離散輸出。同樣，該IC697CPM790能夠處理高達8K的模擬輸入和輸出，在單工模式下運行時可處理任意組合的模擬輸入和輸出，并具有1024個投票模擬輸入。它配備了時鐘速度為80486 MHz的2DX64微處理器。該CPU具有相對較快的掃描速率，每個布爾函數0.4微秒，適用于關鍵應用。

該IC697CPM790支持三重模塊化冗余（TMR），用于使系統不會停機。這種TMR設置基本上由三重PLC機架組成，每個機架具有一（1）個IC697CPM790 CPU、三重Genius I/O總線，以及三重輸入傳感器和三重輸出負載。

IC697CPM790配有一（1）個15針sub-D連接器，可與RS485兼容設備通信。其他形式的通信，例如連接到編程計算機，可以使用部件號為IC690ACC900的RS-422/RS-485至RS-232轉換器或部件號為IC690ACC901的RS-232至RS-422微型轉換器來建立。

 >>>>>型號:IC697CPM790-GD 可編程邏輯控制器 支持三重模塊化冗余

【英文介紹】

The IC697CPM790 is a 90-70 series Programmable Logic controller (PLC) CPU. The CPU is a single slot wide module designed for critical applications such as emergency shutdown systems, fire, gas and other applications. The CPU supports triple media redundancy (TMR) by integrating separate C programs to enable automated test routines.

The IC697CPM790 has 1 MB of battery backup memory and up to 512KB is available for user programs configured using the ladder diagram programming language. When configured in simplex mode, this CPU supports any combination of discrete input and output points up to 12K; Discrete input of 2048 votes and discrete output of 2048 votes. Similarly, the IC697CPM790 is capable of handling analog inputs and outputs up to 8K, can handle any combination of analog inputs and outputs when run in simplex mode, and has 1024 voting analog inputs. It is equipped with a 2DX64 microprocessor with a clock speed of 80486 MHz. The CPU has a relatively fast scan rate of 0.4 microseconds per Boolean function, which is suitable for critical applications.

The IC697CPM790 supports Triple modular redundancy (TMR) for system downtime. This TMR setup essentially consists of triple PLC racks, each with one (1) IC697CPM790 CPU, triple Genius I/O bus, and triple input sensors and triple output loads.

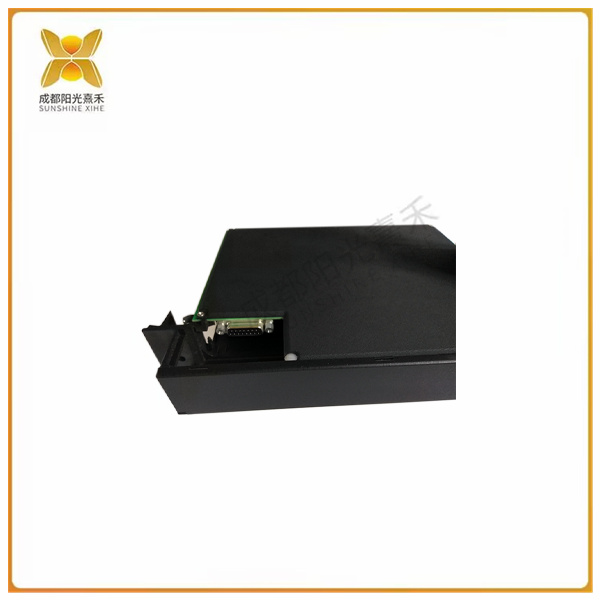

The IC697CPM790 is equipped with one (1) 15-pin sub-D connector for communication with RS485 compatible devices. Other forms of communication, such as connection to a programmed computer, can be established using RS-422/RS-485 to RS-232 converters with part number IC690ACC900 or RS-232 to RS-422 microconverters with part number IC690ACC901.
