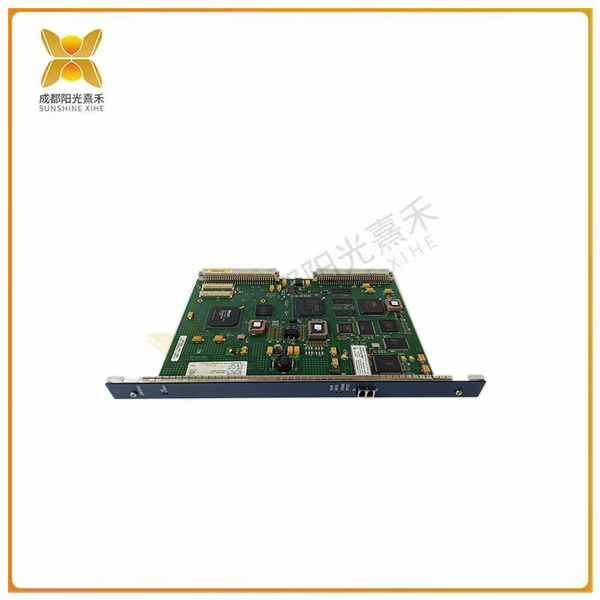

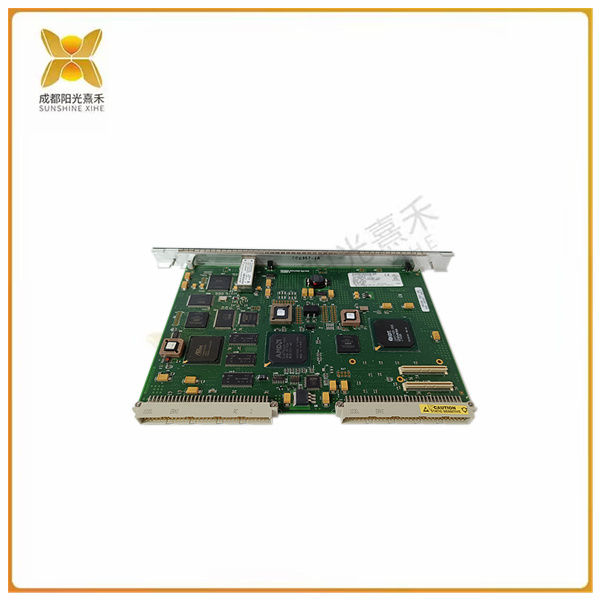

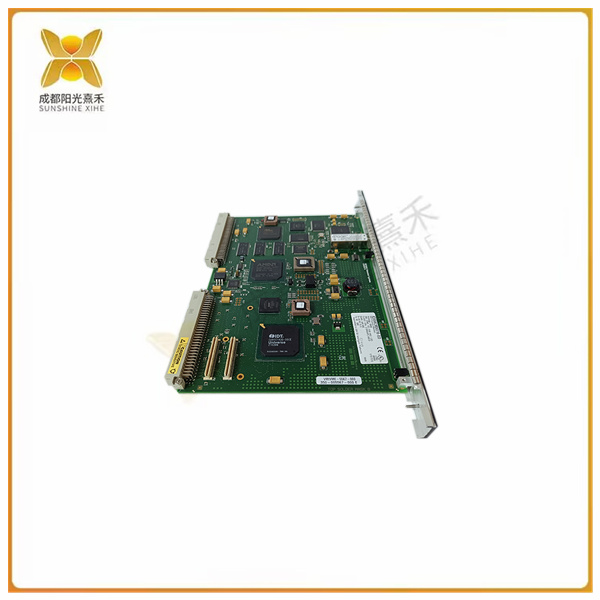

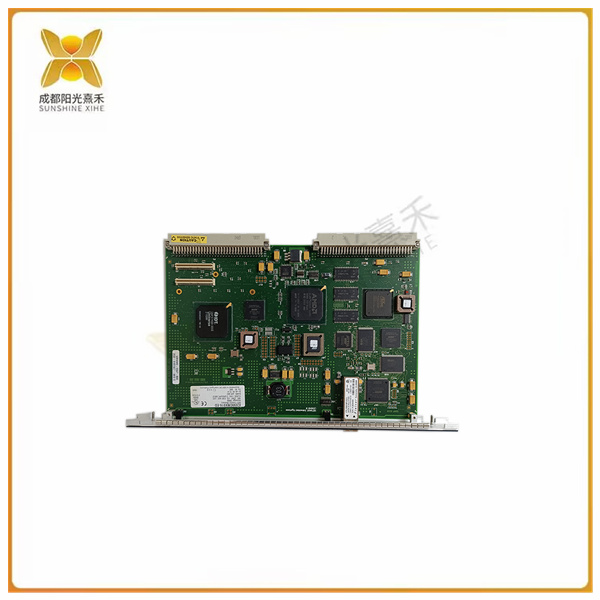

>>>>>型號:IC698CMX016-ED RX7i控制內存交換模塊 共享確定性數據

【功能描述】

IC698CMX016是PACSystems RX7i控制內存交換模塊，由艾默生自動化（以前由GE智能平臺(GE IP)）制造。該模塊用于通過光纖網絡在PLC之間共享確定性數據。該模塊是一個單插槽模塊，具有16 MB反射內存，具有奇偶校驗功能。它有一個專為L(zhǎng)C型連接器設計的光纖端口，支持2.12 Gbaud數據傳輸。該模塊支持通過FO電纜的菊花鏈連接最多連接256個節點。

IC698CMX016是來自可編程自動化控制器(PAC)的PACSystem RX7i平臺的控制內存交換模塊。該組件本質上是一個內存模塊，但是IC698CMX016的主要功能是使用反射內存技術通過光纖網絡在PLC和兼容設備之間提供確定性的數據共享。

IC698CMX016的通信接口包括一個LC光纖端口，支持多模光纖介質上2.12 Gbaud的傳輸速度，最大距離為300米或984.25英尺支持的動態數據包大小范圍為4-64字節，最大網絡傳輸速率為43 MB 4字節數據包中的/秒到64字節數據包中的174 MB/秒。該內存模塊能夠與每個網絡多達256個節點進行通信，并支持冗余傳輸模式操作。

 >>>>>型號:IC698CMX016-ED RX7i控制內存交換模塊 共享確定性數據

【英文介紹】

The IC698CMX016 is a PACSystems RX7i control memory switch module manufactured by Emerson Automation (formerly GE Intelligent Platform (GE IP)). The module is used to share deterministic data between PLCS over a fiber optic network. The module is a single slot module with 16 MB of reflected memory with parity. It has a fiber optic port designed for LC type connectors and supports 2.12 Gbaud data transfer. The module supports the connection of up to 256 nodes through the Daisy chain connection of the FO cable.

The IC698CMX016 is a control memory switch module for the PACSystem RX7i platform from the Programmable Automation Controller (PAC). The component is essentially a memory module, but the main function of the IC698CMX016 is to provide deterministic data sharing between the PLC and compatible devices over a fiber optic network using reflected memory technology.

The IC698CMX016 communication interface includes an LC fiber port that supports 2.12 Gbaud transfer speeds over multimode fiber media, a maximum distance of 300 meters or 984.25 feet, and supports dynamic packet sizes ranging from 4 to 64 bytes. Maximum network transfer rates range from 43 MB/ s in 4-byte packets to 174 MB/ s in 64-byte packets. The memory module is capable of communicating with up to 256 nodes per network and supports redundant transmission mode operation.
