>>>>>型號:IS220PAICH2A 模擬I/O包 電壓為27點4伏直流電
【功能描述】

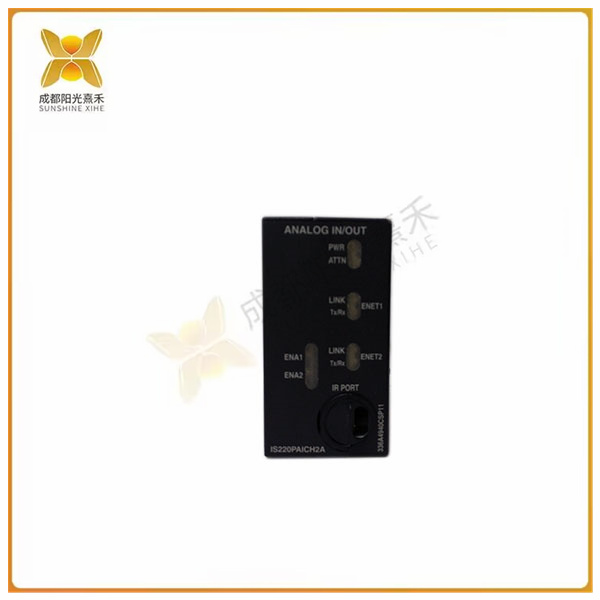

該IS220PAICH2A型號被描述為模擬I/O包，已獲準用于危險和非危險場所。在模型的正面，有四個指標。底部還有一個端口，被描述為I/O端口。PAIC電池組可以使用多種電壓，PAIC電池組的最小電壓為27點4伏直流電。
由于IS220PAICH2A套件能夠在許多地點使用，因此獲得了各種認證，其中一些是危險場所、一區二組IIC、一類二區A、B、C、D組和ATEX二區、IIC組和非危險場所。以下認證用于地點，UL E207685和UL DEMKO 12 ATEX 1114875X，請注意UL E207685認證在許多地點使用。
IS220PAICH2A單元可以使用三種型號，即IS200STAIH1A和IS200STAIH2A以及IS20TBAIH1C型號。所有這些型號都被稱為輸入輸出端子板。
PAIC I/O包的典型位置將位于兩個可用VME機架之一中，即13或21個插槽機架。請注意，該裝置通常與三重模塊化冗余架構系統一起使用。TMR系統有一個單獨的控制模塊、I/O網絡和主處理器卡。
>>>>>型號:IS220PAICH2A 模擬I/O包 電壓為27點4伏直流電
【英文介紹】
When were the IS215VCMIH2C and Mark VI control systems first released?
The Mark VI was one of the last Speedtronic series to be released by GE. From the late 1960s (MKI) to the 1990s (MKVI and MKVIe), this series of gas turbine/steam turbine management systems was developed in many iterations with the main goal of improving the efficiency of turbine systems through reliable management, good design and the best emerging technologies. The IS215VCMIH2C was released by GE Energy and GE Industrial Solutions during the production of the Mark VI control system.
Product description
The IS215VCMIH2C is designed as a VME communication card in the GE Mark VI turbine control system and is essential for the correct functioning of the entire system. The VCMI VME communication board allows the input/output (I/O) card to communicate with other I/O cards mounted on the VME backplane, expansion rack mounted I/O cards, I/O backup protection module, triple redundancy control module, and main processor module.
The IS215VCMIH2C card is also broadly referred to as the VME bus master controller. The PCB connects the communication between the I/O board and the controller. It also acts as a communication interface for the System Control Network (IONet).
The IS215VCMIH2C has four built-in port connections placed on its front panel. These include an RS-232C serial port, Type D plug connectors, and three IONet 10Base2 Ethernet ports. Each IONet connector is associated with three LED indicators labeled TX/RX/CD. The board has additional LED indicators labeled Status, Failure, Run, and 1, 2, 4, and 8. The former is located above the reset switch (button), while the latter is located directly below the serial port.
