【功能描述】

標記為離散I/O包的IS220PDIAH1A型號也用于Mark VI系列和YDIA離散輸入模塊。PDIA模型可以使用幾種不同的相關端子板，其中包括：

IS200TBCIH4C

IS200STCIH1A

IS200STCIH8A

IS200TBCIH2C

IS200TCIH2A

這些型號都與PDIA配合使用，以批準在危險場所使用。在危險環境中使用時，需要特定的認證。認證ULE207685用于非危險、I類2區IIC組和I類2類組A、B、C和D位置。在ATEX Zone 2 Group IIC場所使用時需要特定的認證，該認證為UL DEMKO 12 ATEX 1114875X。

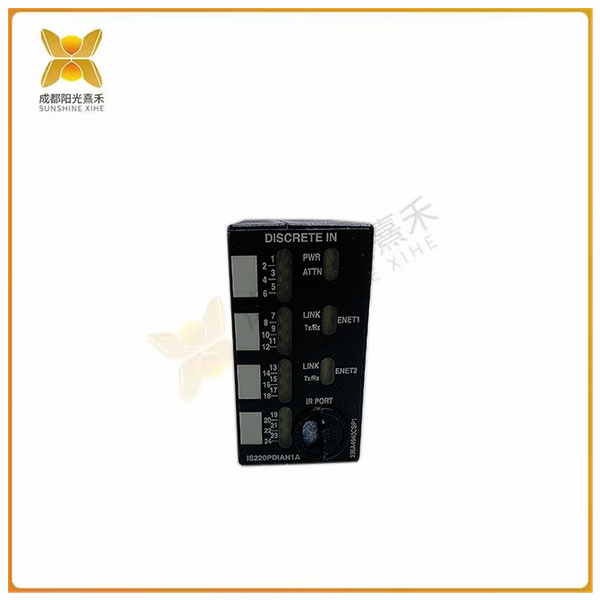

與Mark VI系列中的其他型號相比，IS220PDIAH1A不一定具有特定的面板，因為它是一個I/O包。在設備的正面，有七個指示燈，在電池組的右側，每組三個，電源指示燈和鏈路指示燈兩個，一個指示ENet1，另一個表示ENet2。在這三個指示燈下方，有一個以太網端口，用于將模型連接到以太網，以便于以太網通信。

IS220PDIAH1A包具有位置標準，其中兩個是UL 600790第5版和UL 60079-15第3版，用于I類2區IIC組。此信息可以在GEH-6725 Mark VI控制設備Hazloc手冊中找到，該手冊位于上面的手冊選項卡下。

 >>>>>型號:IS220PDIAH1A 離散輸入模塊 具有位置標準

【英文介紹】

When were the IS215VCMIH2C and Mark VI control systems first released?

The Mark VI was one of the last Speedtronic series to be released by GE. From the late 1960s (MKI) to the 1990s (MKVI and MKVIe), this series of gas turbine/steam turbine management systems was developed in many iterations with the main goal of improving the efficiency of turbine systems through reliable management, good design and the best emerging technologies. The IS215VCMIH2C was released by GE Energy and GE Industrial Solutions during the production of the Mark VI control system.

Product description

The IS215VCMIH2C is designed as a VME communication card in the GE Mark VI turbine control system and is essential for the correct functioning of the entire system. The VCMI VME communication board allows the input/output (I/O) card to communicate with other I/O cards mounted on the VME backplane, expansion rack mounted I/O cards, I/O backup protection module, triple redundancy control module, and main processor module.

The IS215VCMIH2C card is also broadly referred to as the VME bus master controller. The PCB connects the communication between the I/O board and the controller. It also acts as a communication interface for the System Control Network (IONet).

The IS215VCMIH2C has four built-in port connections placed on its front panel. These include an RS-232C serial port, Type D plug connectors, and three IONet 10Base2 Ethernet ports. Each IONet connector is associated with three LED indicators labeled TX/RX/CD. The board has additional LED indicators labeled Status, Failure, Run, and 1, 2, 4, and 8. The former is located above the reset switch (button), while the latter is located directly below the serial port.
