>>>>>型號:IS420ESWBH3A 工業以太網交換機 無任何光纖端口
【功能描述】

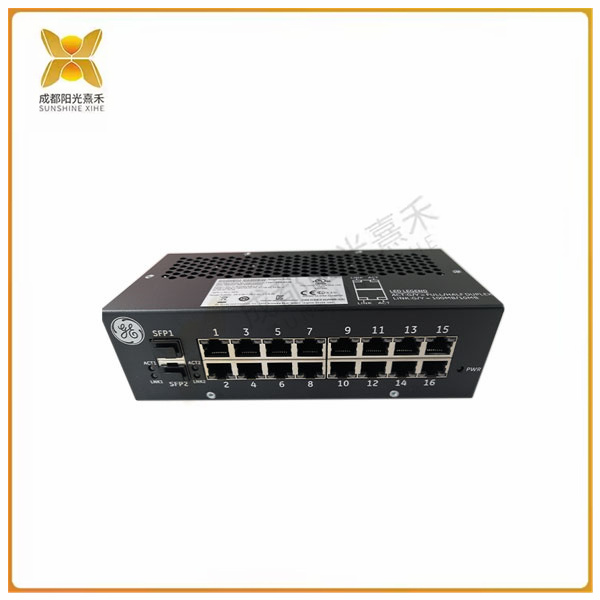

工業以太網交換機IS420ESWBH3A是通用電氣設計的Mark VIe安全控制系統的一部分。該交換機沒有任何光纖端口，但有16個銅端口，銅端口是10/100Base-TX RJ45端口。交換機的主要操作是作為一級以太網交換機執行，其核心是緩沖組播和廣播數據包的能力。應該有足夠的空間來允許每個端口緩沖一個數據包;如果多個傳入流被發送到交換機，它只能接受多個流中的一個傳入流，并將緩沖剩余的流以供以后傳輸。

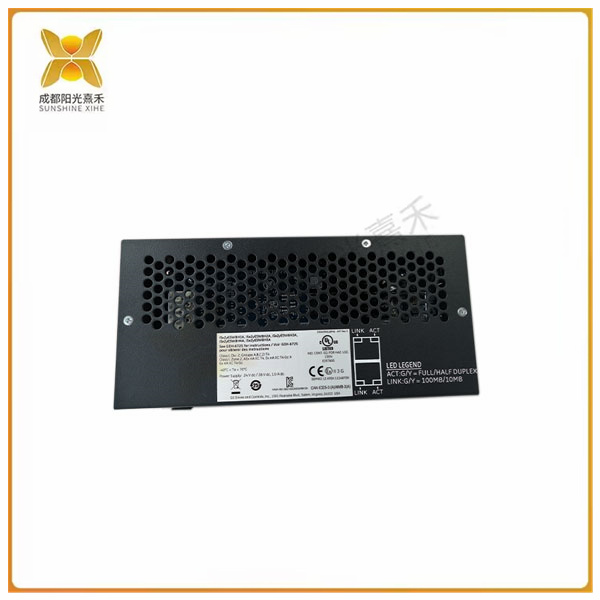

IS420ESWBH3A開關上有LED指示燈。有一個電源LED，其余LED是活動和鏈接功能。當鏈路LED呈黃色常亮?xí)r，表示正在使用10 MB鏈路，當綠色常亮?xí)r表示正在使用100 MB鏈路，無LED燈表示沒有鏈路?；顒覮ED的顏色也是綠色和黃色，但它們會閃爍，當LED閃爍綠色時，表示活動處于全雙工狀態，當閃爍黃色時，活動處于半雙工狀態。
IS420ESWBH3A開關可以通過多種方式安裝，開關可以采用DIN導軌安裝在平行或垂直應用中，如果需要，也可以安裝在面板上。請注意，當開關安裝在DIN導軌上時，需要不同的夾子，即259B2451BVP1和259B2451BVP4夾子。
>>>>>型號:IS420ESWBH3A 工業以太網交換機 無任何光纖端口
【英文介紹】
The industrial Ethernet switch IS420ESWBH3A is part of the Mark VIe security control system designed by General Electric. The switch does not have any fiber ports, but has 16 copper ports, which are 10/100Base-TX RJ45 ports. The primary operation of the switch is performed as a Tier 1 Ethernet switch, the core of which is the ability to buffer multicast and broadcast packets. There should be enough space to allow one packet buffering per port; If multiple incoming streams are sent to the switch, it can only accept one of the multiple incoming streams and will buffer the remaining streams for later transmission.
The IS420ESWBH3A switch has an LED indicator. There is a power LED and the rest of the leds are active and link functions. When the link LED is steady yellow, it means that the 10 MB link is in use, when the green is steady on, it means that the 100 MB link is in use, and no LED light means that there is no link. The color of the active LED is also green and yellow, but they will flash, when the LED flashes green, it means that the activity is in a full duplex state, and when it flashes yellow, the activity is in a half duplex state.
The IS420ESWBH3A switch can be installed in a variety of ways, the switch can be mounted in parallel or vertical applications using DIN rails, or on a panel if required. Note that when the switch is mounted on a DIN rail, different clamps are required, namely 259B2451BVP1 and 259B2451BVP4 clamps.
>>>>>型號:IS420ESWBH3A 工業以太網交換機 無任何光纖端口
