>>>>>型號:IS420UCSBH1A UCSB控制器 控制安全系統
【功能描述】
產品描述

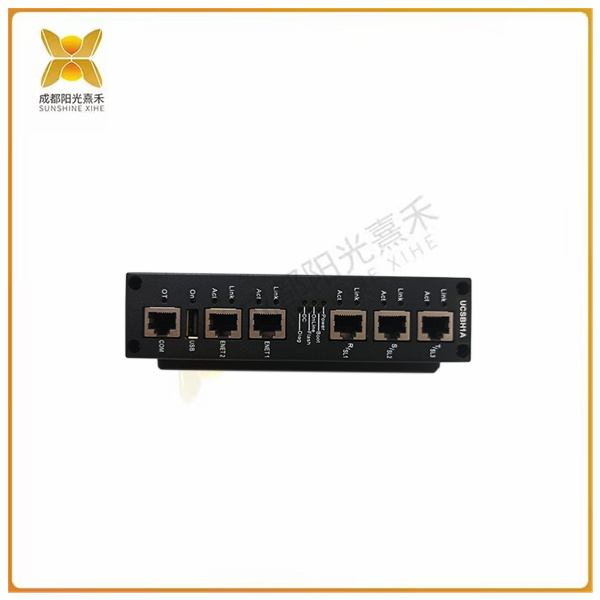

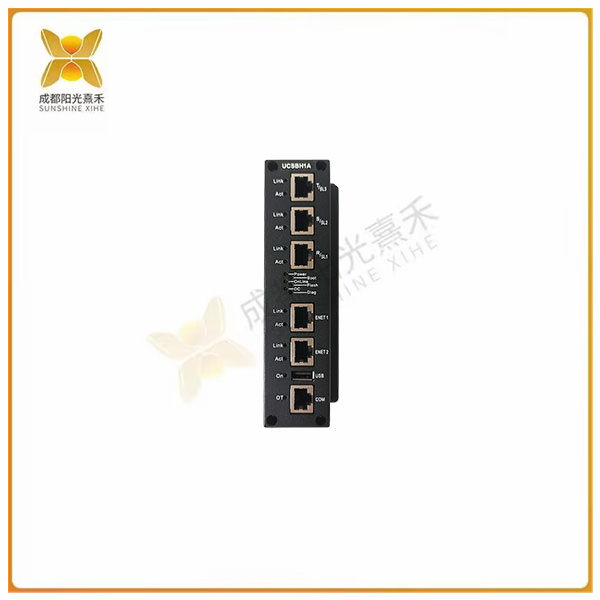

IS420UCSBH1A控制器是通用電氣制造的第一款UCSB控制器，是Mark VIe控制安全系統系列的一部分。該控制器類似于UCSC控制器，雖然它沒有相同的硬件，但操作該控制器所需的軟件幾乎相同。根據GEH-6725 Mark VIe和Mark VIeS，控制設備HazLoc說明指南，IS420UCSBH1A控制器標記為Mark VIe、LS2100e和EX2100e控制器。該控制器還使用了一個特定的微處理器，該設備中安裝的微處理器是600 MHz EP80579 Intel處理器。
在GEH-6725使用指南的第22頁上，有一個小表格，標明了為IS420UCSBH1A供電所需的電氣/電源額定值，額定值如下，最小電壓為18個直流電，最大為30伏直流電，額定功率為24伏和28伏直流電。該器件使用的最大額定電流為1.5ADC。

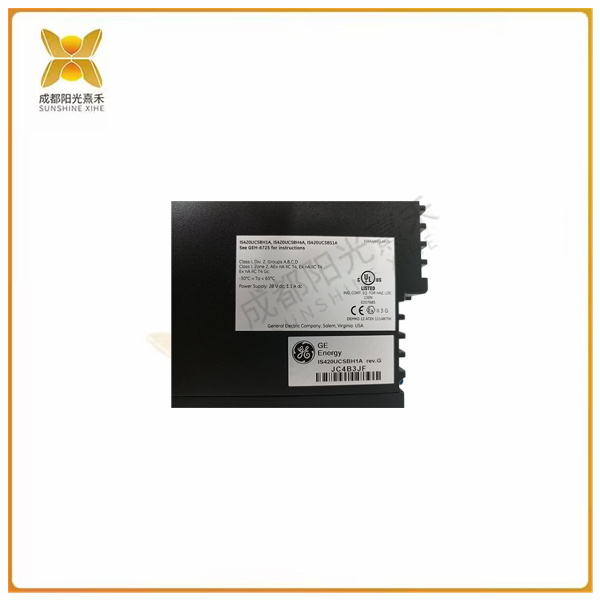

安裝時，將IS420UCSBH1A控制器安裝在危險和非危險場所都需要多項認證。例如，當安裝在ATEX 2區IIC組時，所需的認證是UL DEMKO 12 ATEX 1114875X。有關安裝在I類2區IIC組非危險和I類2區A、B、C和D組的控制器的所有認證都是相同的，這些位置的認證要求是UL E207685。
>>>>>型號:IS420UCSBH1A UCSB控制器 控制安全系統
【英文介紹】
Product description
The IS420UCSBH1A controller is the first UCSB controller manufactured by GE and is part of the Mark VIe family of Control safety Systems. The controller is similar to the UCSC controller, although it does not have the same hardware, the software required to operate the controller is nearly the same. According to GEH-6725 Mark VIe and Mark VIeS, HazLoc Instructions for Control Devices, IS420UCSBH1A controllers are labeled Mark VIe, LS2100e, and EX2100e controllers. The controller also uses a specific microprocessor, the microprocessor installed in the device is a 600 MHz EP80579 Intel processor.
On page 22 of the GEH-6725 Usage Guide, there is a small table indicating the electrical/power ratings required to power the IS420UCSBH1A. The ratings are as follows, with a minimum voltage of 18 DC, a maximum of 30 VDC, and a power rating of 24 and 28 VDC. The device uses a maximum rated current of 1.5ADC.
When installing, multiple certifications are required to install the IS420UCSBH1A controller in both hazardous and non-hazardous locations. For example, when installed in the ATEX Zone 2 IIC group, the required certification is UL DEMKO 12 ATEX 1114875X. All certifications are the same for controllers installed in Class I 2 Zone IIC Group Non-hazardous and Class I 2 Zone A, B, C and D, and the certification requirement for these locations is UL E207685.
