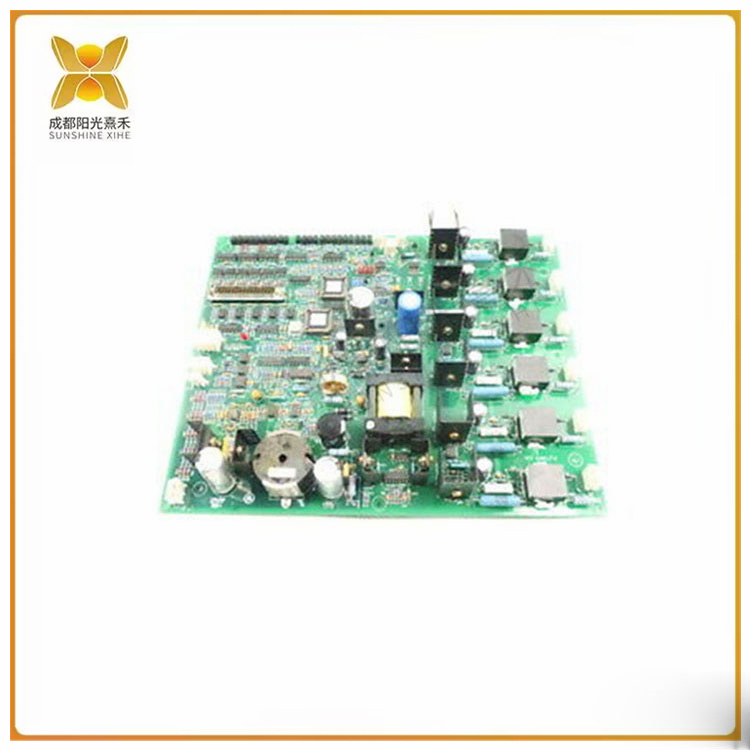

>>>>>型號:IS200EGPAG1BCA 柵極脈沖放大器板 連接電源轉換模塊
【功能描述】
柵極脈沖放大器板編號IS200EGPAG1BCACA位于電源轉換柜內，可連接電源轉換模塊。該模塊是標在橋接器和保護板/模塊下的電路板之一，雖然該電路板可以獨立運行，但通常需要從其中一個EPDM模塊獲取電源。
IS200EGPAG1BCACA板接收來自安裝在SCR散熱器上的兩個熱敏開關的反饋。這些開關在報警電平和跳閘電平時觸發和打開，并直接連接到IS200EGPAG1BCACA。開關在觸發之前必須達到的溫度是190°F的跳閘水平和170°F的報警水平。如果只有一個開關打開，則開關可以單獨打開或一起打開，則發生有關電橋的超溫報警，如果兩個開關都打開，則表明發生了跳閘和故障。
IS200EGPAG1BCACA板有五個跳線，這些跳線允許用戶選擇所需的特定應用配置，并在安裝前輕松調整跳線配置。
關于IS200EGPAG1BCACA的常見問題
AX Control能提供什么，因?yàn)樗cIS200EGPAG1BCACA柵脈沖放大器板有關？
AX Control將購買、出售或修理IS200EGPAG1BCACA板，并且通常貨架上有剩余庫存可供報價。IS200EGPAG1BCACA柵脈沖放大器板的銷售和維修均提供3年保修。請通過電話或電子郵件聯系我們的銷售團隊以獲取快速報價。
IS200EGPAG1A和IS200EGPAG1BCACA上的LED指示燈是否相同？
是的！IS200EGPAG1BCACA板上的LED還用于指示進入電橋的電流狀態、線路濾波器、柵極電源、輸出點火、電橋溫度、報警/故障條件和冷卻風扇旋轉。
在EX2100系列中，有許多不同類型的印刷線路板。IS200EGPAG1BCACA模型屬于哪一類？
IS200EGPAG1BCACA型號屬于印刷線路板的橋接和保護板/模塊。
IS200EGPAG1A板和IS200EGPAG1BCACA板之間有什么區別嗎？
根據GEH-6632 EX2100勵磁控制用戶指南，兩塊EGPA板之間沒有區別。
>>>>>型號:IS200EGPAG1BCA 柵極脈沖放大器板 連接電源轉換模塊
【英文介紹】
IS200EGDMH1AFF is an exciter field grounding detection module, which is the functional abbreviation of EGDM.
During the installation, the module will be installed on the backplane of the excitation power supply or the terminal block of the exciter. It is used to detect the ground status of the excitation magnetic field and output the detection result to the control system or display instrument to realize the ground protection and control of the excitation.
It should be noted that the above information is for reference only, if necessary, it is recommended to consult professional and technical personnel.
The difference between IS200EGDMH1ADF and IS200EGDMH1AFF is that the former is the excitation field grounding detection module, and the latter is the excitation field grounding detection module.
During the installation process, the former is installed on the backplane of the excitation power supply or the terminal block of the exciter, which is used to detect the ground state of the excitation magnetic field, and output the detection result to the control system or display instrument to realize the ground protection and control function of the exciter. The latter is mounted on the excitation power backplane rack, close to the EPSM module, and operates on stand-alone systems, which require one EGDM, and redundant systems, which require three EGDM modules.
