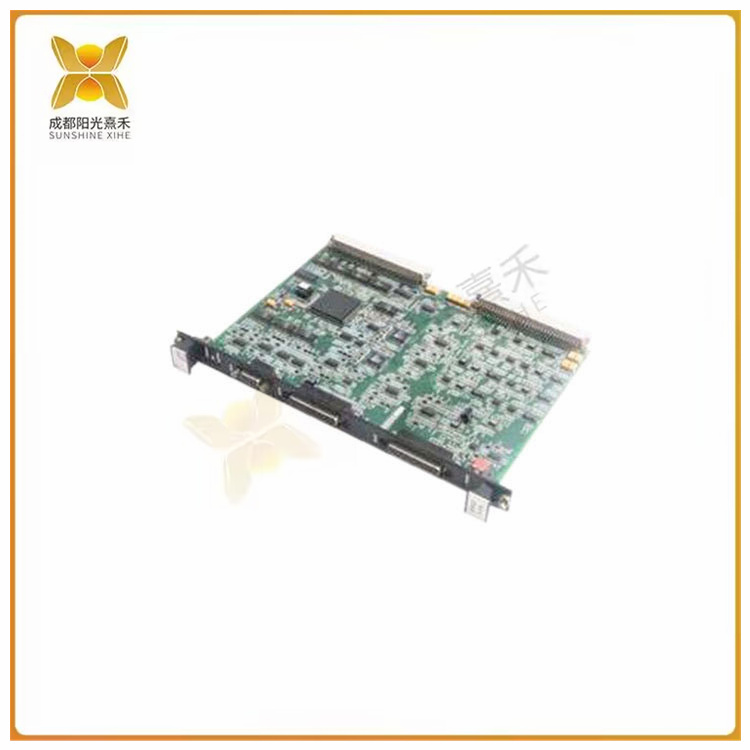

>>>>>型號: IS200ERIOH1AAA 系統I/O提供I/O接口 勵磁穩壓器背板
【功能描述】
IS200ERIOH1AAA板由通用電氣公司生產，用于EX2100勵磁穩壓器和整個Mark VI系列，為客戶和系統I/O提供I/O接口。它為單工和冗余的調壓器控制系統提供這些功能。對于單工應用，I/O安裝在ERBP（勵磁穩壓器背板）中，并連接ECTBG2端子板和EPCT端子板的客戶I/O信號。該IS200ERIOH1AAA還能夠連接EROC（勵磁穩壓器選件卡）和ERDD（勵磁穩壓器接口和動態放電）的系統I/O信號。對于冗余應用，它還連接系統I/O信號，用于ERRR（勵磁穩壓器冗余繼電器）。
勵磁穩壓器I/O通過ERBP或ERRB背板連接到EROC和ERDD板，前者用于單工應用，后者用于冗余應用。此外，ERIO通過兩個25針連接器連接到ERBP和ERRB。FPGA（現場可編程門陣列）控制存儲和數據采集到DPM（雙端口存儲器）中。該特定單元是原始部件的修訂版，由型號末尾的“A”表示。
關于IS200ERIOH1AAA的常見問題
什么是IS200ERIOH1AAA？
ERIO板為EX2100穩壓器控制系統中的系統I/O和客戶I/O提供I/O接口。它同時服務于冗余和單工應用程序，每個應用程序的功能和連接方式略有不同。
此I/O卡所屬的EX2100勵磁控制系統是什么？
EX2100勵磁控制系統由通用電氣生產，為新建和改造的燃?xì)?、蒸汽或水力發電提供先進的管理方案。它結合了硬件和軟件元素，以確保系統安全并執行火焰檢測、信號縮放等操作。EX2100旨在與通用電氣的Speedtronic Mark VI高效配合使用。它提供鍵盤、熱敏電阻系統等。
>>>>>型號: IS200ERIOH1AAA 系統I/O提供I/O接口 勵磁穩壓器背板
【英文介紹】
IS200EGDMH1AFF is an exciter field grounding detection module, which is the functional abbreviation of EGDM.
During the installation, the module will be installed on the backplane of the excitation power supply or the terminal block of the exciter. It is used to detect the ground status of the excitation magnetic field and output the detection result to the control system or display instrument to realize the ground protection and control of the excitation.
It should be noted that the above information is for reference only, if necessary, it is recommended to consult professional and technical personnel.
The difference between IS200EGDMH1ADF and IS200EGDMH1AFF is that the former is the excitation field grounding detection module, and the latter is the excitation field grounding detection module.
During the installation process, the former is installed on the backplane of the excitation power supply or the terminal block of the exciter, which is used to detect the ground state of the excitation magnetic field, and output the detection result to the control system or display instrument to realize the ground protection and control function of the exciter. The latter is mounted on the excitation power backplane rack, close to the EPSM module, and operates on stand-alone systems, which require one EGDM, and redundant systems, which require three EGDM modules.
