>>>>>型號:IS200TDBTH6ABC 分立式單工板組件 帶有多個集成電路
【功能描述】
該IS200TDBTH6ABC是Mark VI分立式單工板組件。這種類型的PCB（印刷電路板）由通用電氣制造，用于該公司的Mark VI Speedtronic系列。Speedtronic控制系列用于管理各種復雜程度和尺寸的蒸汽輪機、燃?xì)廨啓C和水輪機。
IS200TDBTH6ABC只是我們庫存中可用的幾個不同版本的TDBT板之一。請務必檢查您當前的電路板，以確保您訂購的TDBT電路板版本適合您的特定應用。
IS200TDBTH6ABC包括一個前面板，就像許多其他Mark VI組件一樣。該面板包括兩個固定螺釘，用于在安裝后將電路板組件固定在機架中。前面板還包括兩個連接器和三個LED指示燈。面板上標有GE徽標和主板ID。

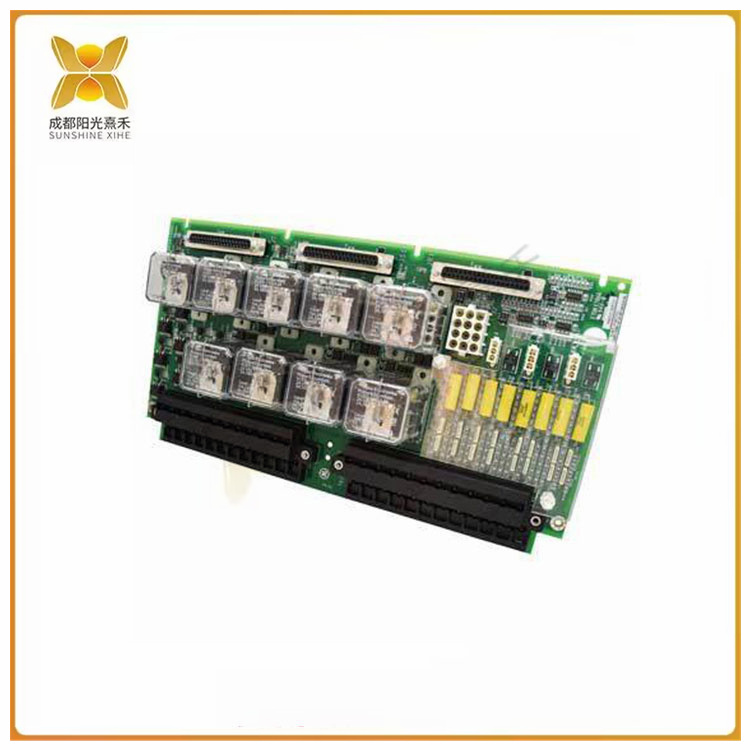

該板本身帶有多個集成電路、兩個背板連接器、測試點、繼電器和電阻器。還有許多各種設計的電容器。組件位于電路板的兩側。電路板邊緣包含有助于您放置和正確接線的代碼，但您還應該查閱該組件的原始文檔。這包括手冊和用戶指南。
>>>>>型號:IS200TDBTH6ABC 分立式單工板組件 帶有多個集成電路
【英文介紹】
IS200TBCIS2CCD Select the right board components need to consider the following factors:
Universality principle: If the selected components are widely used and verified, try to use less unpopular and biased chips to reduce development risks.
The principle of high cost performance: In the case of similar functions, performance and utilization rates, try to choose components with better prices to reduce costs.
The principle of convenient procurement: try to choose components that are easy to buy and have a short supply cycle.
The principle of sustainable development: try to choose components that will not be discontinued in a foreseeable time.
Replaceable principle: try to choose pin to pin compatible chip brands more components.
Principle of upward compatibility: try to choose components used in previous products.
Resource-saving principle: Try to use all the functions and pins of the components.
There is no difference between the IS200TBCIS2CCD circuit board and the circuit board, which is essentially the same.
The circuit board is only a designed and made substrate, and the circuit board refers to the circuit board that has been installed with various components.
Circuit board (PCB) alias: circuit board, PCB board, aluminum substrate, high-frequency board, ultra-thin circuit board, ultra-thin circuit board, printed (copper etching technology) circuit board and so on. Due to the continuous miniaturization and refinement of electronic products, the circuit board can make the circuit miniaturized and intuitive, which plays an important role in the mass production of fixed circuits and the optimization of the layout of electrical appliances, so it is more and more widely used.
