>>>>>型號:IS200TPROH1BCB 保護終端板 渦輪機控制裝置

【功能描述】

通用電氣（GE）開發了IS200TPROH1BCB保護終端板，作為Mark VI系列的一個組件，用于燃?xì)?蒸汽輪機管理和自動化。IS200TPROH1BCB是印刷電路板或PCB的一個版本。Mark VI系列的IS200TPROH1BCB和其他組件是更大的Mark系列渦輪機控制裝置的一部分。

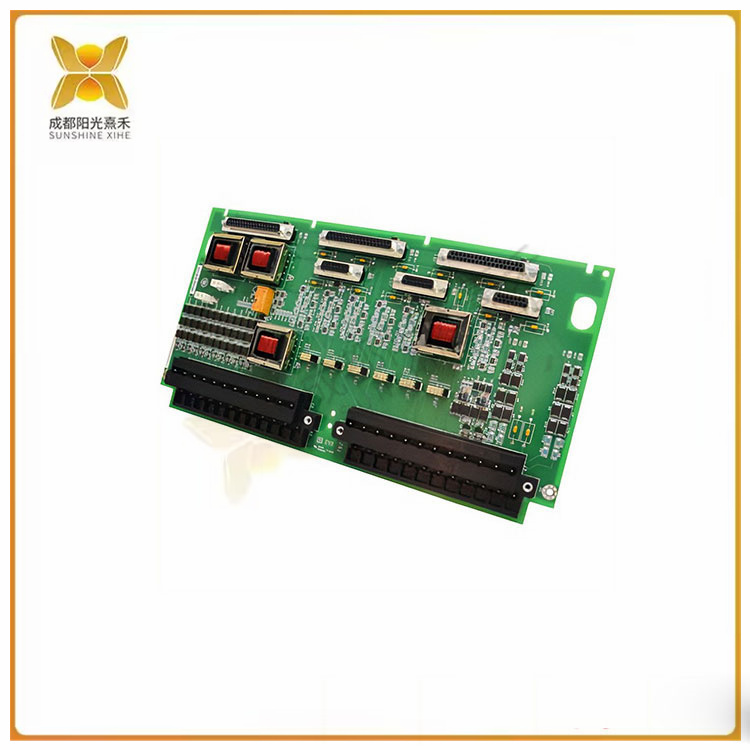

IS200TPROH1BCB PCB是矩形的。IS200TPROH1BCB上最突出的組件是兩（2）個接線端子和兩（2）個繼電器或接觸器。接線端子是黑色的，尺寸很大。它們垂直放置在IS200TPROH1BCB的左邊緣。IS200TPROH1BCB上的繼電器在IS200TPROH1BCB頂部的中心垂直配對。這些繼電器大多是紅色的，它們的頂部有黃色和黑色的部分。緊挨著左側這些繼電器的是兩（2）個紅色圓形MOV或金屬氧化物壓敏電阻。整個IS200TPROH1BCB中都有幾個小尺寸的黃色常亮電容器，主要位于電路板的下半部分。IS200TPROH1BCB的右邊緣襯有三（3）個中型插孔連接器端口，名稱為JZ1、JY1和JX1。這些連接器端口中多了三（3）個，它們比其他連接器端口?。ù蠹s是其他連接器的一半），已排在這些其他連接器端口的左側。較小的連接器端口已由名稱JZ5、JY5和JX5標識。三（3）個黑色可變電阻器或電位計位于IS200TPROH1BCB的右上方。

 >>>>>型號:IS200TPROH1BCB 保護終端板 渦輪機控制裝置

【英文介紹】

The IS200TDBTH6ACDCD is a device called a discrete simplex board. This is a form of printed circuit board or PCB manufactured by General Electric or GE. The IS200TDBTH6ACDCD is a component of GE's Mark VI series for steam and gas turbine control. The series is one of several that make up the Mark series. These systems are used to control turbine systems in a wide range of industries worldwide.

The IS200TDBTH6ACDCD prominently features a collection of 12 large black potentiometers, which are also known as variable resistors. The potentiometers are arranged in three (3) horizontal rows of four components each. A rectangular gray element is placed on either side of the potentiometer. The lower half of the IS200TDBTH6ACDCD is occupied by several rows of very small components. Two (2) rows of long round red elements, called MOV or metal oxide varistors, are arranged on the left side of the IS200TDBTH6ACDCD. At the very bottom of the IS200TDBTH6ACDCD near the center is a small white connector with three (3) ports. This connection can be used to connect other devices to the IS200TDBTH6ACDCD. Several small integrated circuits can be placed in the top half of the IS200TDBTH6ACDCD. Some of them are aligned horizontally in the center and others are aligned vertically in the upper right corner. There is one (1) small yellow capacitor in the center of the IS200TDBTH6ACDCD of the integrated circuit. Two (2) small yellow resistors are located at the bottom of the IS200TDBTH6ACDCD with one (1) black stripe in the middle.
