>>>>>型號:IS200TREAH2AED 印刷電路板渦輪機保護模塊【功能描述】 IS200TREAH2AED是一個端子板，與Mark VI Speedtronic渦輪機控制系統中的渦輪機保護模塊（VPRO）相關聯。Mark VI可以設置為單工或三重模塊化冗余編隊，使其能夠控制、保護和監控各種尺寸的渦輪機系統。該IS200TREAH2AED用于為每個渦輪機保護模

電話/Phone：18859254943 (微信同號)

郵箱/Email：sales@ygdcs.com

QQ：3561040004

在線咨詢

產品詳情

>>>>>型號:IS200TREAH2AED 印刷電路板渦輪機保護模塊

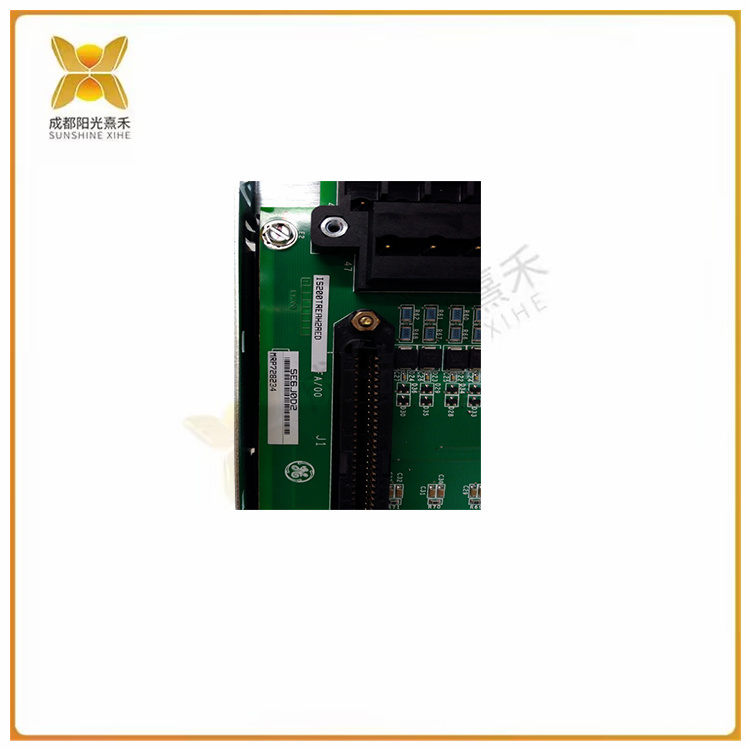

IS200TREAH2AED (2).jpg

【功能描述】

IS200TREAH2AED是一個端子板，與Mark VI Speedtronic渦輪機控制系統中的渦輪機保護模塊（VPRO）相關聯。Mark VI可以設置為單工或三重模塊化冗余編隊，使其能夠控制、保護和監控各種尺寸的渦輪機系統。

該IS200TREAH2AED用于為每個渦輪機保護模塊提供獨立的速度拾取器。然后，該模塊會高速處理它們。IS200TREAH2AED板還將線路電壓和發電機電壓輸入扇出到每個渦輪機保護模塊以實現同步，并接受軸速信號以提供緊急超速保護。

該IS200TREAH2AED由三個大型d-shell連接器和三個較小的d-shell連接器組成。在另一側，電路板有兩個端子排，每個端子帶有兩條螺釘連接線。在兩者之間，該板有兩個變壓器、兩個金屬氧化物壓敏電阻、跳線開關、集成電路、電阻器、電感器、電容器和二極管。該板沿邊緣和角落成型，并且在板體內也有幾個切口。它帶有多個代碼和標記以及條形碼。一些工廠制造的孔由感應材料環繞。
