>>>>>型號:IS200TSVCH1AJE 模擬輸入卡 具有各種各樣的電子元件
【功能描述】
IS200TBAIH1A是一種稱為模擬輸入卡的設備。這是一種PCB（印刷電路板）。該IS200TBAIH1A由通用電氣開發，作為Mark VI系列的組件設備。Mark VI 是 Speedtronic Mark 系列的一個版本。這些系統用于管理和自動化工業燃氣輪機和蒸汽輪機的運行。Mark VI 和 Mark 系列中的其他系列用于全球各行各業。

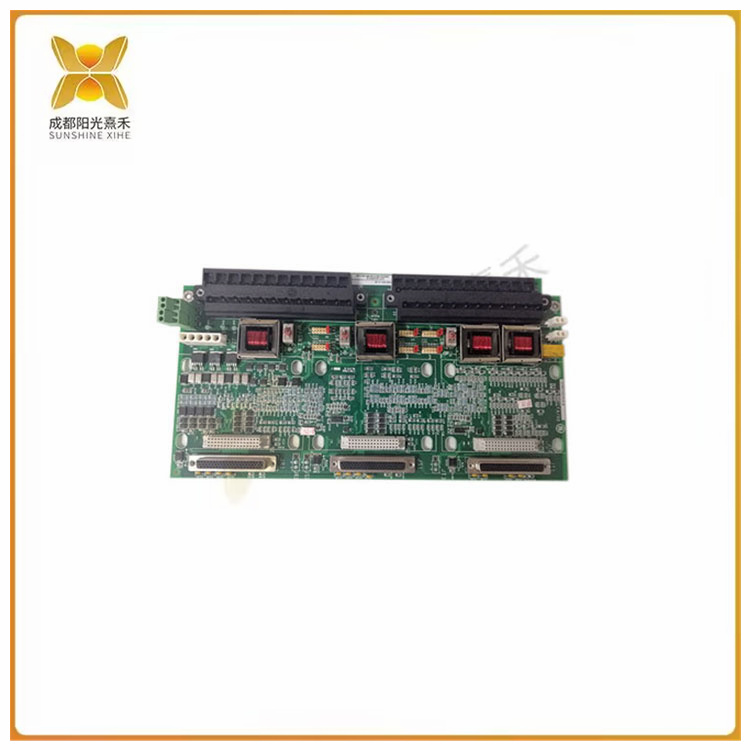

IS200TBAIH1A是一種長印刷電路板，具有各種各樣的電子元件。IS200TBAIH1A上最大的組件是兩個固定在左邊緣的長黑色接線端子。這些接線端子被標識為 TB1 和 TB2。兩個接線端子最多可包含十二 （12） 個看起來像立方體的銀色金屬端子。沿著IS200TBAIH1A的另一側是三 （3） 個長插孔連接器端口。每個連接器端口都有三十七 （37） 個小型母連接器，可用于將額外的組件或電路板連接到IS200TBAIH1A。連接器標記為 JT1、JS1 和 JR1。IS200TBAIH1A的中心由各種不同的組件占據。IS200TBAIH1A上至少有十 （10） 個晶體管，大部分排列在中心。十 （10） 個可變電阻器或電位計也沿IS200TBAIH1A中心對齊。在IS200TBAIH1A上可以看到二十 （20） 個成對排列的跳線引腳。每對跳線引腳都由一個紅色跳線連接。將成對的引腳連接在一起可以調整IS200TBAIH1A的功能。
>>>>>型號:IS200TSVCH1AJE 模擬輸入卡 具有各種各樣的電子元件
【英文介紹】
The IS200TBAIH1A is a device called an analog input card. This is a PCB (printed circuit board). The IS200TBAIH1A was developed by General Electric as a component device in the Mark VI series. The Mark VI is a version of the Speedtronic Mark series. These systems are used to manage and automate the operation of industrial gas and steam turbines. The Mark VI and other series in the Mark series are used in a variety of industries worldwide.
The IS200TBAIH1A is a long printed circuit board with a wide variety of electronic components. The largest components on the IS200TBAIH1A are the two long black terminals fixed to the left edge. These terminals are identified as TB1 and TB2. Two terminals may contain up to twelve (12) silver metal terminals that look like cubes. Along the other side of the IS200TBAIH1A are three (3) long jack connector ports. Each connector port has thirty-seven (37) small female connectors that can be used to connect additional components or circuit boards to the IS200TBAIH1A. Connectors are labeled JT1, JS1, and JR1. The center of IS200TBAIH1A is occupied by a variety of different components. There are at least ten (10) transistors on the IS200TBAIH1A, most of which are arranged in the center. Ten (10) variable resistors or potentiometers are also aligned along the center of the IS200TBAIH1A. Twenty (20) jumper pins arranged in pairs can be seen on the IS200TBAIH1A. Each pair of jumper pins is connected by a red jumper. Connecting pairs of pins together can adjust the functionality of the IS200TBAIH1A.
>>>>>型號:IS200TSVCH1AJE 模擬輸入卡 具有各種各樣的電子元件
