>>>>>型號:IS200TTURH1CFD 接觸端子板 微型電阻器

【功能描述】

IS200TTURH1CFD是一種稱為接觸端子板的設備。這是為Mark VI系列創建的PCB。Mark VI系列是通用電氣或GE的Mark系列中的幾個系列之一。這些系統旨在控制工業環境中燃?xì)廨啓C(jī)和蒸汽輪機的所有運行。

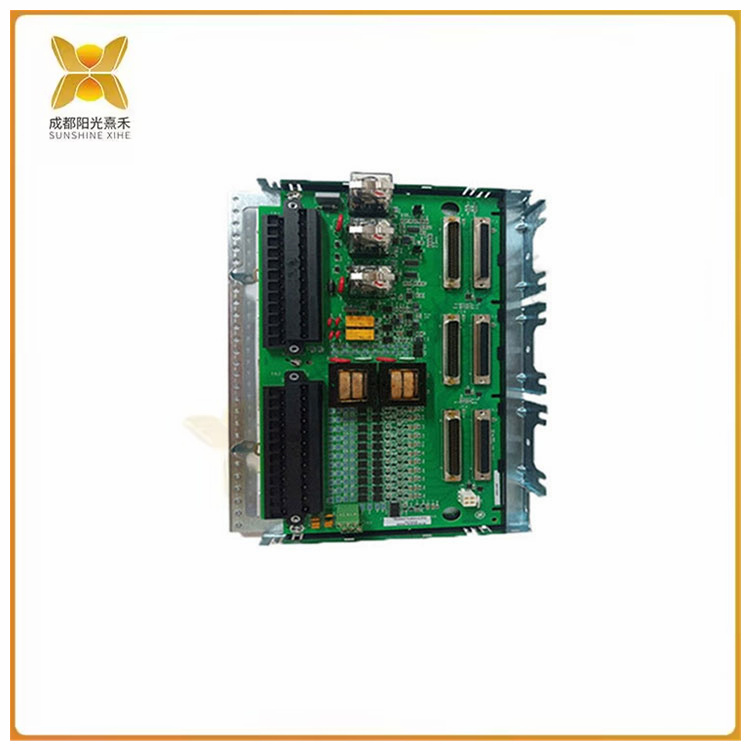

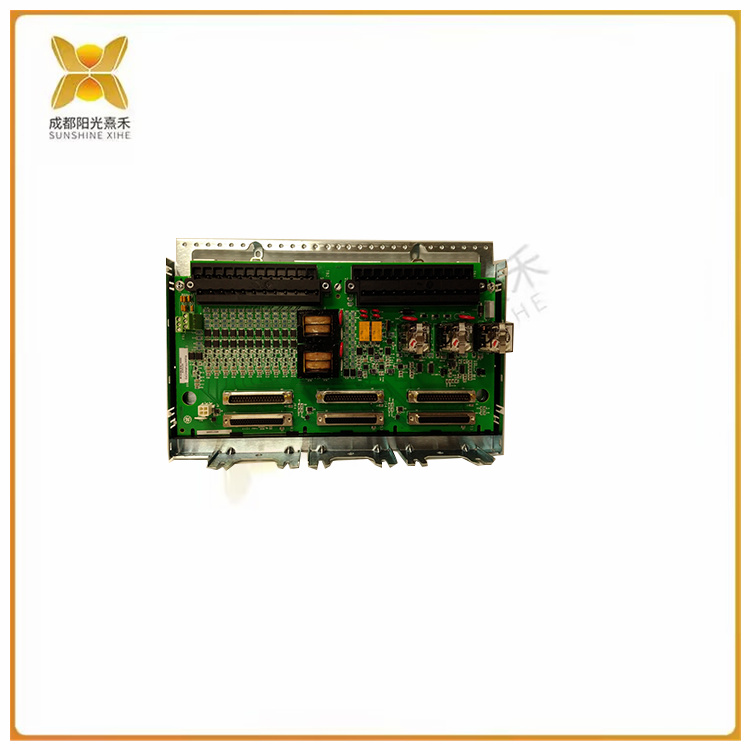

IS200TTURH1CFD是一個長電路板，具有各種不同的電子元件。兩（2）個非常大的黑色接線端子占據了IS200TTURH1CFD的左半部分。這些接線端子具有四十八（48）個銀金屬端子。這些端子由一系列從一到四十八的數字標識，每個接線端子中有二十四（24）個。IS200TTURH1CFD的右邊是一長串圓形電容器。這些電容器呈紅色常亮。這些接線端子旁邊排列著二十五（25）個電容器。位于IS200TTURH1CFD右邊緣的是三個插孔連接器端口，分別為銀色和黑色。每個連接器端口的右側是一個非常小的集成電路，標有字母U。另外兩（2）個白色連接器位于IS200TTURH1CFD頂部的中心。這兩個連接器都包含三（3）個端口，可用于將其他組件連接到IS200TTURH1CFD。在PCB中心的右側有一排非常長的微型電阻器。這條線幾乎橫跨IS200TTURH1CFD的整個長度。

 >>>>>型號:IS200TTURH1CFD 接觸端子板 微型電阻器

【英文介紹】

The IS200TBAIH1A is a device called an analog input card. This is a PCB (printed circuit board). The IS200TBAIH1A was developed by General Electric as a component device in the Mark VI series. The Mark VI is a version of the Speedtronic Mark series. These systems are used to manage and automate the operation of industrial gas and steam turbines. The Mark VI and other series in the Mark series are used in a variety of industries worldwide.

The IS200TBAIH1A is a long printed circuit board with a wide variety of electronic components. The largest components on the IS200TBAIH1A are the two long black terminals fixed to the left edge. These terminals are identified as TB1 and TB2. Two terminals may contain up to twelve (12) silver metal terminals that look like cubes. Along the other side of the IS200TBAIH1A are three (3) long jack connector ports. Each connector port has thirty-seven (37) small female connectors that can be used to connect additional components or circuit boards to the IS200TBAIH1A. Connectors are labeled JT1, JS1, and JR1. The center of IS200TBAIH1A is occupied by a variety of different components. There are at least ten (10) transistors on the IS200TBAIH1A, most of which are arranged in the center. Ten (10) variable resistors or potentiometers are also aligned along the center of the IS200TBAIH1A. Twenty (20) jumper pins arranged in pairs can be seen on the IS200TBAIH1A. Each pair of jumper pins is connected by a red jumper. Connecting pairs of pins together can adjust the functionality of the IS200TBAIH1A.
