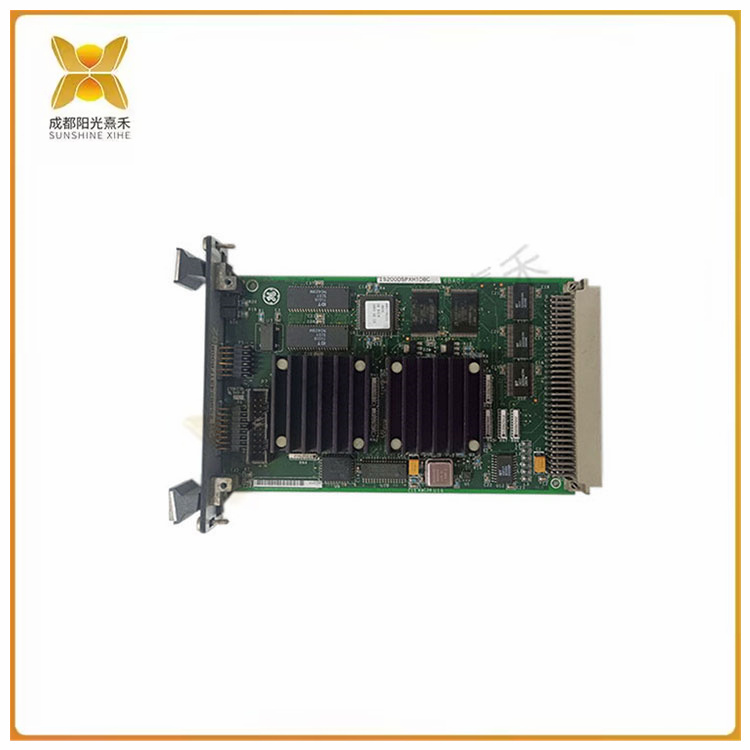

>>>>>型號:IS200DSPXH1DBC 數字信號處理器控制板 用于激勵控制

【功能描述】

IS200DSPXH1DBC 技術規格

制造者 GE工業系統

系列 Ex2100 勵磁控制

零件編號 IS200DSPXH1DBC

功能描述 數字信號處理器控制板

通常更容易通過其功能行業首字母縮略詞 DSPX 來識別;該IS200DSPXH1DBC是GE工業系統EX2100系列組件中使用的電路板組件，該系列組件用于激勵控制。DSPX 首字母縮略詞可以描述為功能首字母縮略詞，因為它的存在是為了描述組件的預期用途。 在這種情況下，IS200DSPXH1DBC用作數字信號處理器控制板。由于有多個不同版本的 DSPX 板可用，請確保您為您的系統訂購了此板的正確迭代版本。

硬件提示和規格

該IS200DSPXH1DBC包括一個 60 MHz 數字信號處理器、一個專用集成電路 （ASIC） 和標準存儲器組件。ASIC 提供自定義邏輯功能，并連接到嵌入在連接到電路板的前面板中的兩個 LED。這些 LED（一個紅色和一個綠色）有助于報警板故障，并分別標記為“狀態”和“故障”。

IS200DSPXH1DBC 具有多個 I/O 連接器。這包括一個背板連接器 （P1） 和一個位于電路板正面附近的垂直引腳連接器 （P7）。 此外，主板面板上還安裝了兩個連接器，由值得信賴的零售商 ERNI 制造。它們用作工程監控端口 （P6） 和 DSP 仿真器端口 （P5）。

在安裝此數字信號處理器控制板之前，請務必驗證此印刷電路板的尺寸是否與其安裝支架或組裝區域的尺寸相對應。這個特殊的 GE Industrial Systems 型號的實際印刷電路板長度約為 8.5 英寸，寬度約為 5 英寸。雖然這是真的，但制造商標記為 259B2431FBG08 的該控制板的外面板確實增加了 PCB 的寬度;使該產品的總寬度間隙約為 7 英寸。上述面板也大大增加了IS200DSPXH1DBC的一般厚度，總厚度增加到約一英寸。這是一種對靜電敏感的設備，在安裝和存放過程中應始終格外小心。

 >>>>>型號:IS200DSPXH1DBC 數字信號處理器控制板 用于激勵控制

【英文介紹】

IS200DSPXH1DBC Technical specifications

Manufacturer GE Industrial Systems

Series Ex2100 excitation control

Part number IS200DSPXH1DBC

Function Description Digital signal processor control board

Often more easily identified by its functional industry acronym DSPX; The IS200DSPXH1DBC is a circuit board assembly used in the GE Industrial Systems EX2100 series of components for excitation control. The DSPX acronym can be described as a functional acronym because it exists to describe the intended use of the component. In this case, the IS200DSPXH1DBC is used as a digital signal processor control board. Since there are several different versions of the DSPX board available, make sure you order the correct iteration of this board for your system.

Hardware tips and specifications

The IS200DSPXH1DBC includes a 60 MHz digital signal processor, an application-specific integrated circuit (ASIC), and standard memory components. The ASIC provides custom logic capabilities and is connected to two leds embedded in the front panel connected to the circuit board. These leds (one red and one green) help alert the board to failure and are labeled "status" and "fault," respectively.

The IS200DSPXH1DBC has multiple I/O connectors. This includes a backplane connector (P1) and a vertical pin connector (P7) located near the front of the board. In addition, two connectors are installed on the motherboard panel, manufactured by trusted retailer ERNI. They are used as engineering monitoring ports (P6) and DSP emulator ports (P5).

Before installing this digital signal processor control board, be sure to verify that the size of this printed circuit board corresponds to the size of its mounting bracket or assembly area. The actual printed circuit board for this particular GE Industrial Systems model is about 8.5 inches long and about 5 inches wide. While this is true, the outer plate of this control board, labeled 259B2431FBG08 by the manufacturer, does increase the width of the PCB; Make the total width gap of the product approximately 7 inches. The above panel also greatly increases the general thickness of the IS200DSPXH1DBC, increasing the total thickness to about one inch. This is a static-sensitive device and should always be used with extreme care during installation and storage.
