【功能描述】

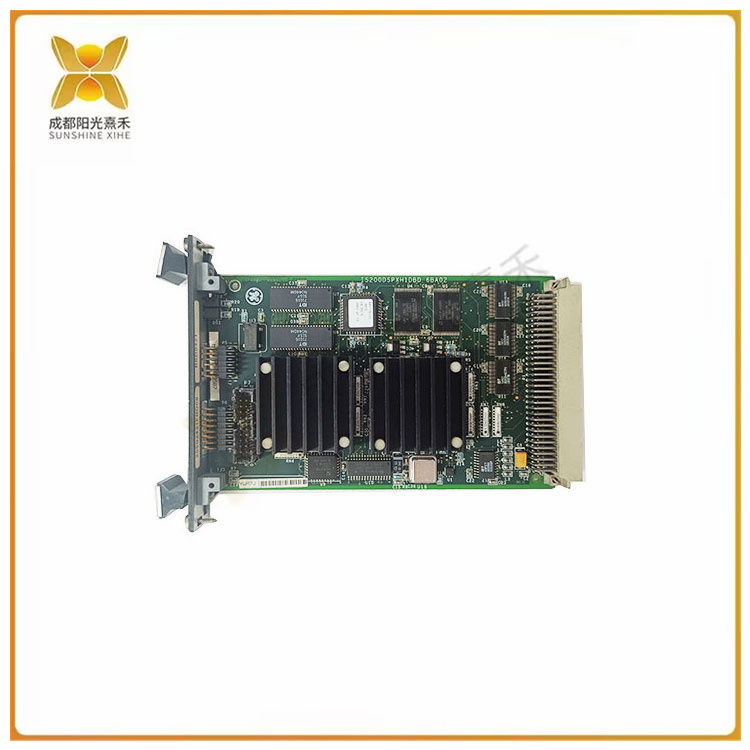

GE Mark VI IS200DSPXH1DBD是GE為Mark VI系列設計的印刷電路板。該板是GE speedtronic系列的一部分。

該IS200DSPXH1DBD是GE制造和最初分銷的印刷電路板組件，作為其Mark VI Speedtronic系列的一部分。Mark VI是作為燃?xì)夂驼羝I(yè)渦輪機系統的控制系統而創建的，通常用于能源系統。該IS200DSPXH1DBD專門用于創新系列驅動器和EX2100勵磁器。

IS200DSPXH1DBD是一個帶有前面板的小矩形板。它用作數字信號處理器控制板，并設計有連接到ASIC（專用集成電路）的數字信號處理器，該集成電路執行自定義邏輯功能。該板加載了存儲在其閃存中的板載固件。

該板有多個輸入/輸出連接器，其中兩個位于其連接的前面板上。面板還具有兩個嵌入式LED指示燈（一個綠色和一個紅色），有助于向處理器發出警報。此外，該板還具有具有多種功能的直角背板連接器。其中包括數據總線、地址總線、控制輸出信號、鍵盤接口、工具接口和VCO輸入。

 >>>>>型號:IS200DSPXH1DBD 印刷電路板 能源系統

【英文介紹】

IS200DSPXH1DBC Technical specifications

Manufacturer GE Industrial Systems

Series Ex2100 excitation control

Part number IS200DSPXH1DBC

Function Description Digital signal processor control board

Often more easily identified by its functional industry acronym DSPX; The IS200DSPXH1DBC is a circuit board assembly used in the GE Industrial Systems EX2100 series of components for excitation control. The DSPX acronym can be described as a functional acronym because it exists to describe the intended use of the component. In this case, the IS200DSPXH1DBC is used as a digital signal processor control board. Since there are several different versions of the DSPX board available, make sure you order the correct iteration of this board for your system.

Hardware tips and specifications

The IS200DSPXH1DBC includes a 60 MHz digital signal processor, an application-specific integrated circuit (ASIC), and standard memory components. The ASIC provides custom logic capabilities and is connected to two leds embedded in the front panel connected to the circuit board. These leds (one red and one green) help alert the board to failure and are labeled "status" and "fault," respectively.

The IS200DSPXH1DBC has multiple I/O connectors. This includes a backplane connector (P1) and a vertical pin connector (P7) located near the front of the board. In addition, two connectors are installed on the motherboard panel, manufactured by trusted retailer ERNI. They are used as engineering monitoring ports (P6) and DSP emulator ports (P5).

Before installing this digital signal processor control board, be sure to verify that the size of this printed circuit board corresponds to the size of its mounting bracket or assembly area. The actual printed circuit board for this particular GE Industrial Systems model is about 8.5 inches long and about 5 inches wide. While this is true, the outer plate of this control board, labeled 259B2431FBG08 by the manufacturer, does increase the width of the PCB; Make the total width gap of the product approximately 7 inches. The above panel also greatly increases the general thickness of the IS200DSPXH1DBC, increasing the total thickness to about one inch. This is a static-sensitive device and should always be used with extreme care during installation and storage.
