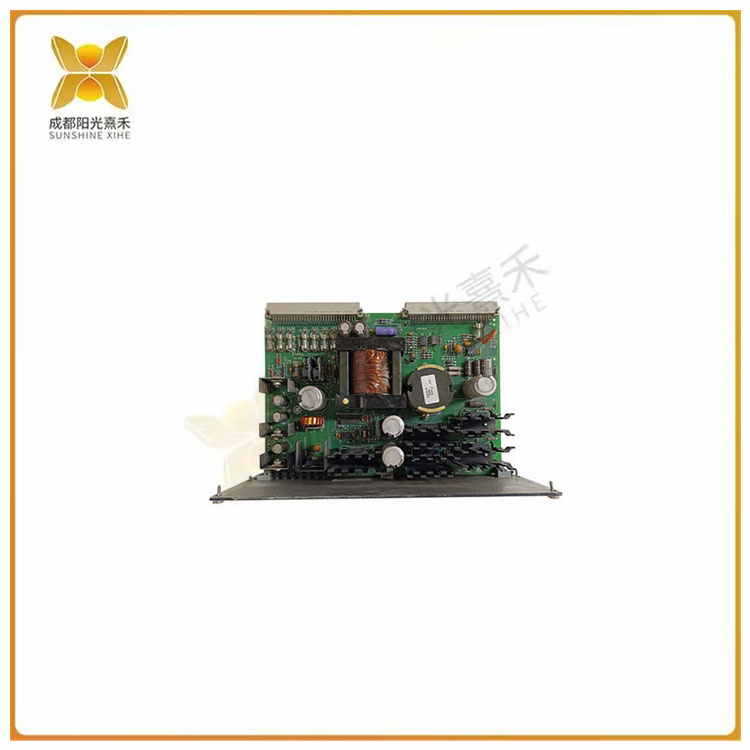

>>>>>型號:IS200EPSMG1AED 伺服閥終端板 低電平信號

【功能描述】

IS200EPSMG1AED是幾個TSVO伺服閥終端板之一，最初由通用電氣公司為其GE Mark VI汽輪機控制系統創建和銷售。在大多數Speedtronic應用中，這種伺服終端板通常連接到三線圈伺服致動器。

IS200EPSMG1AED伺服閥板設計為使用低電平信號。這些信號可能包括0至+/-50 V直流模擬信號、交流信號(額定電壓低于24 VAC)或4至20 mA電流回路信號。

這塊板重約2.00磅。

IS200EPSMG1AED沿兩個長邊都有缺口。一條長邊在拐角處有凹口，而另一條沿其長度方向有較小的等距凹口。這塊板是工廠在三個角上鉆孔的。安裝在電路板表面的元件帶有參考標記，也可能有其原始制造商零件號；這些可以引導您查閱數據手冊，了解更多信息。

IS200EPSMG1AED由六個d形外殼連接器、兩個端子板和幾個垂直插頭組成。它還有四個變壓器、晶體管、繼電器、集成電路、電阻器和電容器。最后，電路板有六個跳線開關。每個跳線有六種可能的設置。

特征

為勵磁系統提供調節電源

緊湊的模塊化設計，便于安裝和維護

內置保護功能，實現安全可靠的操作

IS200EPSMG1AED是專為通用電氣勵磁系統設計的高質量電源模塊。它提供穩定而精確的功率，以確保勵磁系統的最佳性能和可靠性。

IS200EPSMG1AED是GE EX2100勵磁機電源模塊。該板負責將EPDM板的125VDC電壓轉換為EX2100控制系統所需的各種電壓。

激勵電源型號IS200EPSMG1AED安裝在EPBP背板中，為其他控制器提供邏輯電平電源。EPSM型號的電源方面，EPDM發出125 VDC電源，EPSM收到電源后將產生5 VDC、15 VDC或24 VDC電壓。M1、M2和C控制器的電源位于控制柜中控制機架下方的電源模塊中。

來自EPSM模塊的電力也被發送到外部模塊。24 VDC電源提供給撬棒模塊、EDCF、EGDM和EDEX去勵磁模塊。ECTB和EXTB模塊使用用于觸點潤濕的隔離70 VDC。由于IS200EPSMG1AED模塊是A版本，因此該板不向后兼容。

應用領域

IS200EPSMG1AED GE勵磁機電源模塊主要應用于發電廠、電力系統的勵磁控制領域，如火電廠、水電站等。

 >>>>>型號:IS200EPSMG1AED 伺服閥終端板 低電平信號

【英文介紹】

S200EGPAG1BCA GE IS200EGPAG1BCA

IS200EGPAG1BCA Simply said that the driver board is equivalent to a component connecting the host and the display, the host input information through the driver board and then through the driver board connected to the display output.

The more important integrated circuits on the IS200EGPAG1BCA driver board are the main control chip (Sealer chip) and the microcontroller (MCU). The input interface of the IS200EGPAG1BCA driver board is connected to the main control chip of the computer motherboard graphics card through a connection line, and the output interface is connected to the LCD panel through one or two signal transmission lines.

The IS200EGPAG1BCA is a pulse amplifier board specially designed for exciter gates. It amplifies the pulse signal to ensure that the gate in the exciter system works properly.

The GE EX2100 IS200EGPAG1BCA exciter gate pulse amplifier board is used to connect the control to the power bridge in the control system. It is responsible for connecting current conduction feedback, temperature monitoring and bridging airflow.

The gate pulse amplifier board number IS200EGPAG1BCA is located in the power conversion cabinet and can be connected to the power conversion module. This module is one of the boards marked below the bridge and the protection board/module, and although the board can operate independently, it usually requires power from one of the EPDM modules.

The IS200EGPAG1BCA board receives feedback from two thermal switches mounted on the SCR radiator. These switches trigger and disconnect at alarm and trip levels and are directly connected to the IS200EGPAG1BCA. The temperature the switch must reach before triggering is a trip level of 190°F and an alarm level of 170°F. If only one switch is open, an overheating alarm about the bridge has occurred, if both switches are open, it indicates that a trip and a fault has occurred, and the switches can be opened separately or together.
