>>>>>型號:IS200ERIOH1AAA 勵磁穩壓器 單工和冗余的調壓器控制系統

【功能描述】

IS200ERIOH1AA技術規格

制造者通用電氣（GE）

型號IS200ERIOH1AA

制造地點美國弗吉尼亞州塞勒姆

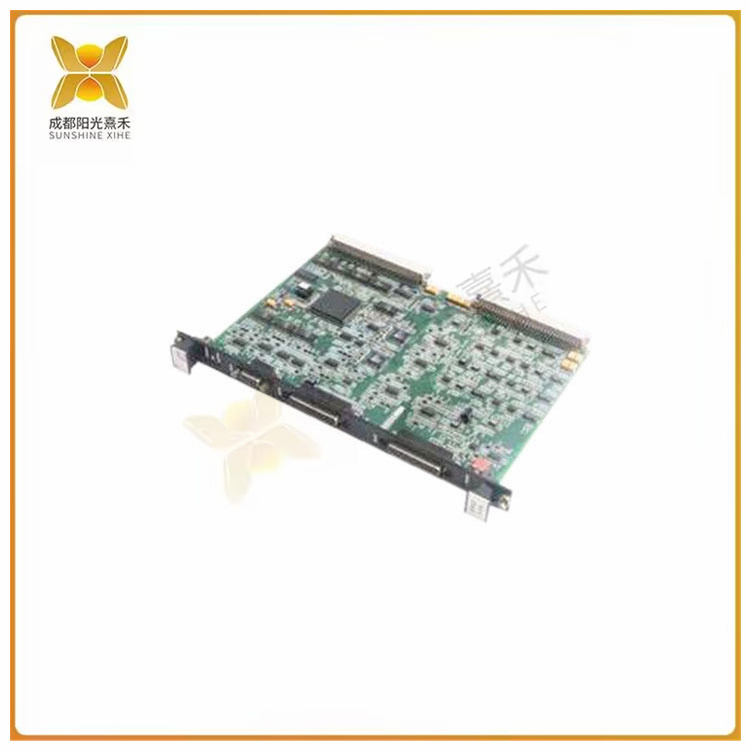

IS200ERIOH1AA板由通用電氣公司生產，用于EX2100勵磁穩壓器和整個Mark VI系列，為客戶和系統I/O提供I/O接口。它為單工和冗余的調壓器控制系統提供這些功能。對于單工應用，I/O安裝在ERBP（勵磁穩壓器背板）中，并連接ECTBG2端子板和EPCT端子板的客戶I/O信號。該IS200ERIOH1AA還能夠連接EROC（勵磁穩壓器選件卡）和ERDD（勵磁穩壓器接口和動態放電）的系統I/O信號。對于冗余應用，它還連接系統I/O信號，用于ERRR（勵磁穩壓器冗余繼電器）。

勵磁穩壓器I/O通過ERBP或ERRB背板連接到EROC和ERDD板，前者用于單工應用，后者用于冗余應用。此外，ERIO通過兩個25針連接器連接到ERBP和ERRB。FPGA（現場可編程門陣列）控制存儲和數據采集到DPM（雙端口存儲器）中。該特定單元是原始部件的修訂版，由型號末尾的“A”表示。

關于IS200ERIOH1AAA的常見問題

什么是IS200ERIOH1AAA

ERIO板為EX2100穩壓器控制系統中的系統I/O和客戶I/O提供I/O接口。它同時服務于冗余和單工應用程序，每個應用程序的功能和連接方式略有不同。

此I/O卡所屬的EX2100勵磁控制系統是什么？

EX2100勵磁控制系統由通用電氣生產，為新建和改造的燃?xì)?、蒸汽或水力發電提供先進的管理方案。它結合了硬件和軟件元素，以確保系統安全并執行火焰檢測、信號縮放等操作。EX2100旨在與通用電氣的Speedtronic Mark VI高效配合使用。它提供鍵盤、熱敏電阻系統等。

 >>>>>型號:IS200ERIOH1AAA 勵磁穩壓器 單工和冗余的調壓器控制系統

【英文介紹】

IS200ERIOH1AA Technical specifications

Manufacturer General Electric (GE)

Model IS200ERIOH1AA

Manufactured in Salem, Virginia, USA

The IS200ERIOH1AA board is manufactured by General Electric for the EX2100 excitation regulator and the entire Mark VI series to provide an I/O interface for customer and system I/O. It provides these functions for simplex and redundant regulator control systems. For simplex applications, I/O is installed in the ERBP (excitation regulator backplane) and connected to the customer I/O signals of the ECTBG2 terminal board and EPCT terminal board. The IS200ERIOH1AAA is also capable of connecting EROC (Excitation Regulator option card) and ERDD (Excitation Regulator Interface and Dynamic Discharge) system I/O signals. For redundant applications, it also connects system I/O signals for ERRR (redundant relay for Excitation regulator).

The excitation regulator I/O is connected to the EROC and ERDD boards via the ERBP or ERRB backplane, the former for simplex applications and the latter for redundancy applications. In addition, the ERIO is connected to the ERBP and ERRB via two 25-pin connectors. The FPGA (Field Programmable Gate Array) controls the storage and data acquisition into the DPM (dual port memory). This particular unit is A revised version of the original part and is represented by an "A" at the end of the model number.

Frequently asked questions about IS200ERIOH1AAA

What is IS200ERIOH1AAA

The ERIO board provides I/O interfaces for system I/O and customer I/O in the EX2100 regulator control system. It serves both redundant and simplex applications, each with slightly different functionality and connectivity.

What is the EX2100 excitation control system to which this I/O card belongs?

The EX2100 excitation control system, manufactured by General Electric, provides advanced management solutions for new and retrofitted gas, steam or hydroelectric power generation. It combines hardware and software elements to ensure system safety and perform operations such as flame detection, signal scaling, and more. The EX2100 is designed to work efficiently with General Electric's Speedtronic Mark VI. It provides keyboards, thermistor systems, and more.
