>>>>>型號:8200-1302  數字調速器 充當圖形界面和鍵盤

【功能描述】

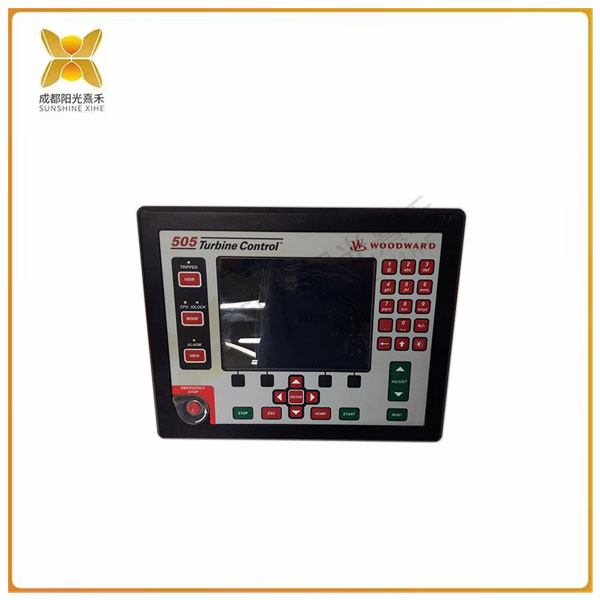

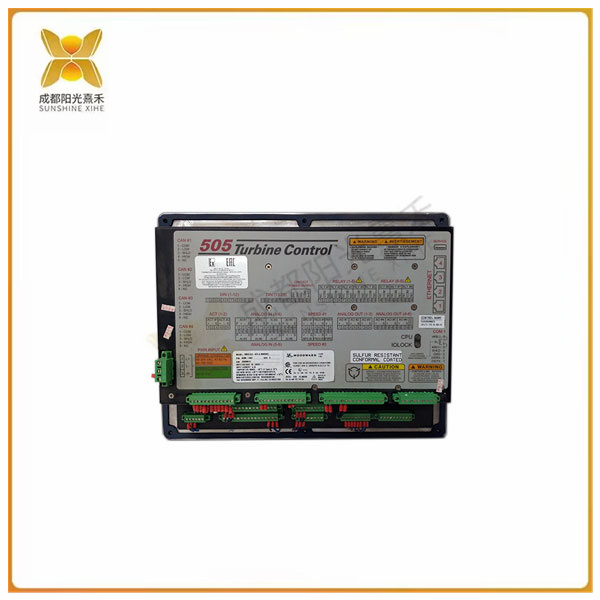

8200-1302 是可用于控制汽輪機的幾款伍德沃德 505 數字調速器之一。該操作員控制面板充當圖形界面和鍵盤，允許對渦輪機進行調整并與之通信。這可以通過位于設備上的 Modbus 通信端口進行配置。

8200-1302 具有多種可用功能：

熱啟動和冷啟動的自動啟動順序，具有溫度輸入選項

三速頻段的臨界速度規避

10 個外部報警輸入

10 個外部 DI 跳閘輸入

具有相關 RTC 時間戳的跳閘和報警事件的跳閘指示

雙速度和負載動態

超速跳閘的峰值速度指示

零速檢測

遠程壓降

頻率死區

該裝置還提供三種正常工作模式，包括配置、操作和校準模式。

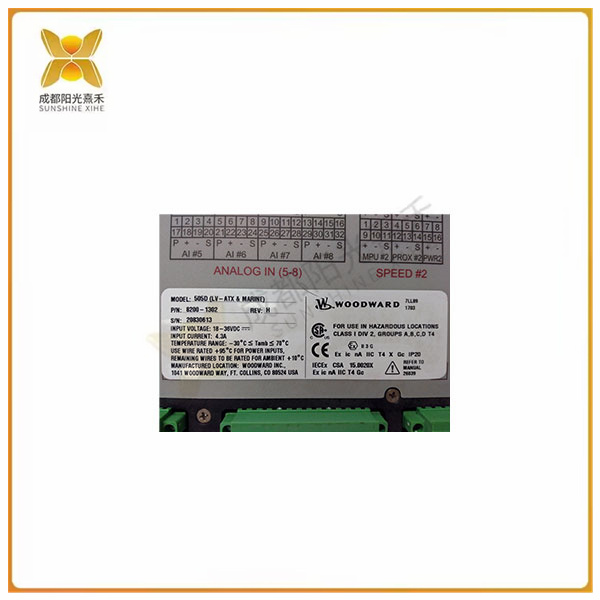

該裝置包括兩個冗余速度輸入，可以接受磁性拾取裝置、渦流探頭或接近探頭。它具有模擬輸入 （8），可針對 27 種功能中的任何一種進行配置。該裝置還具有額外的 20 個觸點輸入。這些觸點中的前四個觸點默認用于關斷、提高速度設定點、復位和降低速度設定點。其他的可以根據需要進行配置。此外，該裝置還具有兩個 4-20 mA 控制輸出和八個 Form-C 繼電器觸點輸出。

 >>>>>型號:8200-1302  數字調速器 充當圖形界面和鍵盤

【英文介紹】

The 8200-1302 is one of several Woodward 505 digital governors available to control steam turbines. The operator control panel acts as a graphical interface and keyboard, allowing the turbine to be adjusted and communicated with. This can be configured via a Modbus communication port located on the device.

The 8200-1302 has a variety of functions available:

Automatic start sequence for hot start and cold start, with temperature input option

Critical speed evasion in the three-speed band

10 external alarm inputs

10 external DI trip inputs

Trip indication with associated RTC time stamps and alarm events

Dual speed and load dynamics

Peak speed indication of overspeed trip

Zero speed detection

Long range voltage drop

Frequency dead zone

The unit also offers three normal operating modes, including configuration, operation and calibration modes.

The device includes two redundant speed inputs and can accept a magnetic pickup device, eddy current probe, or proximity probe. It has analog inputs (8) and can be configured for any of the 27 functions. The device also has an additional 20 contact inputs. The first four of these contacts are used by default to turn off, raise speed setpoints, reset, and lower speed setpoints. Others can be configured as needed. In addition, the unit has two 4-20 mA control outputs and eight Form-C relay contact outputs.
