>>>>>型號:0-60031-5 輸入/輸出分解器驅動PMI模塊

【功能描述】

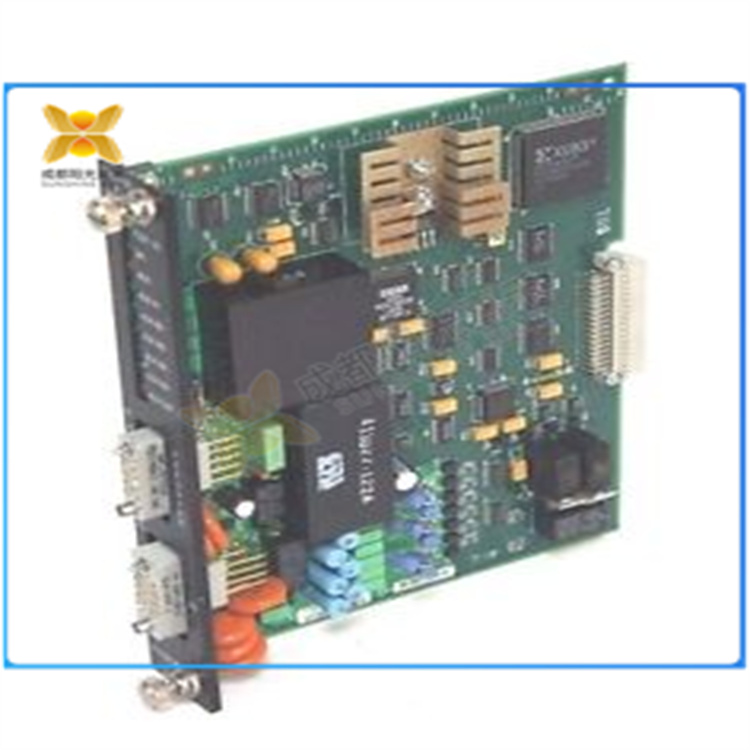

0-60031-5輸入/輸出分解器驅動PMI模塊

0-60031-5是電路板，作為其各種驅動系統的組件，最常見的是Automate系列驅動器，0-60031-5被視為過時零件，不再生產。

0-60031-5是一個解析器和驅動I/0 PMI模塊，該組件有一個附加的窄面板，其下半部分有兩個母插頭連接器。這些標記為“解析器反饋”和“驅

動I/0”。該板還有九個led指示燈(裝裱成兩綠一紅五綠一紅的圖案。)這些標記為fdbk ok、rpi、mcr、aux in1、aux in2、auxin3、aux in4.

auxin5和aux out.

0-60031-5板組件包括一個位于后邊緣中心的多針直角接口連接器。它有三個繼電器、一個電感線圈.

一個變壓器、盤形電容器、高壓電容器、晶體管、電陽器和二極管。該板有一個安裝在散熱器內的3000uV雙極性運算放大器。

這位于左側板邊緣。它還擁有超過35個集成電路，包括現場可編程門陣列。

>>>>>型號:0-60031-5 輸入/輸出分解器驅動PMI模塊

【英文介紹】

0-60031-5 I/O resolver Drives the PMI module

The 0-60031-5 is a circuit board, used as a component in its various drive systems, most commonly the

Automate series drives, and the 0-60031-5 is considered an obsolete part and is no longer produced.

The 0-60031-5 is a parser and driver I/0 PMI module that has an attached narrow panel with two female

plug connectors in its lower half. These are labeled "parser feedback" and "drive.

Move I/0 ". The board also has nine led indicators (framed in a pattern of two green, one red, five green

and one red). These are labeled fdbk ok, rpi, mcr, aux in1, aux in2, auxin3, aux in4.

auxin5 and aux out.

The 0-60031-5 board assembly includes a multi-pin right Angle interface connector located in the center

of the back edge. It has three relays and an inductor. A transformer, disk capacitor, high voltage capacitor,

transistor, electric generator and diode. The board has a 3000uV bipolar operational amplifier mounted

inside a heat sink. This is on the left edge of the plate. It also has more than 35 integrated circuits, including field programmable gate arrays.
