>>>型號:0-54341-21 M整流器抑制器 用于自動化系統

【功能描述】

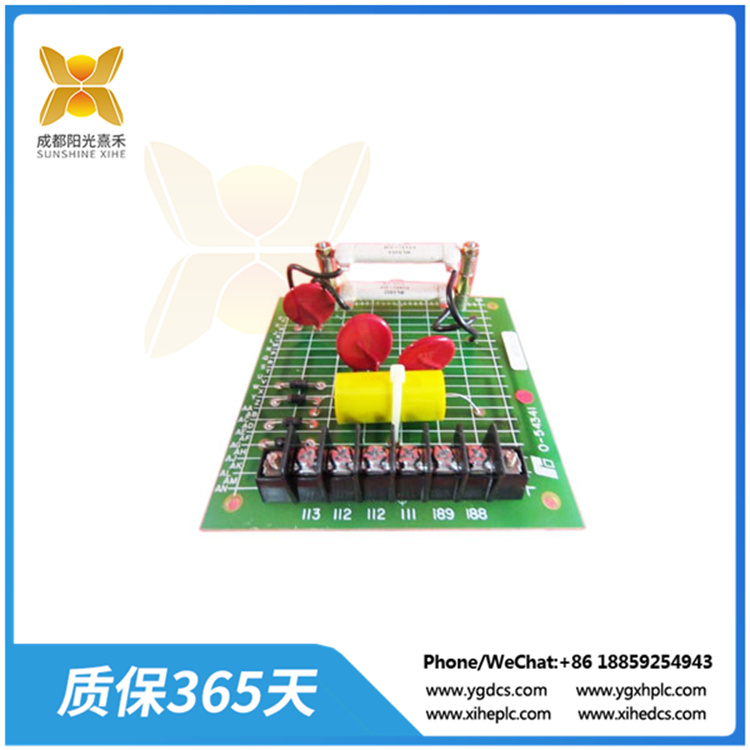

0-54341-21是M整流器抑制器。該電路板非常小。該電路板的一側邊緣有一個六螺絲銀塊。電路板有四個淡綠色珠狀二極管，一端有一條細黑線。電路板上有三個大的紅色或綠色圓形電容器。

電路板還有一個大的黃色聚丙烯電容器，需要用扎帶將其固定到電路板上，因此如果電容器移動，金屬連接線不會損壞。電路板還有一個大電阻器，連接到小支柱上，將其抬離電路板表面。

電阻器的外部寫有其能量容量。該電阻器還有四根電線（兩端各兩根）。

0-54341-21整流器抑制器是一種用于控制系統中整流器產生的諧波和電氣噪聲的設備。在現代電力系統中，整流器常常用于將交流電轉換為直流電，但這個過程可能會產生不受控制的諧波和其他電氣干擾，

這些干擾可能對電網穩定性和其他電氣設備造成不利影響。

0-54341-21整流器抑制器的作用就在于減小或消除這些不良影響。它通常包含傳感器、控制器和執行機構等部分，能夠監測電氣系統中的電流和電壓波形，識別并抑制不良的諧波成分。通過調整系統參數

或使用濾波技術，整流器抑制器能夠顯著提高電能質量，保護電氣設備免受損害，同時也有助于提高系統的整體效率和可靠性。

>>>>型號:0-54341-21 M整流器抑制器 用于自動化系統

【英文介紹】

0-54341-21 is the M rectifier suppressor. The board is very small. One edge of the board has a six-screw silver block. The board has four light-green beaded diodes with a thin black line

 at one end. There are three large red or green round capacitors on the circuit board. The board also has a large yellow polypropylene capacitor, which needs to be secured to the board

with a cable tie, so if the capacitor moves, the metal connection wire will not be damaged. The board also has a large resistor attached to a small strut that lifts it off the surface of the board.

 The outside of the resistor has its energy capacity written on it. The resistor also has four wires (two at each end).

0-54341-21 Rectifier suppressor is a device used to control harmonics and electrical noise generated by rectifiers in a system. In modern power systems, rectifiers are often used to convert

alternating current to direct current, but this process can create uncontrolled harmonics and other electrical disturbances that can adversely affect grid stability and other electrical equipment.

The role of the 0-54341-21 rectifier suppressor is to reduce or eliminate these adverse effects. It usually includes sensors, controllers, and actuators that monitor current and voltage waveforms

 in electrical systems and identify and suppress undesirable harmonic components. By adjusting system parameters or using filtering technology, rectifier suppressors can significantly improve

power quality and protect electrical equipment from damage, while also helping to improve the overall efficiency and reliability of the system.
