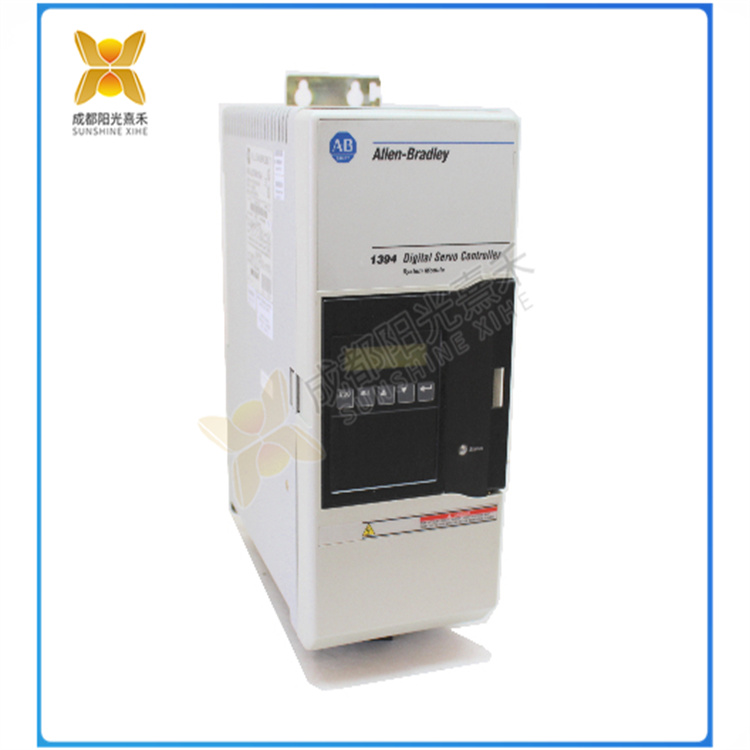

>>>>>型號:1394C-SJT22-A 伺服控制器

【功能描述】

1394C-SJT22-A是一款伺服控制器。

這款控制器具有模擬模塊功能，并配備±10伏直流模擬接口。作為C系列系統模塊，它擁有智能電源、EMI過濾和改進的終端等功能。該控制器最多可支持四個軸，可以用作速度或扭矩控制器。

1394C-SJT22-A具有一個SCANport接口，能夠在直流電壓下提供高達33.8安培的連續輸出電流，并具備22千瓦的連續輸出功率。它還配有一個三相電源，并具有多種電源輸入選項。

在診斷功能方面，1394C-SJT22-A配備了電流監視器、熱過載檢測和反饋信號監視器，從而能夠?qū)崟r監控系統狀態并及時發現潛在問題。

這款伺服控制器還具有數模轉換器（DAC）板，用于執行數模轉換。DAC板執行12位正真偏移二進制輸入編碼字的模擬轉換，輸出范圍為-10至+10伏，為每個傳感器

提供4.88mV的分辨率數字輸入1 LSB變化。這種高分辨率的轉換能力使得該控制器能夠精確控制各種伺服系統。

>>>>>型號:1394C-SJT22-A 伺服控制器

【英文介紹】

The 1394C-SJT22-A is a servo controller.

The controller features an analog module function and a ±10 volt DC analog interface. As a CSeries system module, it has features such as intelligent power supply,

EMI filtering, and improved terminals. The controller supports up to four axes and can be used as a speed or torque controller.

The 1394C-SJT22-A features a SCANport interface that delivers up to 33.8 amps of continuous output current at DC voltage and 22 kW of continuous output power.

 It also comes with a three-phase power supply and has a variety of power input options.

In terms of diagnostic functions, the 1394C-SJT22-A is equipped with a current monitor, thermal overload detection and feedback signal monitor, which enables

real-time monitoring of system status and timely detection of potential problems.

This servo controller also has a digital-to-analog converter (DAC) board for performing digital-to-analog conversion. The DAC board performs an analog conversion

of a 12-bit true-offset binary input coded word with an output range of -10 to +10 volts, providing a resolution of 4.88mV per sensor for digital input with 1 LSB variation.

 This high resolution conversion capability enables the controller to precisely control a variety of servo systems.
