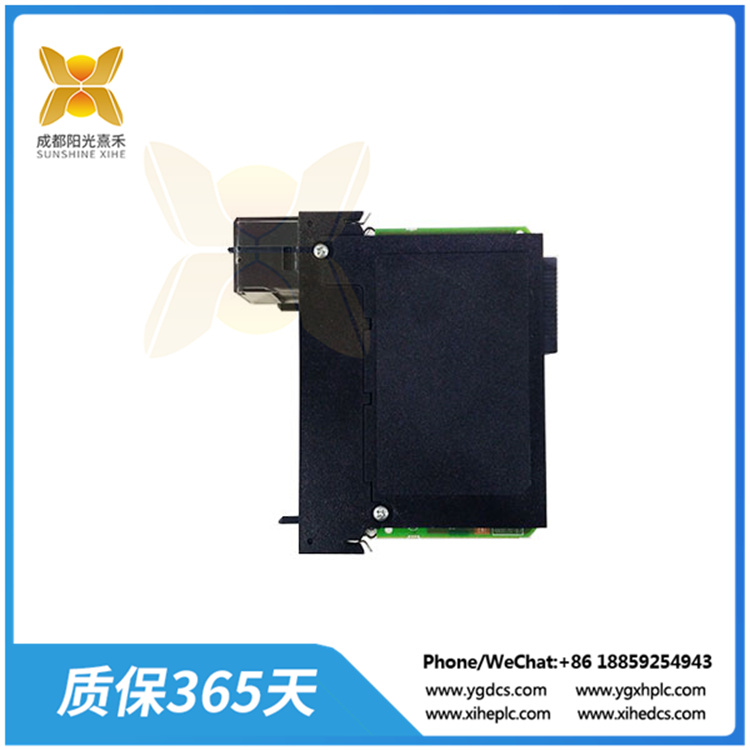

>>>型號:1756-IF8 模擬量輸入模塊 八個單端差分和兩個高速差分輸入通道

【功能描述】

1756-IF8是一款模擬量輸入模塊，具有多種功能和特性，使其成為工業自動化系統中的關鍵組件。

1756-IF8模塊具有八個單端差分和兩個高速差分輸入通道，可以配置為接收不同類型的輸入信號，包括±10VDC、0-10VDC、0-5VDC和0-20mA。對于±10VDC輸入信號，其分辨率為15位；而對于其他類型的輸入信號，

分辨率為16位。這種高分辨率的特性使得1756-IF8能夠精確地采集和處理模擬信號，確保數據的準確性和可靠性。

1756-IF8模塊還具有廣泛的安裝和應用靈活性。它可以沿控制器安裝在本地機箱中，也可以安裝在分布式I/O機架中，這使得用戶可以根據實際需求進行靈活配置。同時，該模塊沒有安裝實例數量的限制，可以根據系統規模進行擴展。

在性能方面，1756-IF8模塊具有出色的掃描時間。對于單線布線，掃描時間為16~488 ms；對于4點差動輸入，掃描時間是8~244 ms；而對于2點差動輸入則為5~122 ms。這種快速的掃描時間確保了模塊能夠?qū)崟r地采集和處理輸

入信號，滿足工業自動化系統對實時性的要求。

Allen-Bradley的PLC通常具有多種功能，如邏輯控制功能、信號采集功能、輸出控制功能、數據處理功能、計時計數功能、遠程輸入輸出功能、人機界面功能、故障自診斷功能、通訊聯網功能以及實時通信和冗余備份功能。這些功

能使得PLC能夠?qū)崿F(xiàn)對工業設備的精確控制、數據采集和監控，提高生產效率并降低故障率。

>>>>型號:1756-IF8 模擬量輸入模塊 八個單端差分和兩個高速差分輸入通道

【英文介紹】

The 1756-IF8 is an analog input module with a variety of functions and features that make it a key component in industrial automation systems.

The 1756-IF8 module features eight single-ended differential and two high-speed differential input channels and can be configured to receive different types of input signals, including ±10VDC, 0-10VDC, 0-5VDC,

and 0-20mA. For ±10VDC input signals, the resolution is 15 bits; For other types of input signals, the resolution is 16 bits. This high resolution allows the 1756-IF8 to precisely acquire and process analog signals,

ensuring data accuracy and reliability.

The 1756-IF8 module also offers a wide range of installation and application flexibility. It can be installed in the local chassis along the controller or in the distributed I/O rack, which allows the user to flexibly configure

 according to the actual needs. At the same time, the module has no limit on the number of installed instances and can be expanded according to the system size.

In terms of performance, the 1756-IF8 module has excellent scan times. For single-wire wiring, the scanning time is 16~488 ms; For 4-point differential input, the scanning time is 8~244 ms; For 2-point differential inputs,

it is 5 to 122 ms. This fast scanning time ensures that the module can acquire and process the input signal in real time, which meets the real-time requirements of industrial automation system.

Allen-Bradley PLC usually has a variety of functions, such as logic control function, signal acquisition function, output control function, data processing function, timing and counting function, remote input and output function,

 human-machine interface function, fault self-diagnosis function, communication networking function and real-time communication and redundancy backup function. These functions enable PLC to achieve accurate control,

 data acquisition and monitoring of industrial equipment, improve production efficiency and reduce the failure rate.
