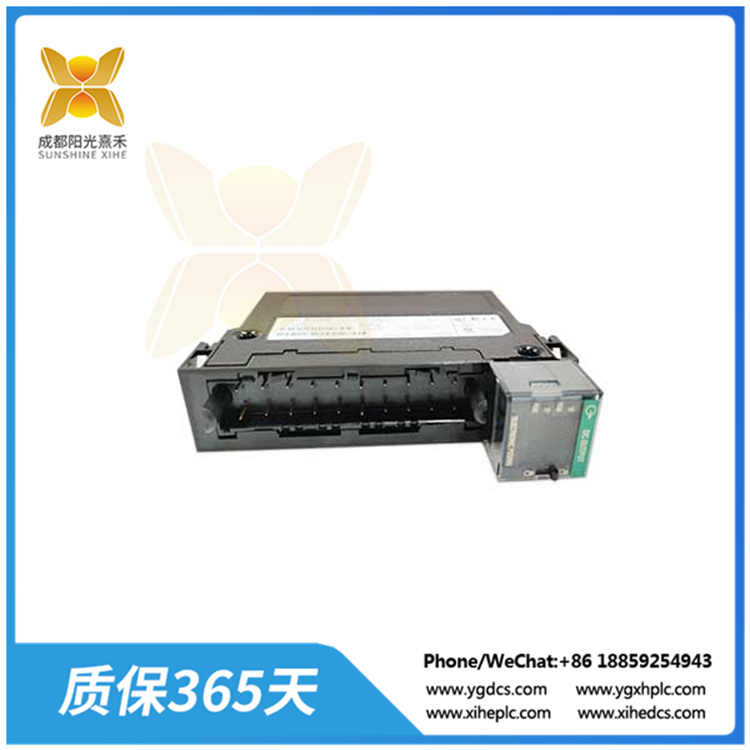

>>>型號:1756-0B16E DC輸出模塊 用于工業自動化和控制系統 負載電流與熔斷保護

【功能描述】

1756-0B16E是一個DC輸出模塊，具有一系列顯著的特點和功能。

以下是關于該模塊的詳細介紹：

輸出電壓范圍與標稱值：該模塊的輸出電壓范圍為10~31.2 VDC，標稱值為24VDC。這種范圍的輸出電壓可以滿足多種工業應用的需求。

通道與電流輸出：1756-0B16E模塊為每個通道在60°C(140°F)時提供1 A的輸出電流，或在每個模塊在相同溫度下提供8 A的輸出電流。此外，其浪涌電流額定值為2A，

每點持續10 ms，在0°C(32°F) 24伏DC下每2秒重復一次。

負載電流與熔斷保護：該模塊的最小負載電流為每通道3 mA，同時每組提供內置電子熔斷，為電路提供額外的保護。

延遲時間：1756-0B16E模塊的每個輸出通道的關到開輸出延遲時間最大為70 s標稱值/1 ms，而開到關延遲時間最大為360 s標稱值/1 ms。

功耗與電流吸取：在背板吸取電流方面，該模塊在5v直流時為250 mA，在24v直流時為2 mA。背板的總功耗要求為1.32瓦，最大功耗為4.1 W（60°C(140°f)）。

電壓類別與工作電壓：1756-0B16E模塊的電壓類別為12至24伏DC電源電壓，而工作電壓則為10至31.2伏DC。

>>>>型號:1756-0B16E DC輸出模塊 用于工業自動化和控制系統 負載電流與熔斷保護

【英文介紹】

The 1756-0B16E is a DC output module with a range of notable features and functions.

Here is a detailed description of the module:

Output voltage range and nominal value: The output voltage range of the module is 10 to 31.2 VDC, and the nominal value is 24VDC. This range of output voltages can meet the needs of a variety of industrial applications.

Channel and current output: The 1756-0B16E module provides 1 A output current at 60°C(140°F) per channel, or 8 A output current at the same temperature per module. In addition, its surge current rating is 2A, each point

lasts 10 ms, and is repeated every 2 seconds at 0°C(32°F) 24 volt DC.

Load current and fuse protection: The module has a minimum load current of 3 mA per channel, while each group provides built-in electronic fuses to provide additional protection to the circuit.

Delay time: The turn-off to turn-on output delay time of each output channel of the 1756-0B16E module is up to 70 s nominal value /1 ms, and the turn-off delay time is up to 360 s nominal value /1 ms.

Power consumption and current absorption: In terms of backplane current absorption, the module is 250 mA at 5v DC and 2 mA at 24v DC. The backplane requires a total power consumption of 1.32 watts and a maximum

 power consumption of 4.1 W (60°C(140°f)).

Voltage Class and operating voltage: The 1756-0B16E module's voltage class is 12 to 24 volts DC supply voltage, while the operating voltage is 10 to 31.2 volts DC.
