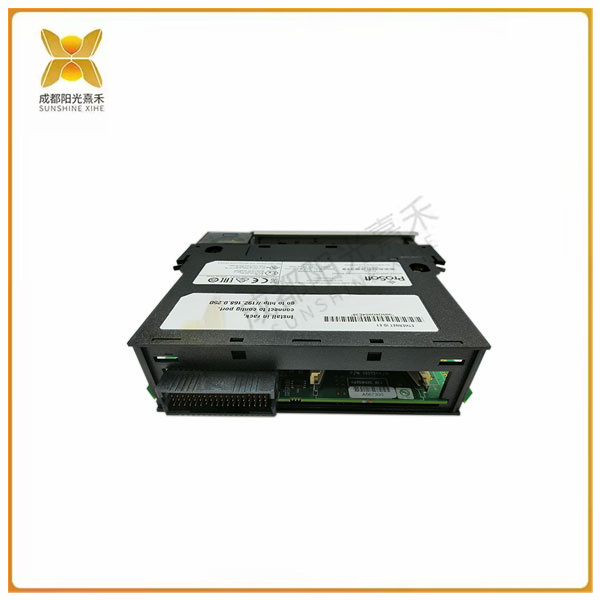

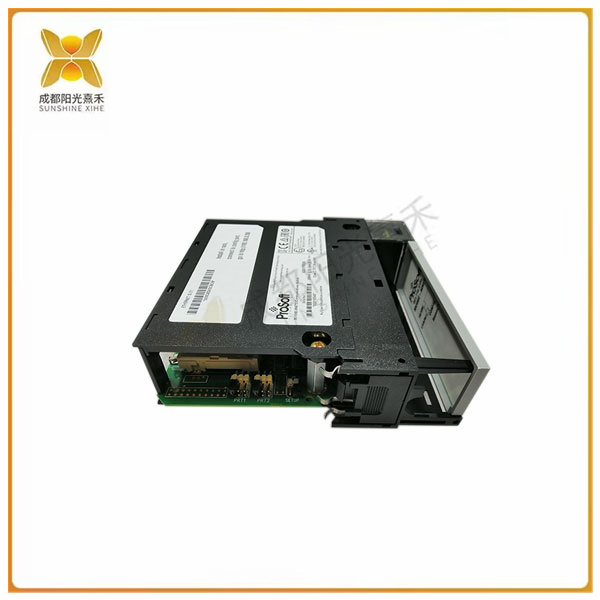

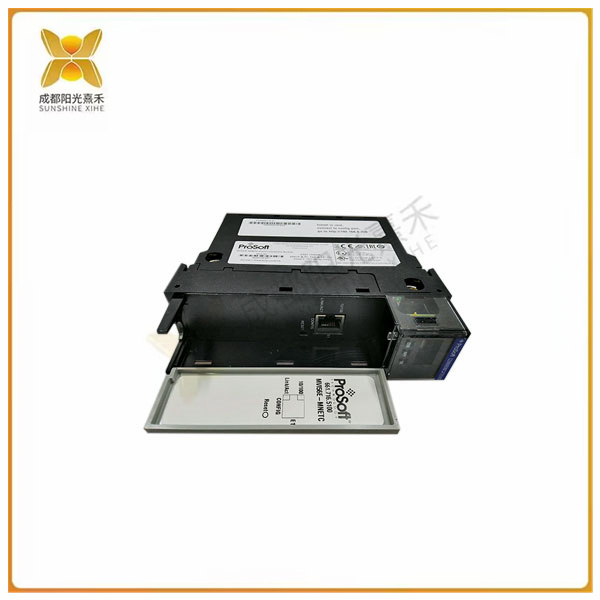

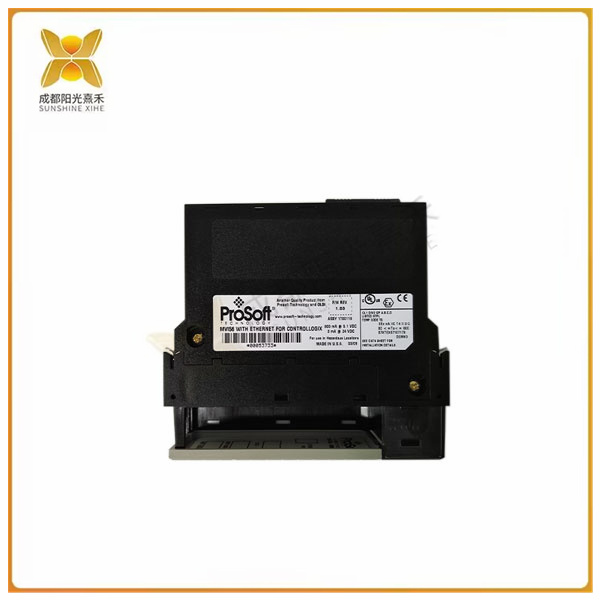

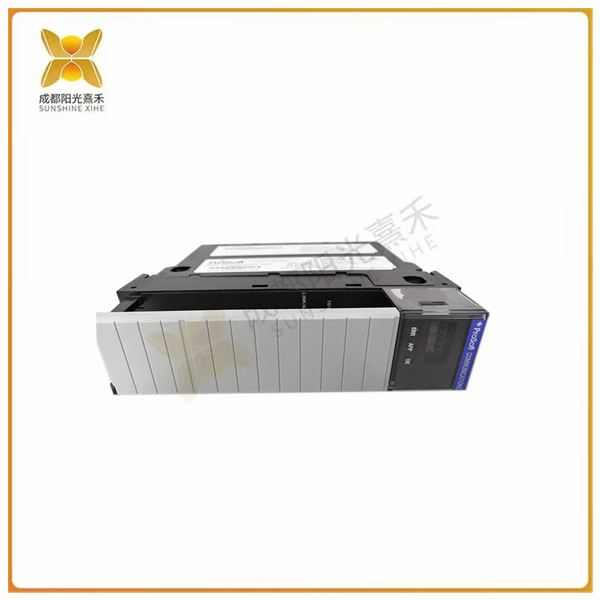

>>>>>型號:MVI56-MNETC 增強通信模塊 以太網交叉配置自動檢測端口與應用
【功能描述】
當你需要 Modbus? TCP/IP 通信，MVI56E-MNETC/MNETCXT 模塊絕對是你
的最佳選擇。Modbus TCP / IP 增強通信模塊支持羅克韋爾自動化
ControlLogix 可編程自動化控制器（PAC）輕松連接 Modicon 可編程自動化控
制器（PAC），以及多個 Modbus TCP/IP 服務器兼容的儀器和設備。多客戶端
模塊在支持 Modbus TCP/IP 網絡上的多個服務器時，支持最多 30 個客戶端，
從而提高了性能。它還支持多達 20 個服務器連接，提供與其他 DCS 和 SCADA
系統通信的能力。客戶端和服務器功能都可以同時運行，模塊還可以作為強大的
數據集中器運行。
MVI56E-MNETC 和 MVI56E-MNETCXT 功能相同。MVI56E-MNETCXT 用于
標準過程應用。MVI56E-MNETCXT 是專為 XT?Logix 控制平臺設計的，支持它
在極端環境下運行。該模塊可以在較高的工作溫度下運行，并具有保護涂層使它
免受惡劣或苛性條件。
MVI56E 增強功能包括通過模塊的以太網端口的配置和管理，
CIPconnect?技術則為 ControlNet 和 EtherNet/IP?網絡搭線建橋。
一般規格
? 兼容以前的 MVI56-MNETC 版本
? 單槽 1756 ControlLogix 背板兼容
? 10 / 100Mbps 以太網交叉配置自動檢測端口與應用
? 用戶定義的模塊數據存儲器映射多達 10000 個 16 位寄存器
? 使用 ControlLogix 1756 的另一個和 1756-CNB 模塊對 CIPconnect 啟用網
絡配置和診斷監測。
? ProSoft 配置生成器（PCB）軟件的支持，基于 Windows 的圖形用戶界面提供
了簡單的產品和網絡配置
? 梯形圖邏輯和附加指令（AOI）用于模塊和處理器之間的數據傳輸。
? 4 個字符，字母-數字，使用簡單易懂英語滾動的 LED 顯示狀態和診斷數據–沒有
加密的錯誤或報警代碼。
? ProSoft 發現服務（PDS）軟件用于網絡上的定位模塊和分配臨時 IP 地址
? 個性模塊-一種非易失性工業級閃存（CF）卡，用于存儲網絡和模塊配置以方便災
難恢復，允許快速地通過更換 CF 卡替換現場產品
>>>>>型號:MVI56-MNETC 增強通信模塊 以太網交叉配置自動檢測端口與應用
【英文介紹】
When you need Modbus? TCP/IP communication, the MVI56E-MNETC/MNETCXT module is definitely for you
The best choice. The Modbus TCP/IP enhanced communication module supports Rockwell Automation
ControlLogix Programmable Automation Controller (PAC) easily connects to Modicon programmable automation control
Pacs, as well as multiple Modbus TCP/IP server compatible instruments and devices. multi-client
The module supports up to 30 clients when supporting multiple servers on a Modbus TCP/IP network.
This improves performance. It also supports up to 20 server connections, provided with other DCS and SCADA
The ability of the system to communicate. Both client and server functions can be run at the same time, and modules can also act as powerful
Data concentrator run.
The MVI56E-MNETC and MVI56E-MNETCXT have the same functions. MVI56E-MNETCXT is used
Standard process application. The MVI56E-MNETCXT is designed for the XT?Logix control platform and supports it
Operating in extreme environments. The module can operate at higher operating temperatures and has a protective coating to make it
Protected from harsh or harsh conditions.
MVI56E enhancements include configuration and management of Ethernet ports through modules,
CIPconnect? technology Bridges ControlNet and EtherNet/IP? networks.
General specification
? is compatible with previous MVI56-MNETC versions
? single-slot 1756 ControlLogix backplane compatible
? 10/100Mbps Ethernet cross configuration automatically detects ports and applications
? User-defined modular data memory maps up to 10,000 16-bit registers
? Enable networking for CIPconnect using another and 1756-CNB module of ControlLogix 1756
Network configuration and diagnostic monitoring.
? ProSoft Configuration Builder (PCB) software support, Windows based graphical user interface provided
Simple product and network configuration
? Ladder diagram logic and additional instructions (AOI) are used for data transfer between modules and processors.
? 4 characters, alphanumeric, scrolling LED display of status and diagnostic data in plain English - no
Encrypted error or alarm code.
? ProSoft Discovery Service (PDS) software is used to locate modules and assign temporary IP addresses on a network
? Personality Module - A non-volatile industrial-grade flash memory (CF) card used to store networks and module configurations for disaster convenience
Difficult to recover, allowing quick replacement of field products by replacing CF cards
