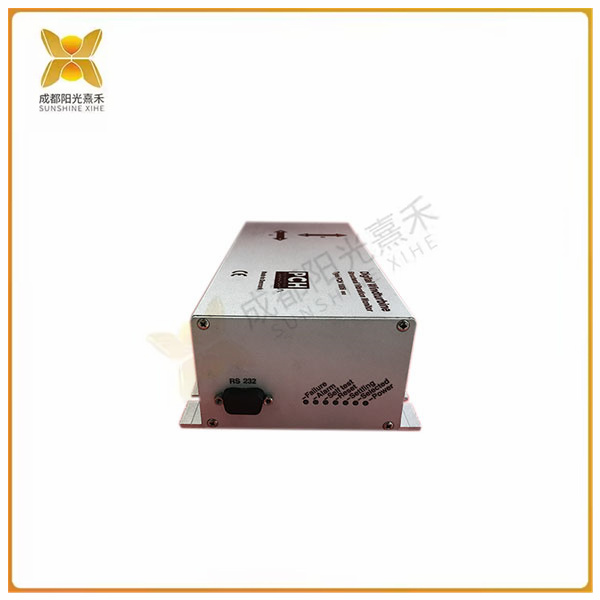

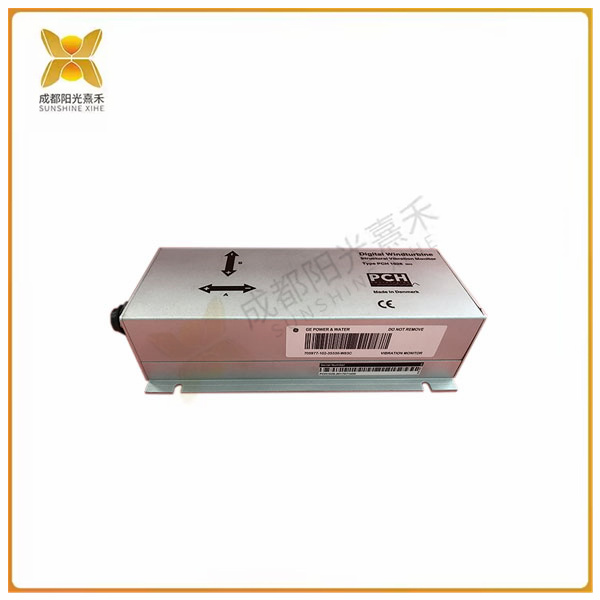

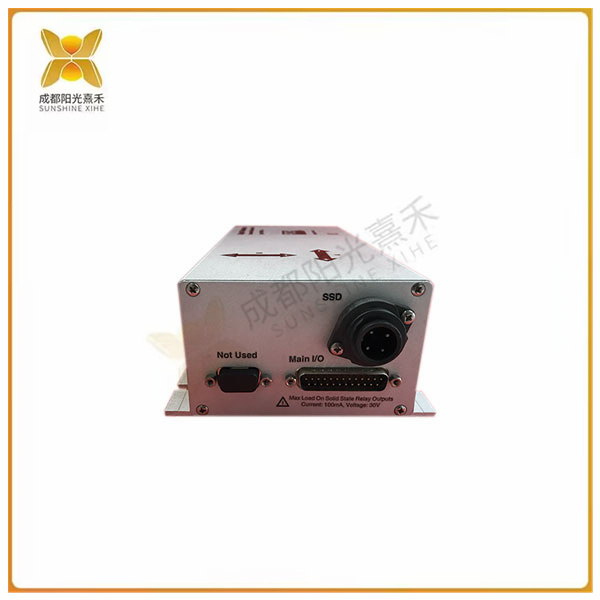

>>>>>型號:PCH1026 數字式風力發電機結構振動監測儀
【功能描述】
數字式風力發電機結構振動監測儀
使用
·低頻結構的永久監測
以及地震振動
應用程序
·風力渦輪機
-塔架振動
-傳動系統振蕩(螺距渦輪機)
-葉片橫向振動(失速渦輪機)
·鐵塔
·煙囪
·橋梁
·建筑
-地震振動符合ISO4866
配置與設置
·安裝和配置可以通過
串行RS-232端口使用提供的設置和
監控PC程序CHT 1012。所有設置
可現場更換。
·設置和顯示也可以遠程執行
通過可選的RS-485連接外部
PC機或控制器，如WTC或過程控制器
·登錄PC軟件保存記錄
特定監視器中的設置，由
儀器序列號
特性
·3個內部振動傳感器(加速度計)
·A、B、C三個方向的三軸測量
·全向塔監控
-行之有效的最佳監控塔
·方便監控多達4個不同的頻率
獨立地，從每個傳感器一個或最多4個
不同的頻率從一個傳感器
·經過驗證的過濾技術，基于經驗
下列應用程序
·測量均方根、最大值。峰值或峰值值
·1 - 4個獨立的工業標準4- 20ma輸出
·4個可編程獨立報警繼電器
開關功能和1個系統故障繼電器
·可編程報警閾值和延遲時間
獨立用于每個報警繼電器
·傳感器和內部恒定看門狗
電子電路。故障在故障安全系統故障繼電器上顯示
·所有傳感器和電子電路的測試功能。
·設計用于惡劣環境，包括
溫度、電噪聲干擾和濕度。
·實現客戶定義的可能性
監控算法，讓客戶有所不同
從競爭對手那里
>>>>>型號:PCH1026 數字式風力發電機結構振動監測儀
【英文介紹】
DIGITAL WINDTURBINE STRUCTURAL VIBRATION MONITOR
USES
· Permanent monitoring of low frequency structural
and seismic vibrations
APPLICATIONS
· Wind turbines
- Tower vibrations
- Drive Train oscillations (pitch turbines)
- Edgewise blade vibrations (stall turbines)
· Steel towers
· Chimneys
· Bridges
· Buildings
- Seismic vibrations according to ISO4866
CONFIGURATION & SETUP
· Setup and configuration can be performed via
seriel RS-232 port using the supplied setup and
monitoring PC program CHT 1012. All settings
can be changed on site.
· Setup and Display can also be performed remote
through optional RS-485 connection from external
PC or controller, e.g. WTC or Process controller
· A log in the PC software keeps record of the
settings in the particular monitor, identified by
instrument serial no.
FEATURES
· 3 internal vibration sensors (accelerometers)
· Triaxial measurements in A, B and C directions
· OmniDirectional Tower Monitoring
- Proven optimal monitoring of towers
· Facilitates monitoring of up to 4 different frequencies
indpendently, either one from each sensor or up to 4
different frequencies from one sensor
· Proven filter techniques, based on experience with
windturbine applications
· Measures RMS, Max. Peak or Peak-Peak values
· 1 - 4 independent industrial standard 4-20mA outputs
· 4 independent Alarm relays with programmable
make/break function and 1 System Failure relay
· Programmable Alarm thresholds and Delay times
independently for each Alarm Relay
· Internal constant watchdog of both sensors and
electronic circuits. Failures are indicated on the failsafe System Failure relay
· Test function for all sensors and electronic circuits.
· Designed for rough environments, both regarding
temperature, electric noise interference and humidity.
· Possibility of implementation of customer defined
monitoring algorithms, alowing customers to differ
from their competitors
