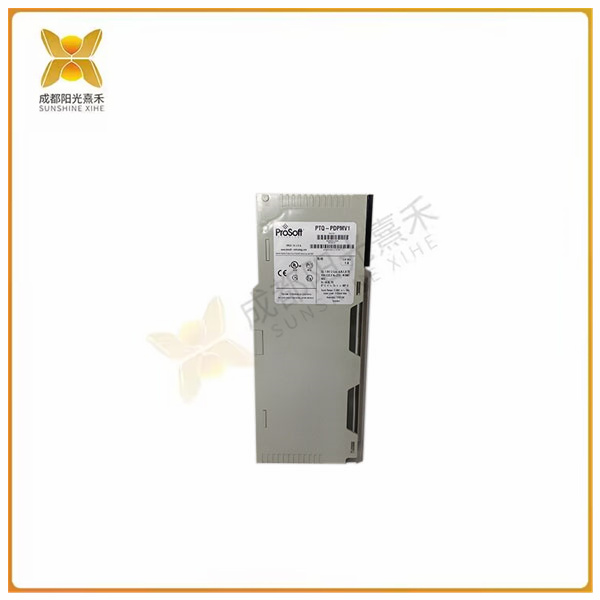

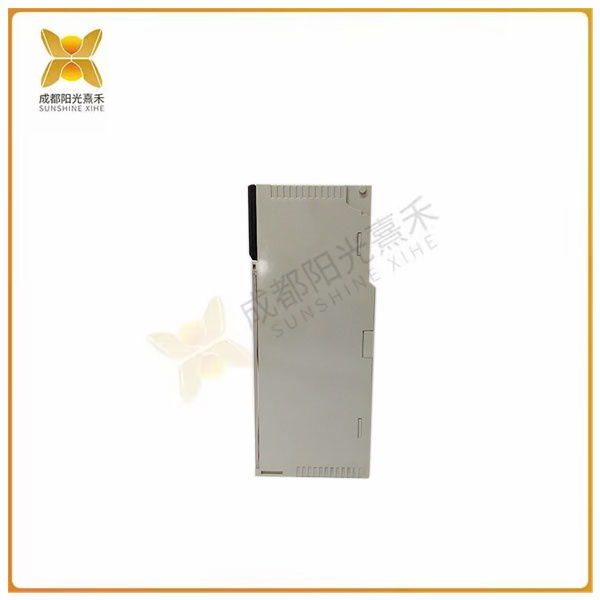

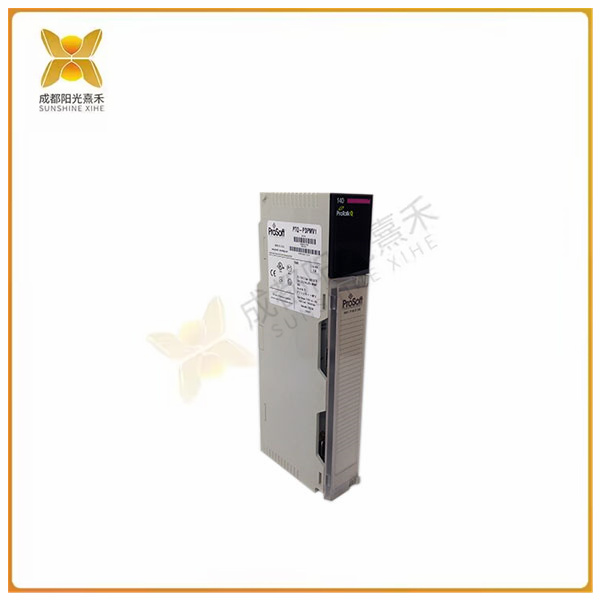

>>>>>型號:PTQ-PDPMV1 主站網絡接口模塊 PTQ-PDPMV1

【功能描述】

PROFIBUS DPV1 主站模塊是一款強大的基于 Quantum? 處理器平臺的通信接口模塊。該模塊經授權開發，集成了專利背板技術，能夠與處理器進行高效的數據交換。

該模塊支持完整的 Profibus-DP 主站規格，符合 IEC 61158 標準。非循環參數數據可通過類別 1 或類別 2 的 DPV1 服務進行傳輸，從而使處理器通過該模塊與支持 PROFIBUS DPV0/V1 協議的從站設備輕松實現通信。

該模塊在 PROFIBUS 網絡和處理器之間完成協議轉化和數據傳輸?shù)臅r(shí)候被視為系統本身的輸入/輸出模塊。處理器的數據傳輸與 PROFIBUS 網絡上的 I/O 數據傳輸異步。

特性 優勢

易于配置和管理

可以利用 ProSoft Configuration Builder，用于設計、配置和監視 PROFIBUS 網絡

可以采用 PROFIBUS DPV1 主站 FDT (現場設備工具) 通信 DTM (PROFIBUS comDTM) 軟件，用于連接任何兼容的 FDT 軟件的載體、FDT 設備 DTM 和適用的 PROFIBUS 從站設備

可通過以太網接口配置 PTQ 模塊和 PROFIBUS 網絡

獲得業內認可

具有 Schneider Electric CAPP (施耐德電氣自動化合作伙伴聯盟計劃) 認證

獲得 PROFIBUS 貿易組織 (PTO) 認證

經久耐用，穩定可靠

該模塊基于西門子 ASIC ASPC2 Step E 協議芯片，并采用英飛凌 C165 微處理器

固件可通過閃存升級

符合 Unity HEC 熱備用功能規范。

每個機架支持最多 6 個 PTQ PDPMV1 模塊 (最多 4 個用于實施熱備情況下使用)

支持?jǐn)U展診斷數據、報警指示和確認處理、組播和廣播報文 (DPV1)

>>>>>型號:PTQ-PDPMV1 主站網絡接口模塊 PTQ-PDPMV1

【英文介紹】

The PROFIBUS DPV1 master module is a powerful communication interface module based on the Quantum? processor platform. Developed under license, the module integrates patented backplane technology to enable efficient data exchange with the processor.

The module supports the full Profibus-DP master station specification, according to IEC 61158. Acyclic parameter data can be transmitted through the DPV1 service of Class 1 or Class 2, allowing the processor to easily communicate with slave devices that support the PROFIBUS DPV0/V1 protocol through this module.

This module is regarded as the input/output module of the system itself when the protocol conversion and data transmission between the PROFIBUS network and the processor are completed. The data transfer of the processor is asynchronous with the I/O data transfer on the PROFIBUS network.

Characteristic advantage

Easy to configure and manage

ProSoft Configuration Builder can be used to design, configure, and monitor PROFIBUS networks

The PROFIBUS DPV1 master FDT (Field Equipment Tool) communication DTM (PROFIBUS comDTM) software can be used to connect any compatible FDT software carrier, FDT device DTM and applicable PROFIBUS slave device

PTQ modules and PROFIBUS networks can be configured via an Ethernet interface

Gain industry recognition

Certified by Schneider Electric CAPP (Schneider Electric Automation Partner Alliance Program)

Certified by the PROFIBUS Trade Organization (PTO)

Durable, stable and reliable

The module is based on the Siemens ASIC ASPC2 Step E protocol chip and uses the Infineon C165 microprocessor

Firmware can be upgraded via flash memory

Conforms to the Unity HEC Hot Standby function specification.

Supports up to 6 PTQ PDPMV1 modules per rack (up to 4 for hot backup)

Support for extended diagnostic data, alarm indication and acknowledgement processing, multicast and broadcast messages (DPV1)
